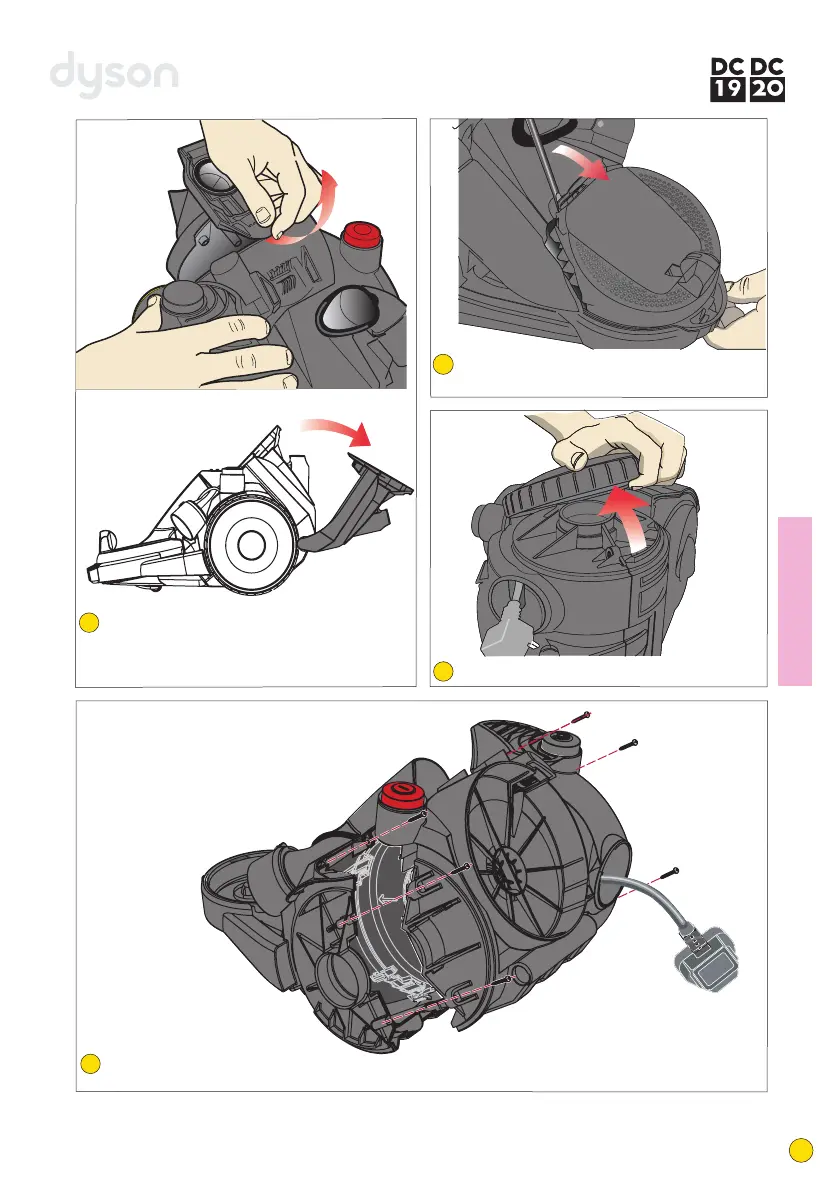

Unclip the post filter cover catch using a flat bladed
screwdriver. Carefully remove the cover and filter.
Unclip the pre-filter cover from the locating point
on the upper motor cover (UMC). Pull the pre-filter
cover away from the machine until it releases from
the hinge points. Remove the pre-filter assembly.
Firmly pull the wheels away from the main body.
Remove the six screws from the UMC. Pull the cable out slightly and lift the UMC off the Lower Motor Cover
(LMC).
