Fitting notes
Service manual

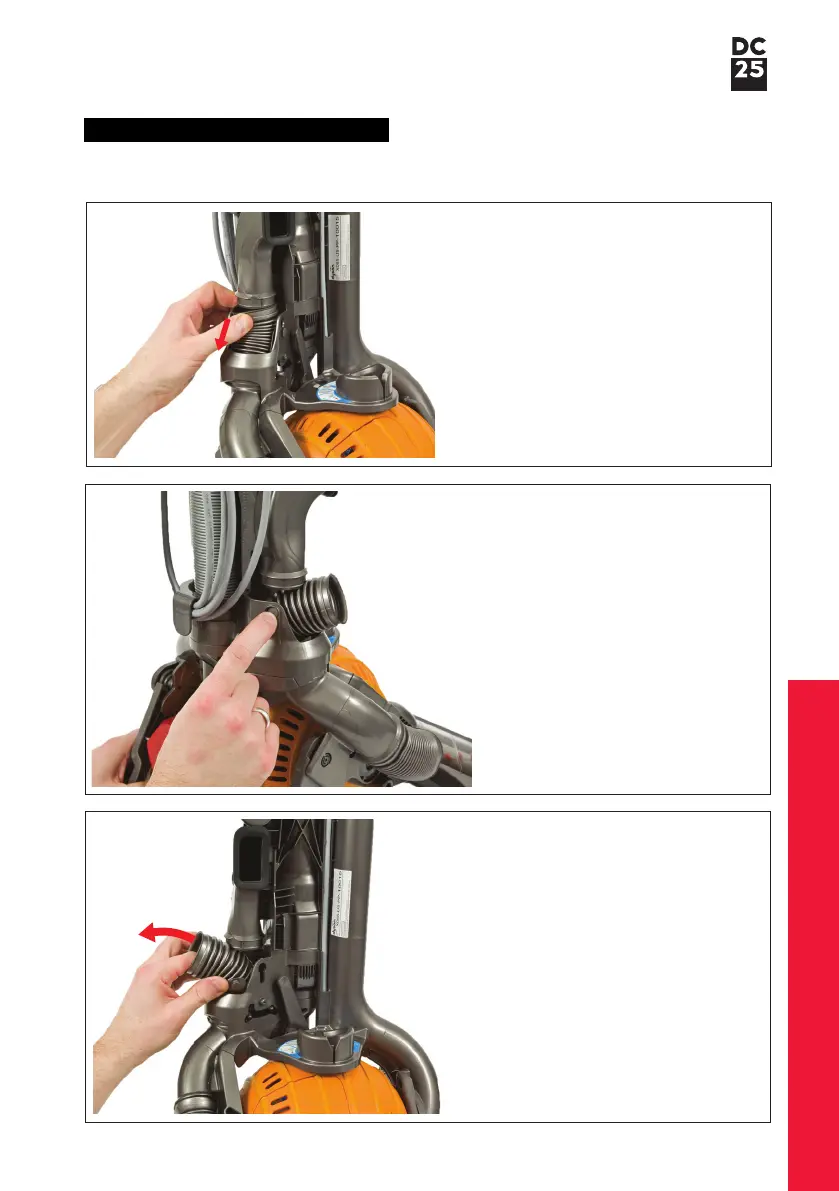

84 Release the top of the valve hose
assembly from the side of the duct
assembly.
85 Remove the rear retaining lug
from the valve.
86 Remove the second retaining lug.
Twist the hose and remove.
Valve hose replacement-removal
Before continuing the following parts should be removed as previously shown:
Valve wheel (Page 33)
