Fitting notes
Service manual
40

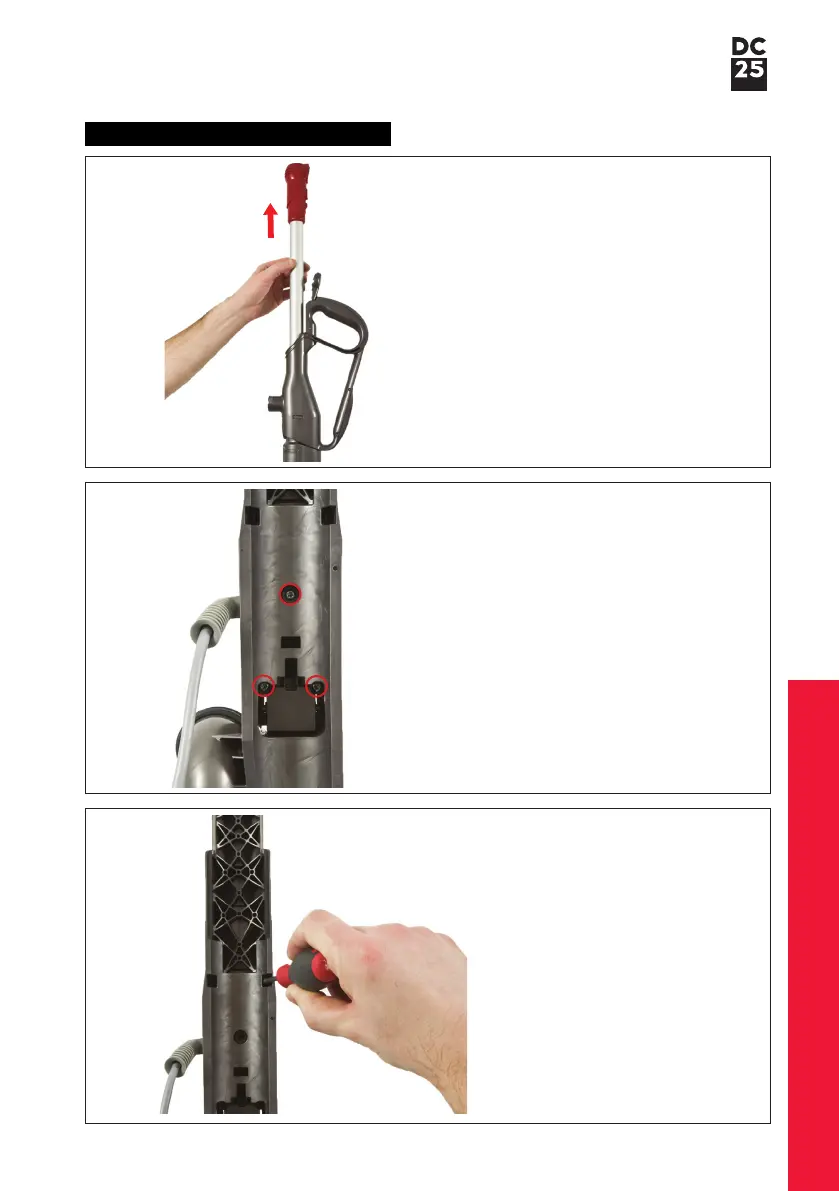

100 Remove the wand assembly from
the product.
101 Undo the three screws in the rear
of the duct assembly.
102 Using a screwdriver release the
catches on the back of the switch
cover.
Switch and powercord - removal
