Fitting notes
Service manual

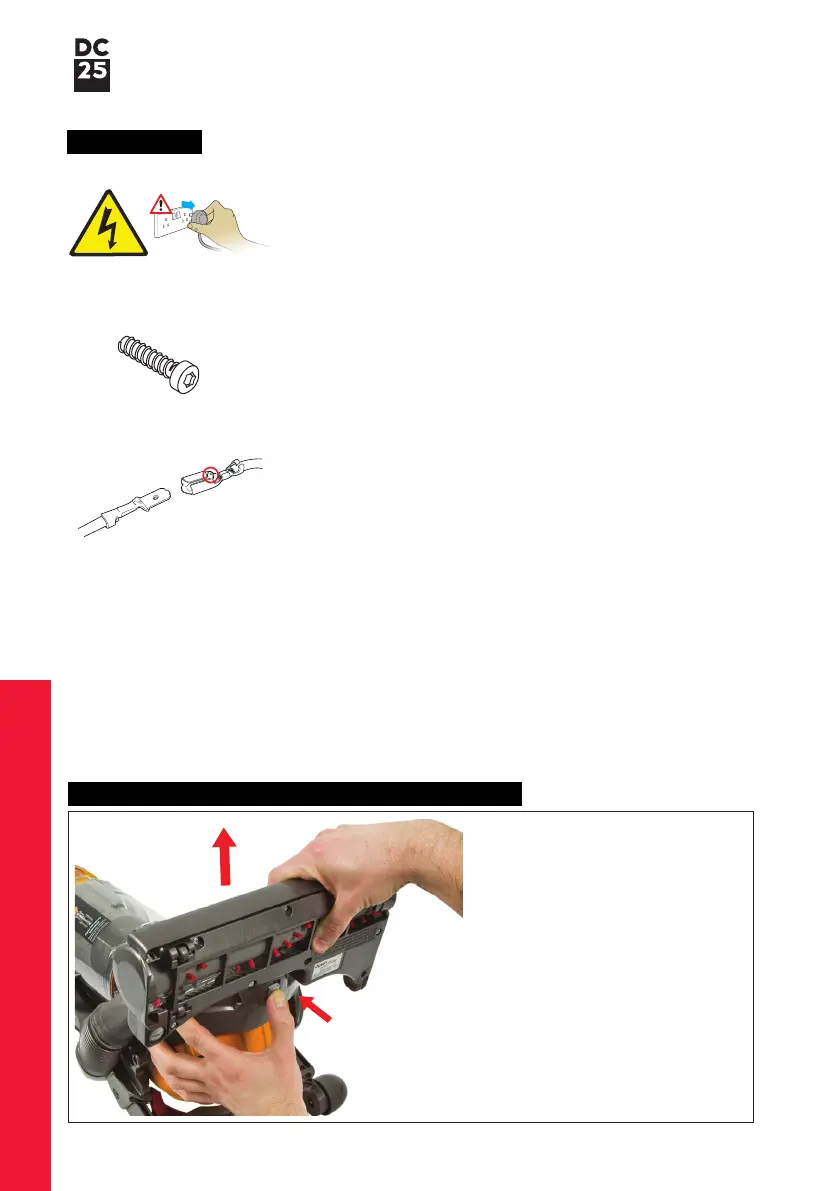

General notes
Disconnect the machine from the electrical outlet at all
times during repair and test. Failure to do so could result
in electric shock or personal injury.
Some female terminal clips used in DC25 contain a locking
mechanism. The release pip will need to be activated before
separation from the male terminal can occur.
All screws used in DC25 are Torx T15 unless otherwise stated.
Motor and yoke assembly replacement - removal
Recommended tools to repair DC25:
Torx T-15 screwdriver
Philips screwdriver
Large flat bladed screwdriver
Terminal screwdriver
Long/needle nosed pliers
05
01 Slide the catch on the underside
of the cleaner head.
Remove the cleaner head from
the product.
Wire colours may vary between territories.
