Fitting notes
Service manual
06

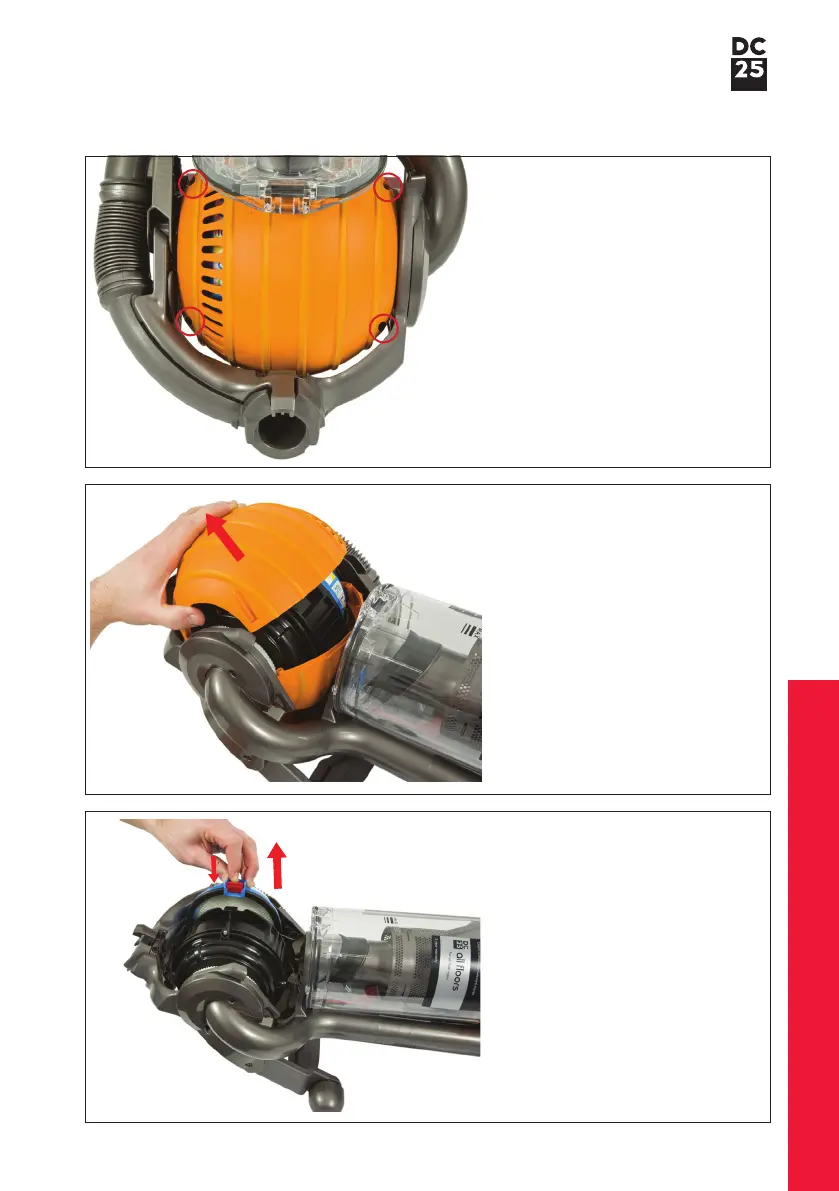

02 Remove the four screws from the
ball assembly.
03 Remove the two halves of the ball
assembly.
04 Press the release button and
remove the post filter assembly.

Table of Contents

Other manuals for Dyson DC25

Preview: Operating Manual
Operating Manual16 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dyson DC25 and is the answer not in the manual?

Dyson DC25 Specifications

General IconGeneral
TypeUpright
Cyclone TechnologyRoot Cyclone
Ball TechnologyYes
FilterHEPA
Bagged/BaglessBagless
Suction Power220 AW
Warranty5 years
Dust Capacity0.32 gallons
