Dyson DC25 Service Manual

Fitting notes
Service manual
07

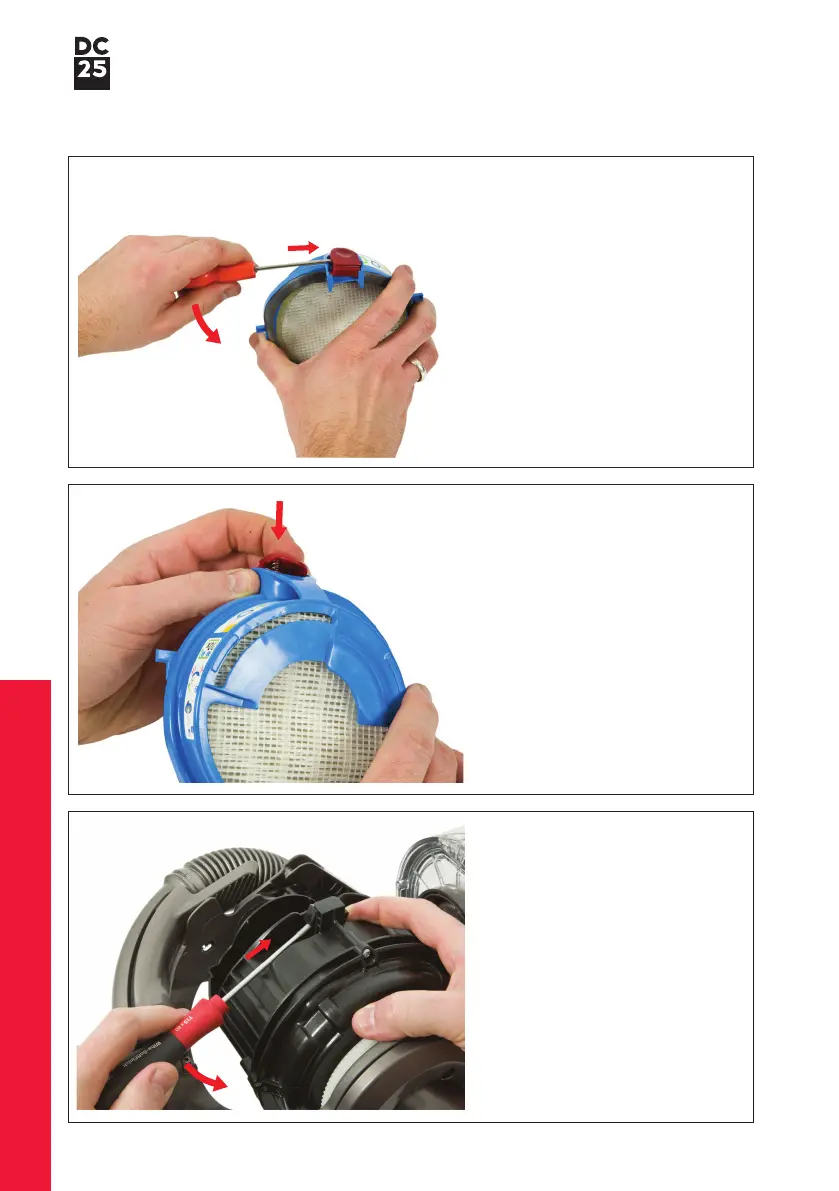

05 If it needs replacing the post filter
button can be prised out of the
post filter assembly.
06 To fit, align the button onto the
spring and push firmly into the
retainers.
07 If the motor bucket spring cap
needs replacing prise it out of the
motor bucket.

Dyson DC25 Specifications

General

Type	Upright
Cyclone Technology	Root Cyclone
Ball Technology	Yes
Filter	HEPA
Bagged/Bagless	Bagless
Suction Power	220 AW
Warranty	5 years
Dust Capacity	0.32 gallons
