• (Ø60 / 100 mm) Room Sealed Flue Set Accessories Figure-10)
If the length of the flue is insufficient, additional flue accessories should be ordered from E.C.A
authorized services. Do not use different brands and types of flue set parts.

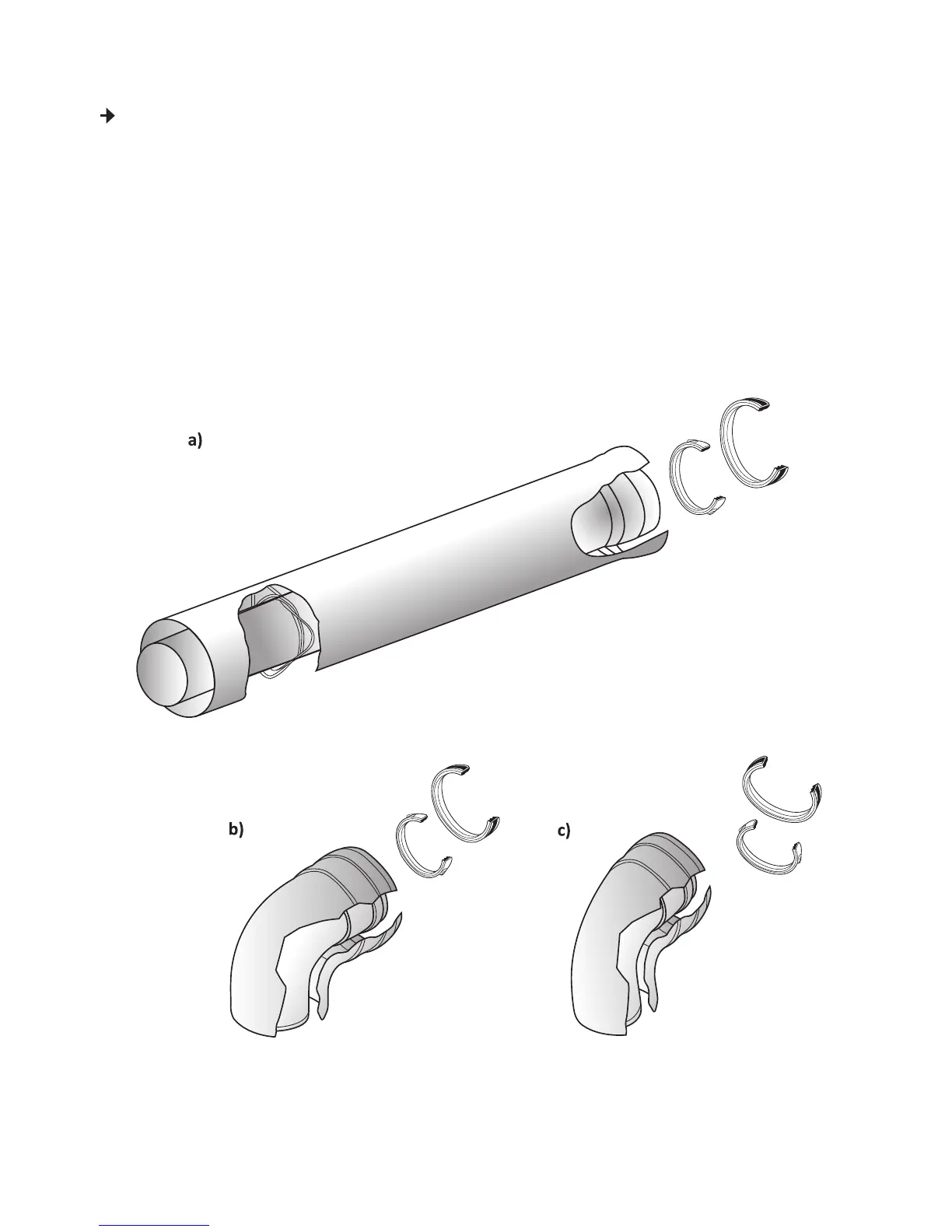

- - Horizontal Room Sealed Flue Kit Accessories (Figure 10)
a) a. L=500mm extension pipe (Ø60/100mm) (7006951562)
L= 1000mm extension pipe (Ø60/100mm) (7006951561)
b) 90° elbow (Ø60/100mm) (7006951560)
c) 45° elbow (Ø60/100mm) (7006951559)
14
Figure 10
