E.C.A. KRONOS KR 24 HM - Packaging

- The appliance is delivered in a carton box with dimensions of 865 x 470 x 405 (HxWxD) mm,
supported by upper and lower styrofoams (Figure 2a).
The necessary parts for installation of the appliance (wall hanger bracket, 5 gaskets for water and gas
connections, 3 dowels and 3 fixing screws) are placed on the top styrofoam.
The parts shown in Figure 2b are optional. You can order these optional parts below from an
authorized E.C.A dealer.
• Mounting Bracket
• Central heating water connection pipes (3/4”, 2 pieces)
• Domestic water connection pipes (1/2”, 2 pieces)
• Gas Inlet Pipe (3/4”, 1 piece)
• Nipples (1/2”, 2 pieces – 3/4”, 3 pieces)
• 6 pieces of 3/4” gaskets and 4 pieces of 1/2” gaskets (for water and gas connections)
CAUTION: During shipment and storage of the appliance,
warnings on the cardboard packaging should be considered.

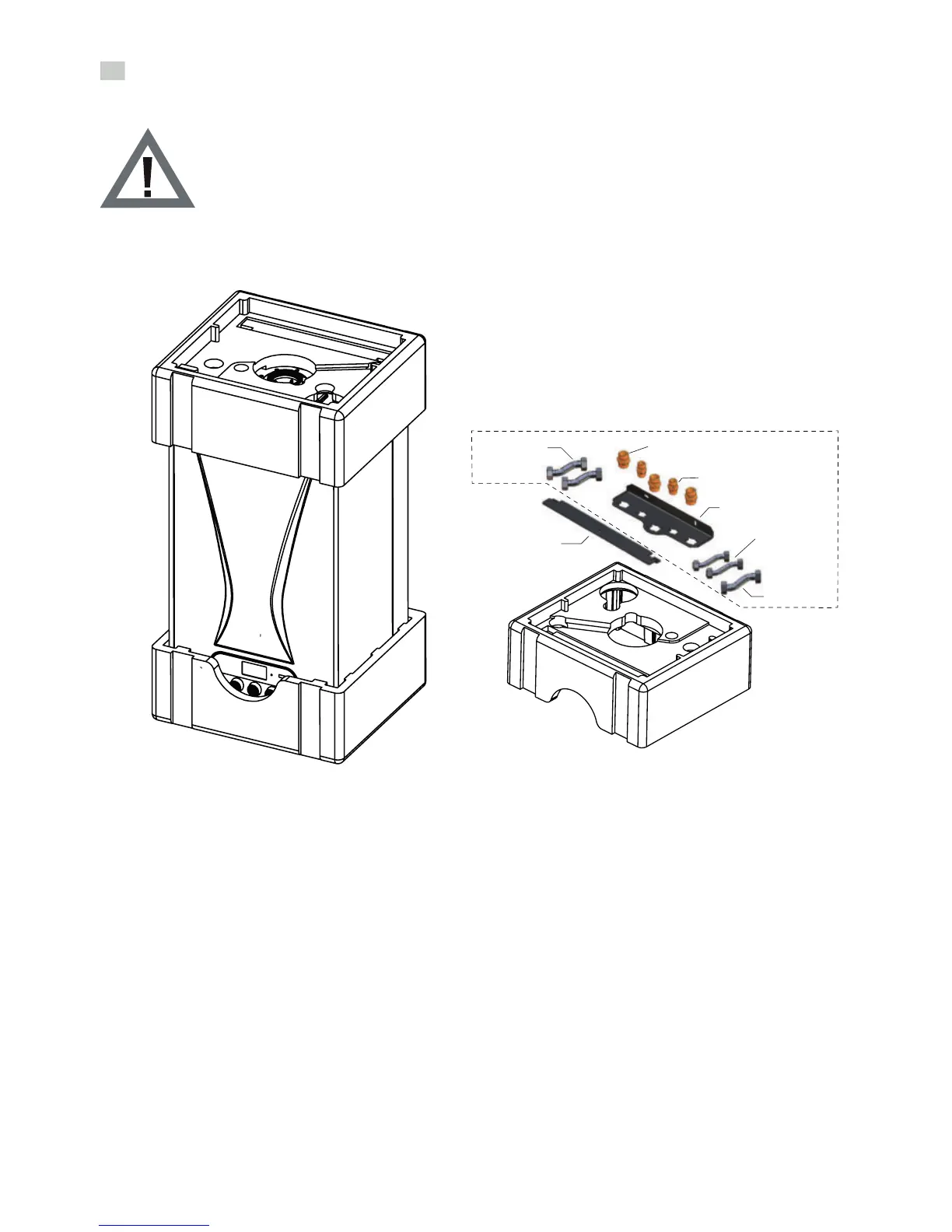

Figure 2a Figure 2b
Figure 2
Nipple 3/4 ‘’
6
Optional:
PACKAGING
Central heang connecon
pipes
Hanger Bracket
Nipple ½ ‘’
Mounng Bracket
Domesc Water
Connecon Pipes
Gas Inlet Pipe
