E.C.A. Proteus Plus - Room Sealed Fan Assisted Operation; Connection by two separate ducts

Room Sealed Fan Assisted Operation
Connection by two separate ducts
Maximum length of the air ducts and flue ducts are seen in Table 4. The air ducts and flue
ducts must be parallel (fig. 15).

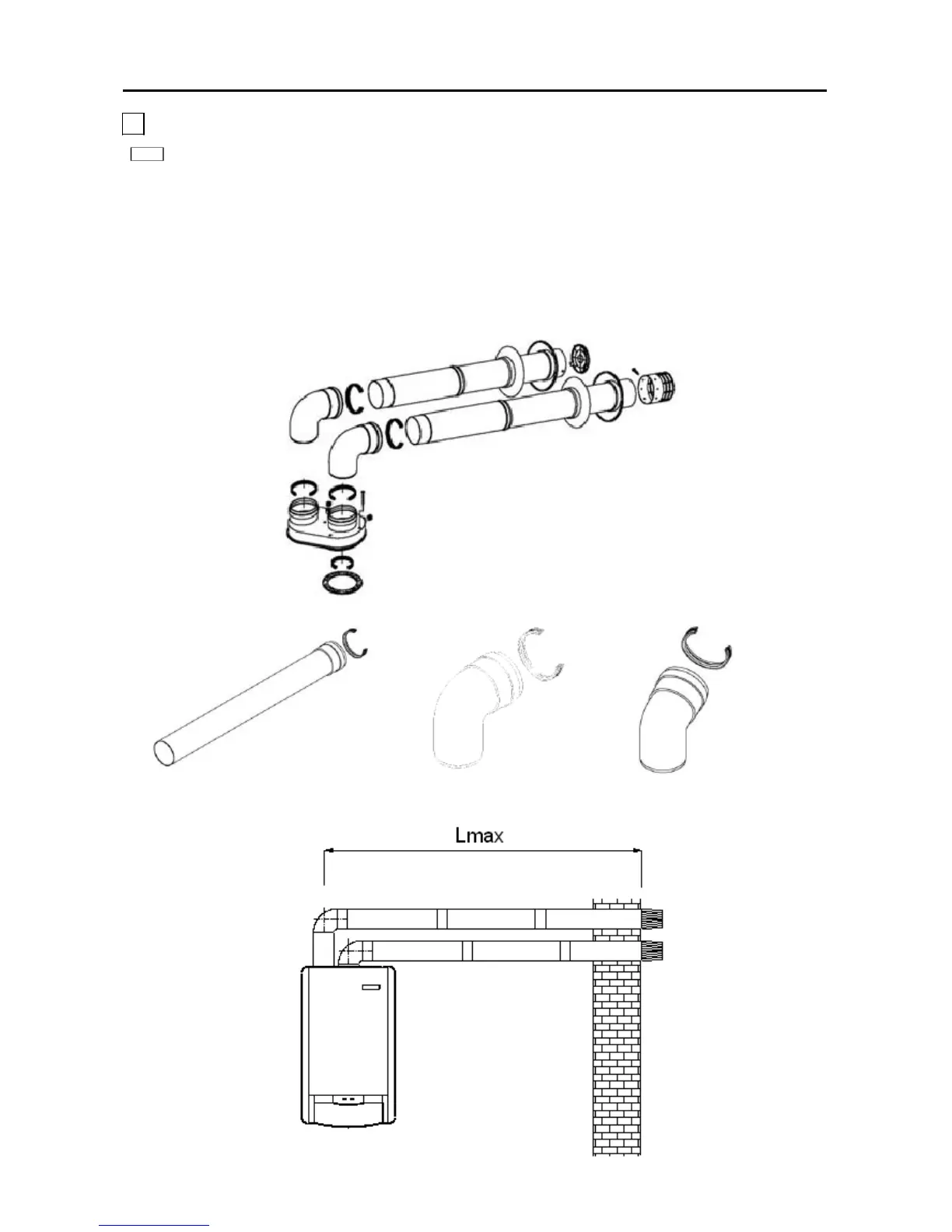

- The twin air/flue kit and its accessories (fig. 14):
a) The twin air/flue kit
b) Extension, L=500 mm, 80 mm
Extension, L=1000 mm, 80 mm
c) 90
0
elbow, 80 mm
d) 45
0
elbow, 80 mm
a)
b)
c)
d)
fig. 14
fig. 15
16
b
