Electrical installation should be made according to the national and local instructions.
The boiler must be earthed and a standard 230 V AC - 50 Hz supply is required.
WARNING: Disconnect power supply to prevent electrical shock before connecting
the electricity supply.
WARNING: If the supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent

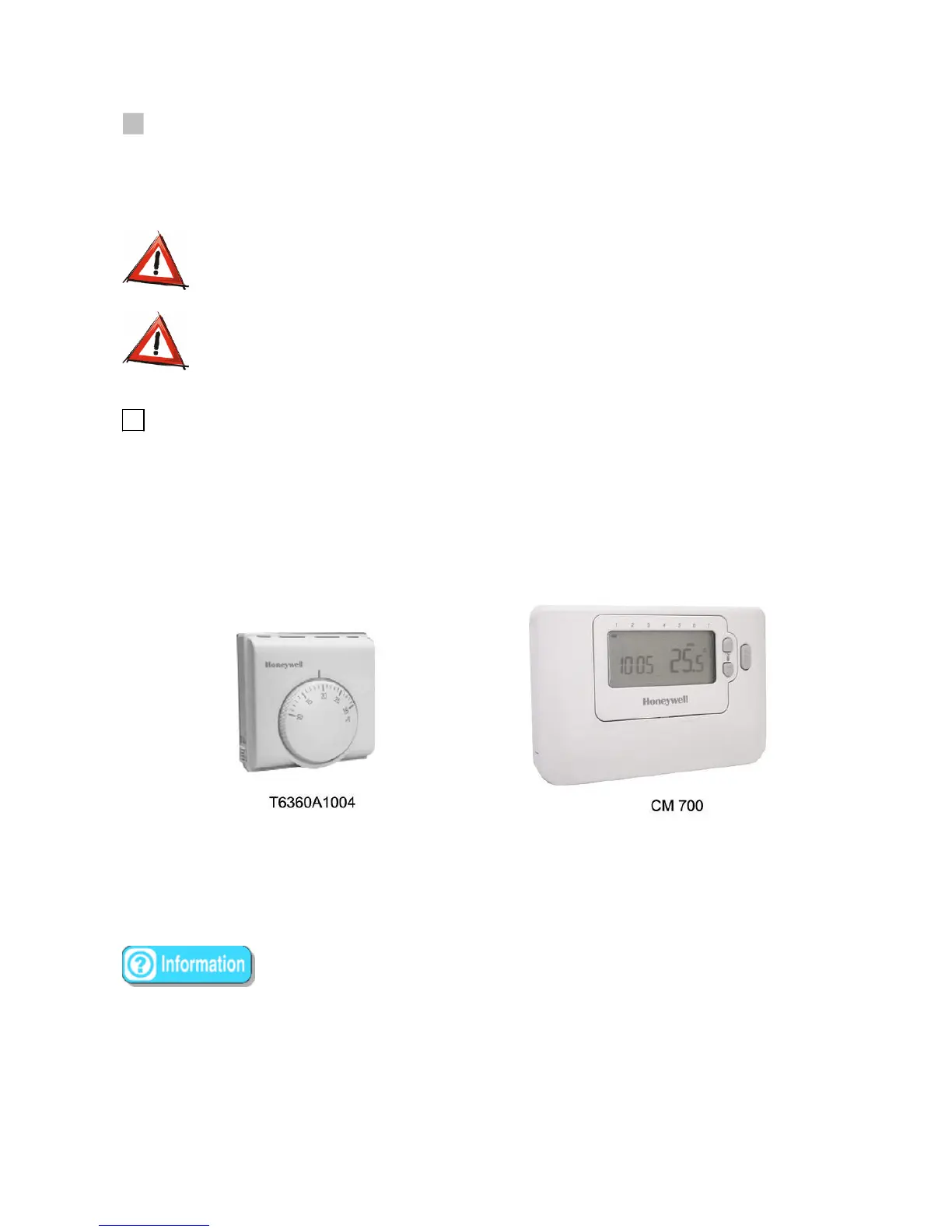

Room Thermostat Connection (Optional)
It is possible to use one of the 2 different type of Honeywell room thermostats together with your
appliance optionally, for providing temperature control of the system.
Room thermostat (T6360A1004)
Programmable digital r
oom
thermostat (
T6651E
1011)
a simple room thermostat
+10
0
C … +30
0
C
7-day program
Up to 4 level changes per day
Programmable frost protection
: The brand name of the room thermostat must be Honeywell, otherwise it
may cause failure in your appliance. In that case, no responsibility will be
accepted.
- Room thermostat connection is seen in the wiring diagrams (page-7, fig.1).
- Disconnect the bridge between pole number 3 and pole number 4 of terminal number 21.
- Connect the room thermostat connections to the terminal same poles.
To Next Page
