.. GAS LEAK TEST
);- Apply a rich soap and water solution to the surface of all pipe connections. Bubbles indicate a gas
leak
);-
);-
);-
In case of gas leak, tighten the pipe connection.
Check the pipe connection again for gas leak.
Replace the part/parts if gas leak can not be stopped.
A CAUTION: Keep soap and water solution away from electrical connections during
gas leak test .
FAULT/ERROR FINDING
Several checks are included to protect the boiler and its environment. In case of error condition, the
error is displayed by the alarm LED's on the display panel (Table 9) and heat demands will
bedisabled
.. Error conditions can be divided in 2 groups:lockout conditions and blocking conditions.
a) Lockout conditions, flame failure lockout, high limit lockout and APS error, can only be cleared
by turning the status knob (P1) to Offi'Reset position and wait for 5 seconds then back to previous position.
If the lockout condition continius after the reset , check the gas inlet and supply valves. If the problem
continues call qualified service.
b) Blocking conditions, CH NTC error (short circuit or open circuit), DHW NTC error (short circuit
or open circuit), and low water pressure, will reset as soon as the cause of the problem disappears. For
example, when CH sensor is out of operating range, blocking condition will be generated and keep the
system off until the sensor is within operating range again.
Table 10
29

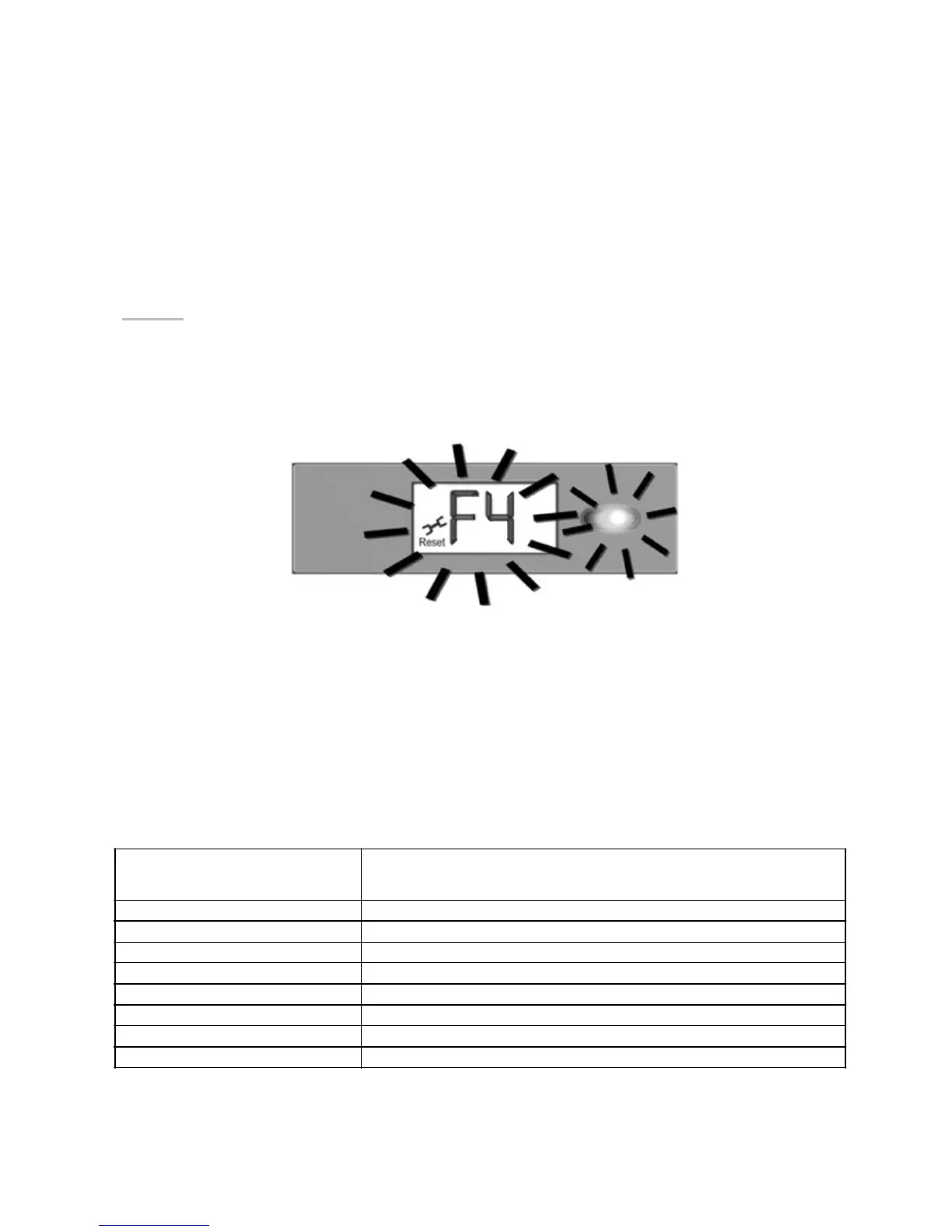

ERROR I FAILURE CODES
ERROR/FAULT DEFINATIONS
Fl
Lockout for overheating
F2
DHW probe damaged
F3
Primary circuit probe damaged
F4
Lockout (ionization problem)
F5
Air Pressure switch Problem (exhaust thermostat problem)
F6
External Probe damaged
F7
No water pressure
F8
Main voltage failure
