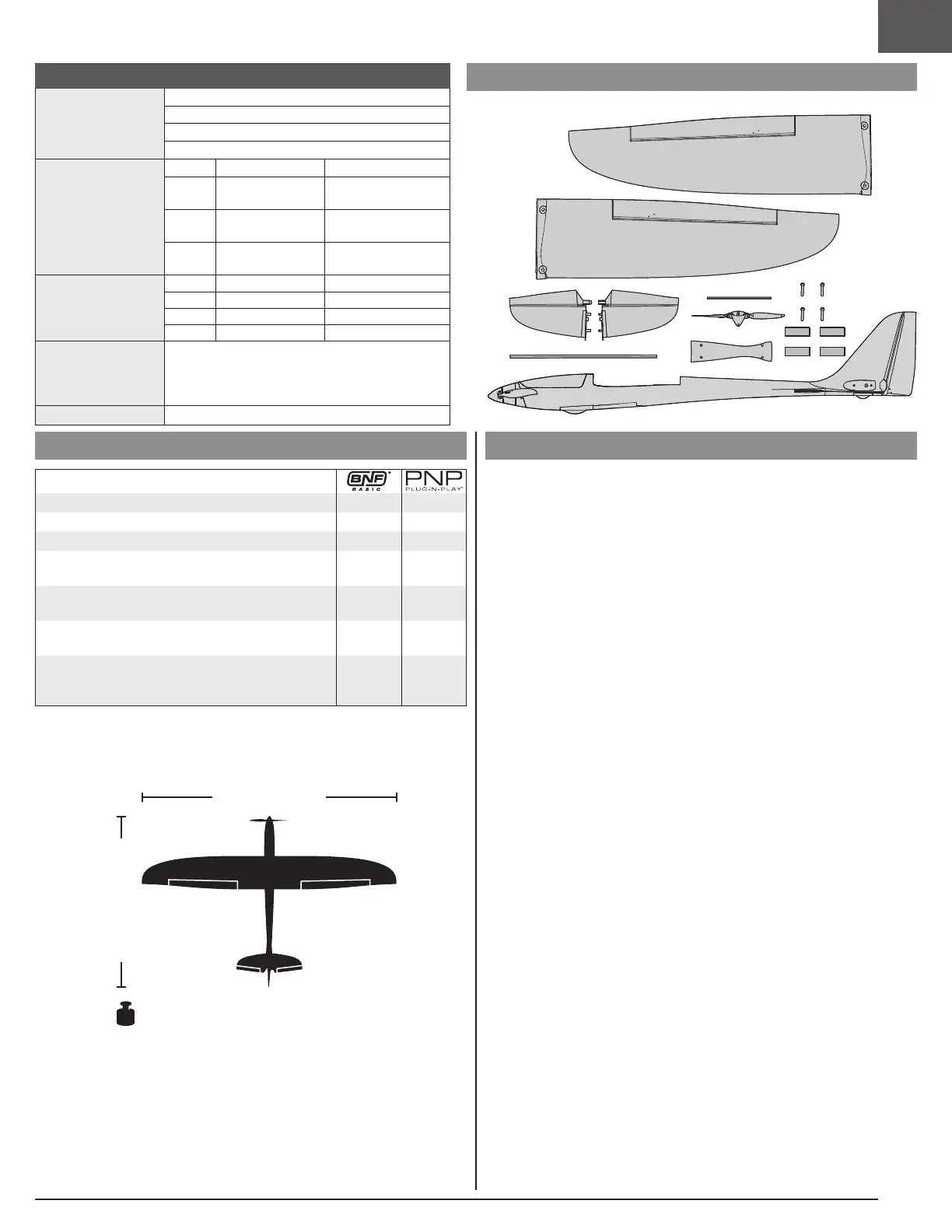

Box Contents
Table of ContentsSpecifications
If you own this product, you may be required to register with the FAA.
For up-to-date information on how to register with the FAA, please visit
https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage,
visit knowbeforeyoufly.org/.
Preflight ................................................................................................................. 4
Transmitter Setup (BNF) ......................................................................................... 4
Model Assembly ...................................................................................................4
Model Assembly ...................................................................................................5
Model Assembly (Continued) ..................................................................................6
PNP Receiver Selection and Installation .................................................................6
Battery Installation and ESC Arming .......................................................................7
Center of Gravity (CG) ............................................................................................7
Transmitter and Receiver Binding / Enabling and Disabling SAFE Select ................. 8
SAFE Select Switch Designation.............................................................................9
Integrated ESC Telemetry ....................................................................................... 9
Control Surface Centering ......................................................................................9
Control Surface Direction .....................................................................................10
AS3X Control Direction Test (BNF Basic) ............................................................... 10
Dual Rates and Control Throws ............................................................................11
In Flight Trimming ................................................................................................11
Flying Tips and Repairs ........................................................................................11
SAFE Select Flying Tips ........................................................................................ 12
Post Flight............................................................................................................12
Power Components Service .................................................................................12
Troubleshooting Guide AS3X ................................................................................13
Troubleshooting Guide .........................................................................................13
Replacement Parts ............................................................................................... 14
Recommended Parts ............................................................................................ 14
AMA National Model Aircraft Safety Code .............................................................15
Limited Warranty .................................................................................................16
Warranty and Service Contact Information ...........................................................16
FCC Information ................................................................................................... 17
IC Information ......................................................................................................17
Compliance Information for the European Union ...................................................17
Quick Start Information
Transmitter Setup
1. Blank (Acro) Model
2. Wing Type: Normal
3. Servo Reversing: All Channels Normal
4. Travel Adjust (All Surfaces): 100%
Dual Rates*
High Rate Low Rate
Aileron
p = 15mm
q = 15mm
p = 10mm
q = 10mm
Elevator
p = 10mm
q = 10mm
p = 7mm
q = 7mm
Rudder
= 18mm
= 18mm
= 13mm
= 13mm
EXPO
(Soft center)
High Rate Low Rate
Aileron 10% 5%
Elevator 15% 5%
Rudder 10% 5%
Center of Gravity (CG)
2-1/4” - 2-3/4” inches (57-71mm) back from the
leading edge,
measured at the wing root
Flight Timer Setting 5 minutes
Weight:
22.9 oz (650 g)
59 inches (1500mm)
39.6 inches (1005mm)
Motor: 3226-970Kv Brushless Outrunner (SPMX1200)
Installed Installed
ESC: 30-Amp BEC Brushless ESC (EFLA1030E)
Installed Installed
Servos: (4) 9g Mini Servo (SPMSA381)
Installed Installed
Receiver: Spektrum
™
AR637TA 6-Channel Sport
Receiver (SPMAR637A)
Installed
Required to
Complete
Battery:
11.1V 3S – 14.8V 4S, 1200mAh – 2200mAh Li-Po
Required to
Complete
Required to
Complete
Battery Charger:
3-4 cell Li-Po battery balancing charger
Required to
Complete
Required to
Complete
Transmitter:
6+ channel, Full-Range 2.4GHz with Spektrum
™
DSM2
®
/DSMX
®
technology and adjustable dual rates
Required to
Complete
Required to
Complete
