23E-flite F-86 Sabre 15 DF ARF Assembly Manual

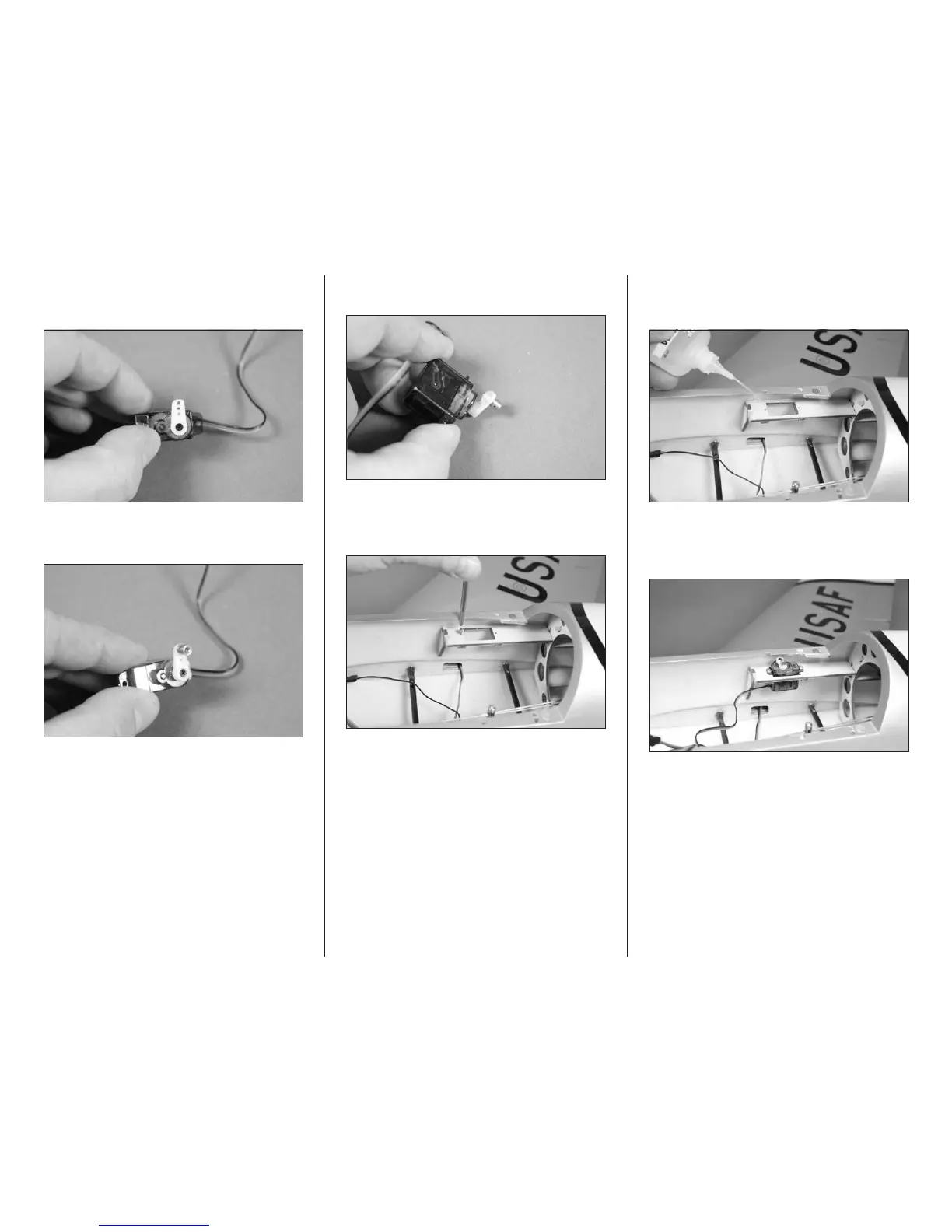

4. Use a hobby knife and #11 blade or side cutters
to remove the excess servo arm so it does not
interfere with the intake tube when it is installed.
5. Insert the micro pushrod connector in the hole. It
should move freely in the hole.
6. Install the nylon backplate on the pushrod
connector to secure the connector to the servo horn.
7. Use a #1 Phillips screwdriver to thread the servo
mounting screw into the two holes for mounting the
elevator servo.
8. Place 2–3 drops of thin CA in each hole to
harden the surrounding wood. This will harden the
wood, making the screws more secure.
9. Secure the rudder servo in the fuselage using
the screws provided with the servo and a #1
Phillips screwdriver.
