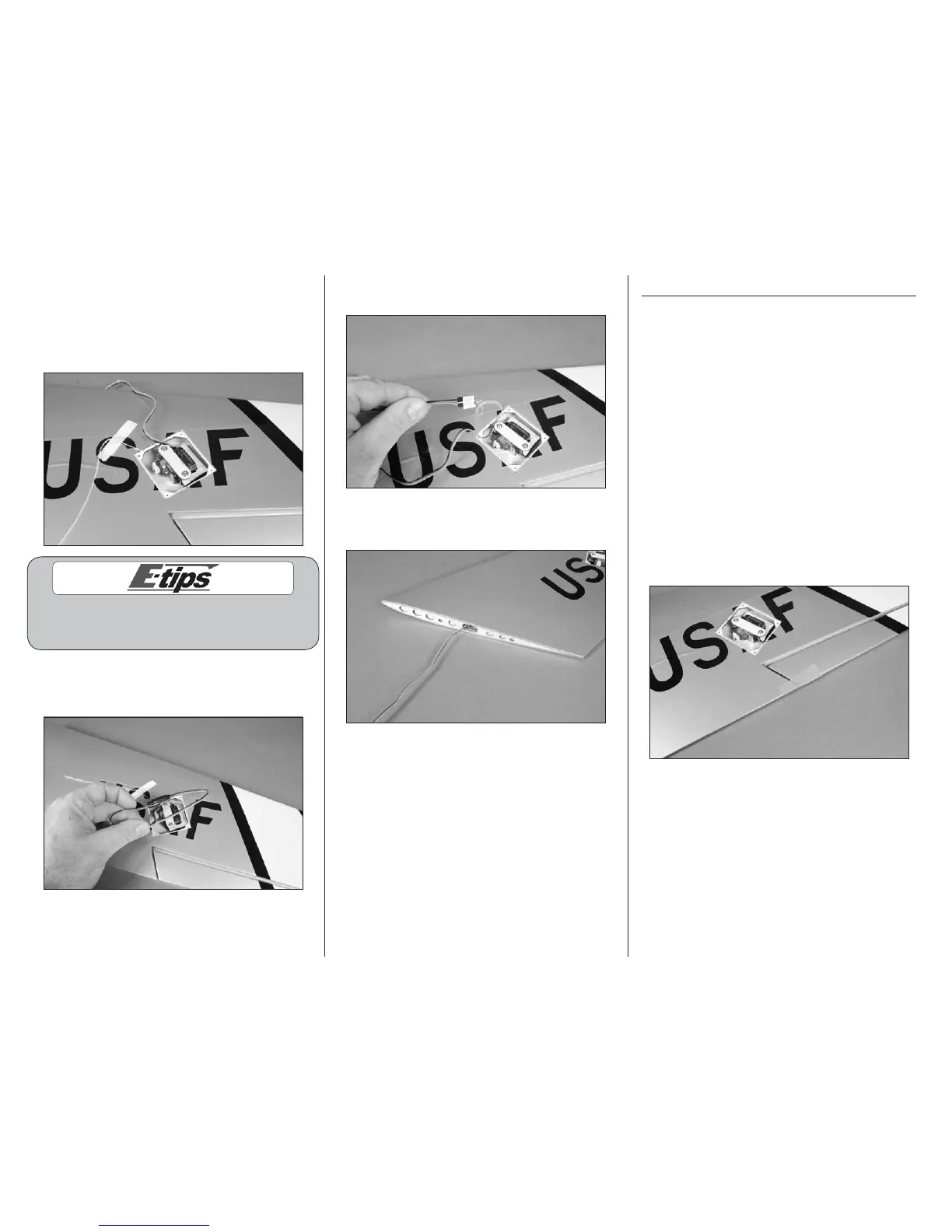

6 E-flite F-86 Sabre 15 DF ARF Assembly Manual
10. Use a #1 Phillips screwdriver and two 2.5mm
x 12 sheet metal screws to secure the servo in the
servo mount using the servo mounting strap. Install
one screw and only turn it one or two turns, then
install the second screw. Tighten the strap with even
pressure at both the front and back of the servo.
Use care when installing the servo mounting strap.
Over-tightening the strap could stress the wing sheeting
and even push the servo through the top of the wing.
11. Use string or dental floss to secure a 9-inch
(228mm) servo extension to the lead from the
aileron servo.
12. Tie the string around the end of the servo lead
as shown.
13. Carefully pull the aileron servo lead through the
wing using the string tied to it in the previous step.
14. Repeat Steps 1 through 13 to install the
remaining aileron servo.
Aileron Linkage Installation
Required Parts
Transmitter Receiver
Aileron pushrod keeper (2)
Aileron pushrod wire, 2
9
/
16
-inch (65mm) (2)
Servo cover (2)
Aileron control horn (2) Clear tape
Required Tools and Adhesives
Side cutters Medium CA
Pin vise Low-tack tape
Felt-tipped pen Hobby knife with #11 blade
Needle-nose pliers Hobby scissors
Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm)
1. Use a small piece of low-tack tape to keep
the aileron centered with the trailing edge of the
wing. This will make the installation of the linkage
much easier.
To Next Page
