AC Power Connections
E-MAX

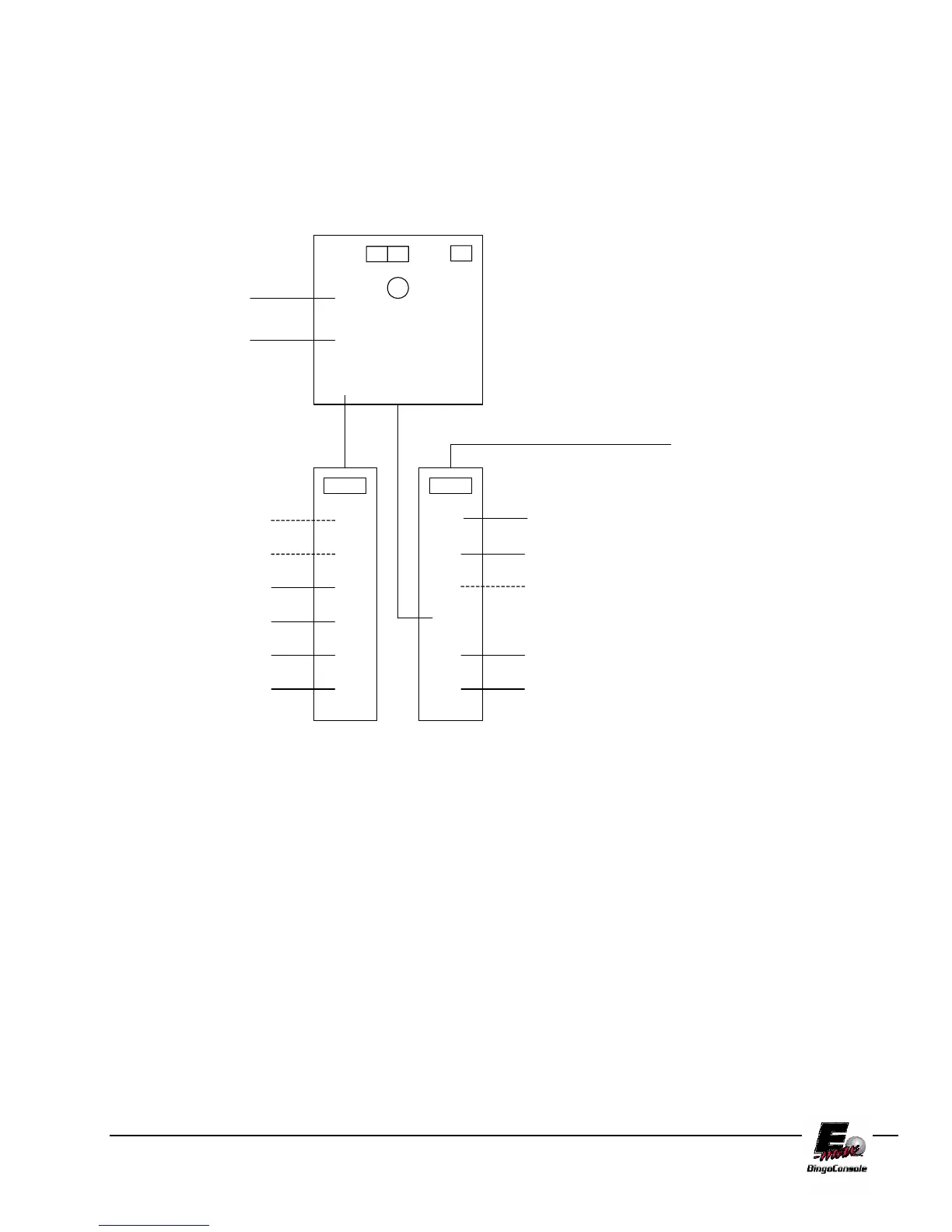

AC POWER CONNECTIONS
OPERATOR
DISPLAY
RF MOD #1
1
3
2
6
5
4
1
3
2
6
5
4
1
3
2
6
5
4
UPS
DELL
OUTLET STRIP #1
(Graphics panel side)
OUTLET STRIP #2
(Operator side)
RF MOD #2
LIGHT
FAN
NETWORK DEVICE #1
DATA ROUTER
BLOWER #1
BLOWER #2
NETWORK DEVICE #2
DON'T USE
PRINTER OR VCR
AC POWER IN
DON'T USE
DON'T USE
DON'T USE
UPS SOCKETS
1,2,3 ARE BACKUP
UPS SOCKETS
4,5,6 ARE NON
BACKUP
POWER
INPUT
