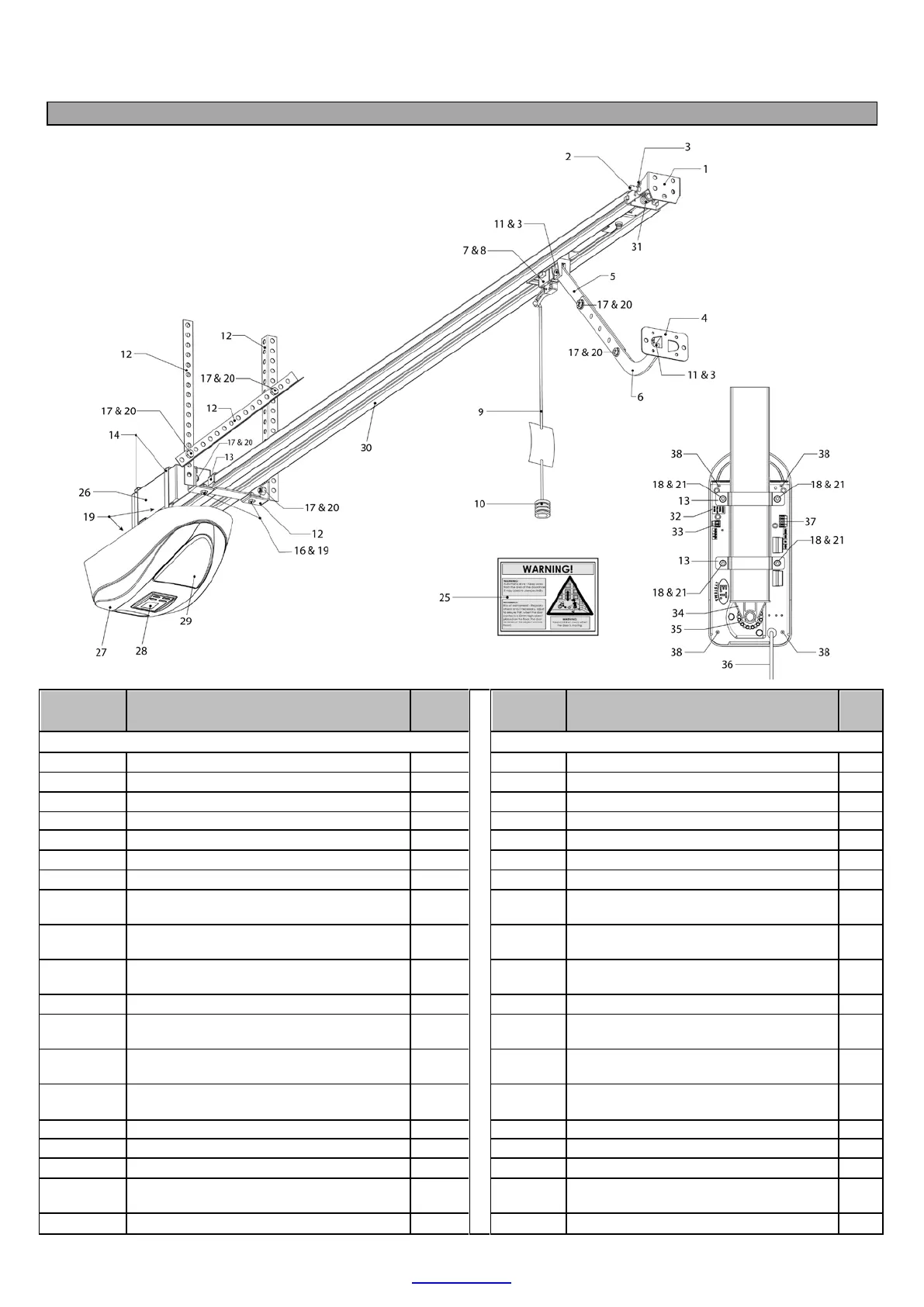

COMPONENT IDENTIFICATION AND DESCRIPTIONS
Diagram
number
Description Qty
Diagram
number
Description Qty
1
Wall mount bracket
1
20
Nylock nuts M8
8
2
Pivot pin 8mm x 90mm
1
21
Flat washers M6
6
3
Cotter pins 1.8mm x 35mm
3
22
Coach screws 8 x 60mm
2
4
Door mount bracket
1
23
Coach screws 8 x 40mm
6
5
Straight link arm
1
24
Wall plugs 10mm
2
6
Curved link arm extension
1
25
W arning sticker
1
7
Emergency release assembly
1
26
24Vdc 3.5A/h Battery (Optional extra)
1
8
Round head machine screws M6 x
20mm
4 27 Motor-head 1
9
Emergency release cord 1.1m with
warning tag
1 28 Control panel dashboard 1
10
Emergency release cord plastic
knob/handle
1 29 Courtesy light diffuser lens 1
11
Pivot pins 8mm x 25mm
2
30
Drawbar
1
12
Hanging strap drawbar attachment
bracket
1 31
Drawbar spring dampener and shock
absorber
1
13 Drawbar brackets 3
32
Battery connection beneath dust
cover sticker
1
14 Battery straps 2
33
E-Coms connection plug with dust
cover 1
15
Hanging straps 1m
3
34
Drawbar back-end
1
16
Machine bolts 10mm head M6 x 15mm
2
35
Splined sprocket with chain
1
17
Machine bolts 14mm head M8 x 15mm
8
36
Household mains cord 1.5m
1
18 Machine nuts M6 4
37
Auxiliaries connection plug with dust
cover 1
19
Nylock nuts M6
6
38
Cover screws
4
