HARDWARE INSTALLATION
Trackless tip-up door
INSTALLING THE WALL MOUNT BRACKET (See page 5 for component identification)
From the top edge of the door in the closed position, measure 275 – 300mm perpendicular to the top
edge of the door. Install the wall mount bracket at this height where it is positioned above the centre of

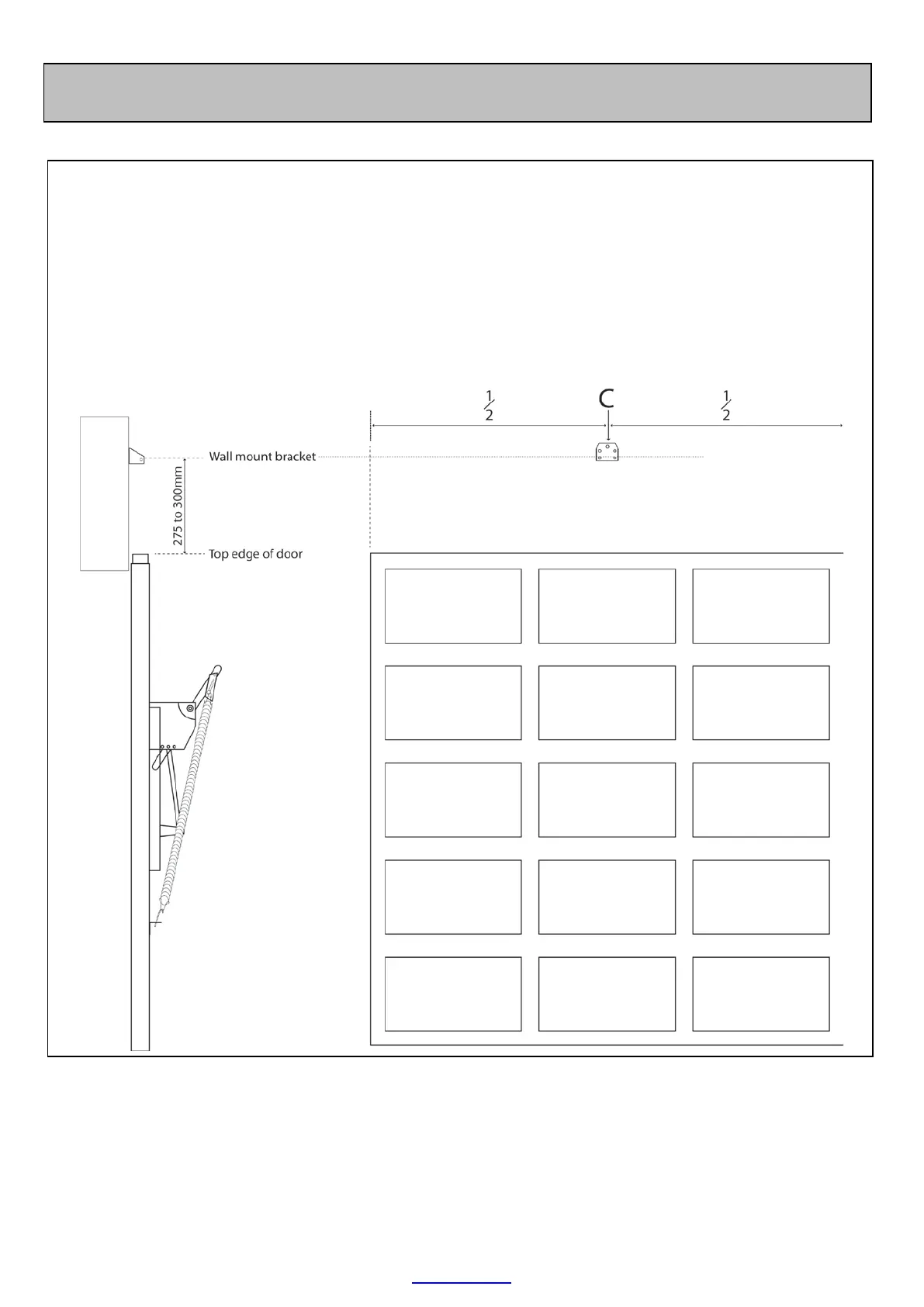

the door as shown in the diagram below.
NB!!! The wall mount bracket is one of the components that will take the majority of the load in a garage
door automation system. Extra care needs to be taken to ensure that the bracket is securely fastened.
Whatever the bracket is fastened to, must also withstand a force equal to the force of the door when the
spring balancing of the door is removed. For example if a balancing spring snaps.
