enclosure. Install the new element in the same way the
old filter was removed, being sure that the filter seal is
correctly installed. Insert cover into the lower portion of
the enclosure and swing it up into place. Squeeze hous-
ing together and secure with top clips. Be sure cover fits
under tabs and all clips are fastened securely.
Cleaning the Air Filter Element
Do not use compressed air to clean the
air filter; doing so will damage the filter
which may result in damage to the engine.
If the element is in acceptable condition, loose dirt may
be removed by tapping the filter lightly. Do not use oil on
the filter element or any part of the unit.
LUBRICATION
Do not use more than three (3) pumps
of grease in any grease fitting at any
one time. Excess grease may cause grease seals to fail or
grease migration into areas that could damage components.
Putting more than three pumps of grease in a grease fit-
ting could damage grease seals and cause premature
bearing failure (Ref. Fig. 35 on page 21) (Ref. Fig. 36 on
page 21).
SPARK PLUGS
Tool List Qty. Required
Spark plug socket, 13/16", 1/2" drive........................... 1
Ratchet, 1/2" drive.......................................................1
Plug gauge, wire type..................................................1
Anti-seize compound................................................AR
Torque wrench, 1/2" drive, ft. lbs. ................................1
Use care not to over-tighten the plug.
Over-tightening can cause damage to
the aluminum cylinder head threads.

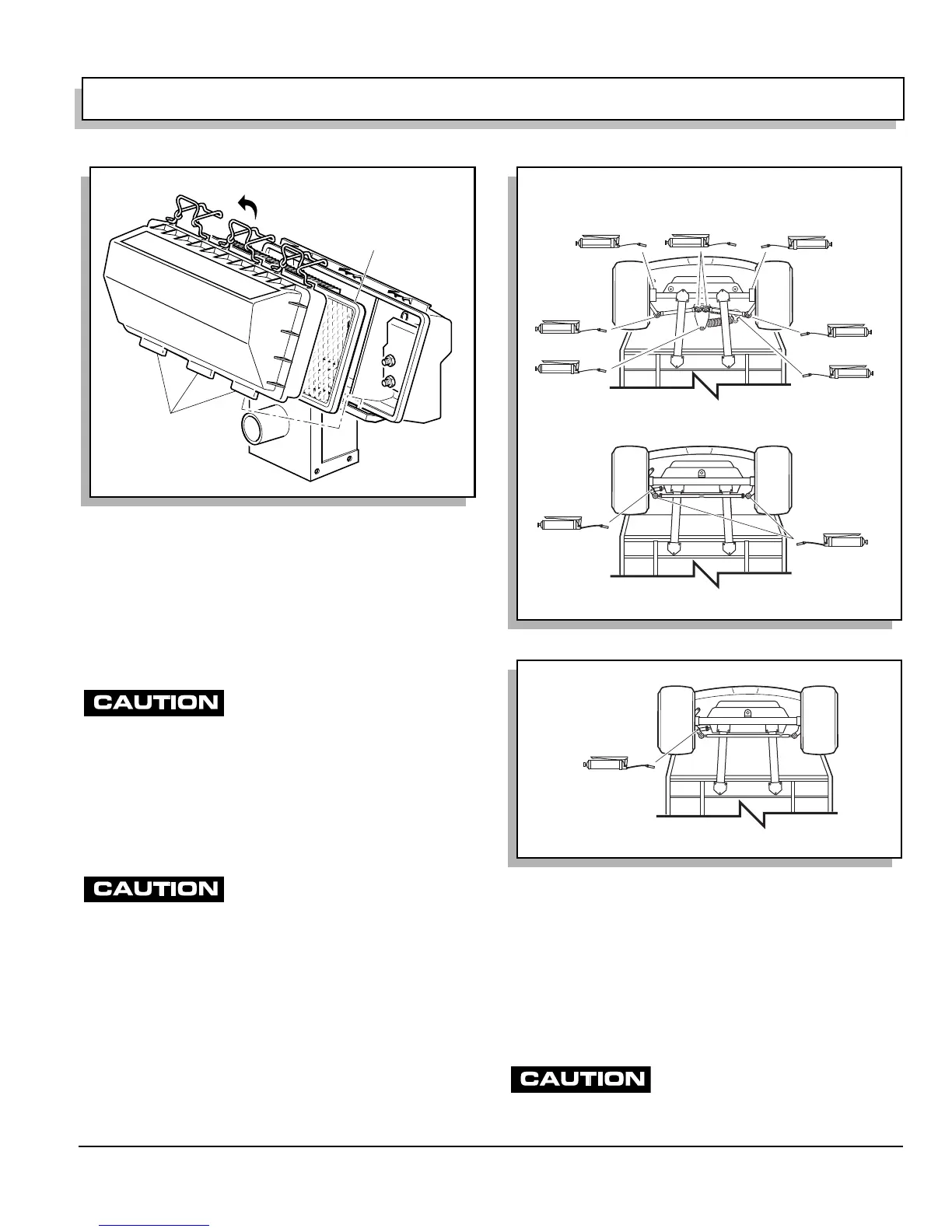

Fig. 34 Air Cleaner
Ref Air 1
Front and back sides
of tabs may be
lubricated with
petroleum jelly
Front and back sides
of air filter seal may
be lubricated with
petroleum jelly
Fig. 35 Lubrication Points - Early Production
Fig. 36 Lubrication Points - Late Production
King Pin
Ball Joint
Ball Joint on
Rack and Rod
Ball Joint
Steering Unit
King Pin
Ball Joints (2)
and Idler Arm
View From Underside Of Vehicle
Tie Rod Ends
Rack Ball Joint
Ref Lub 3
View From Underside Of Vehicle
Rack Ball Joint
Ref Lub 1
