Owner’s Manual and Service Guide
Read all of manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings
LUBRICATION
Do not use more than three (3) pumps of
grease in any grease fitting at any one
time. Excess grease may cause grease
seals to fail or grease migration into areas that could damage
components.
Putting more than three pumps of grease in a grease fitting
could damage grease seals and cause premature bearing
failure (Ref. Fig. 35 on page 20) (Ref. Fig. 36 on page 20).
SPARK PLUGS
Tool List Qty. Required
Spark plug socket, 13/16", 1/2" drive ............................... 1
Ratchet, 1/2" drive ........................................................... 1
Plug gauge, wire type ...................................................... 1
Anti-seize compound .................................................... AR
Torque wrench, 1/2" drive, ft. lbs...................................... 1
Use care not to over-tighten the plug.
Over-tightening can cause damage to the
aluminum cylinder head threads.
Remove and inspect the spark plugs at intervals indicated in
the Periodic Service Schedule (Ref. Fig. 17 on page 12). All
new spark plugs should be properly gapped before
installation (Ref. Fig. 39 on page 22). Apply a light coat of anti-
seize compound and tighten to 18 ft. lbs. (24 Nm) torque.
Fouled spark plugs are indicated by a wet, black
appearance. This could be caused by a dirty air filter
element or other restrictions in the air intake system.
Incorrectly adjusted valves, spark plug wires which are in
poor condition or poor quality fuel could also contribute to
the problem.
DIRECTION SELECTOR (Dual Cable system)
The direction selector is a mechanical device that operates
cables connected to the rear axle. The cables are sealed
and do not require lubrication, but may require occasional
adjustment (Ref. Fig. 37 on page 20). The only other
maintenance required is periodic lubrication of the linkage
and related moving parts.
PROLONGED STORAGE
To reduce the possibility of
severe injury or death
resulting from a possible
explosion:
Do not handle fuel in an area that is not adequately
ventilated. Do not smoke near the fuel tank or refuel

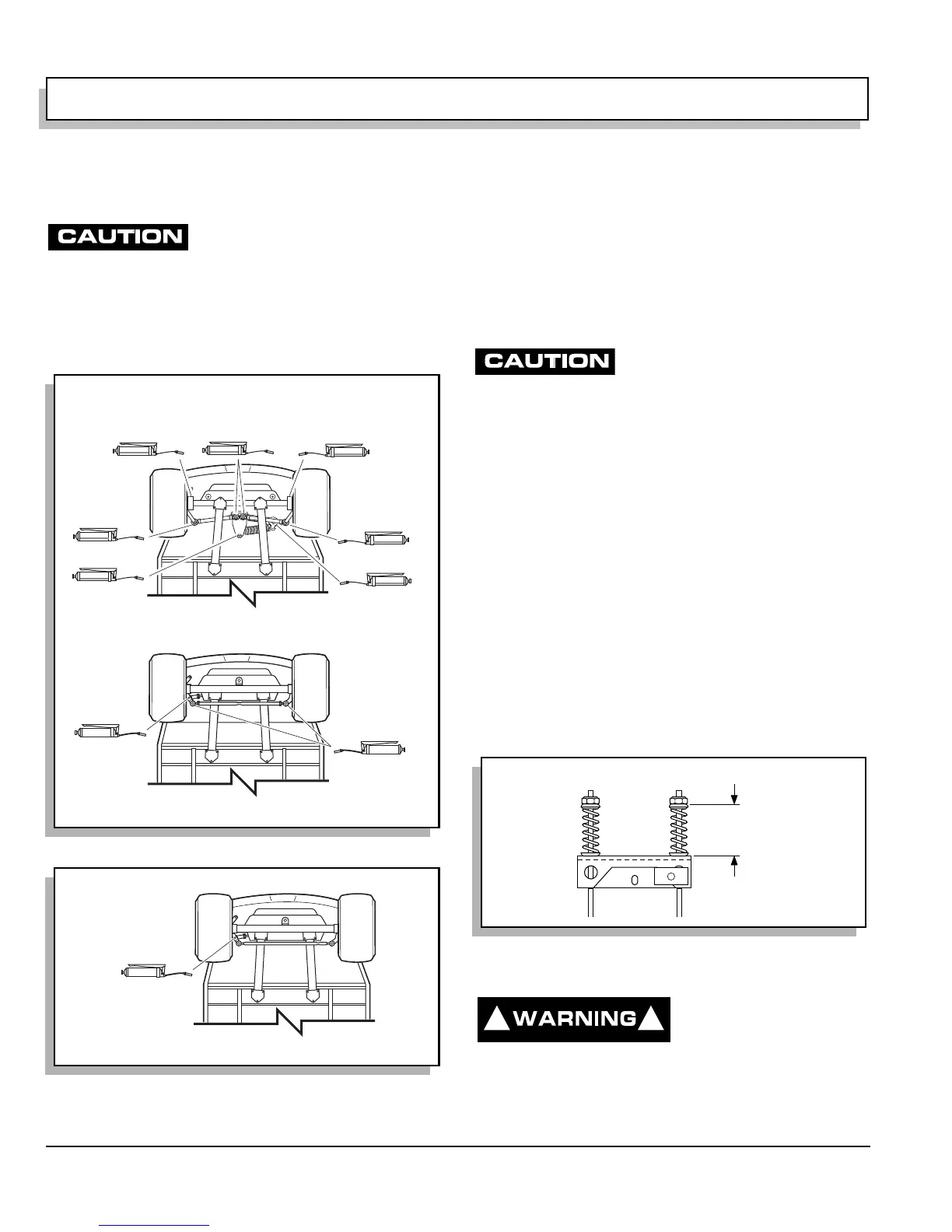

Fig. 35 Lubrication Points - Early Production
Fig. 36 Lubrication Points - Late Production
King Pin
Ball Joint
Ball Joint on
Rack and Rod
Ball Joint
Steering Unit
King Pin
Ball Joints (2)
and Idler Arm
View From Underside Of Vehicle
Tie Rod Ends
Rack Ball Joint
Ref Lub 3
View From Underside Of Vehicle
Rack Ball Joint
Ref Lub 1
Fig. 37 Shift Cable Adjustment
NEUTRAL
Factory Installed
Length
1 3/8" (3.5 cm)
R
e
f
Sca 1
! !
