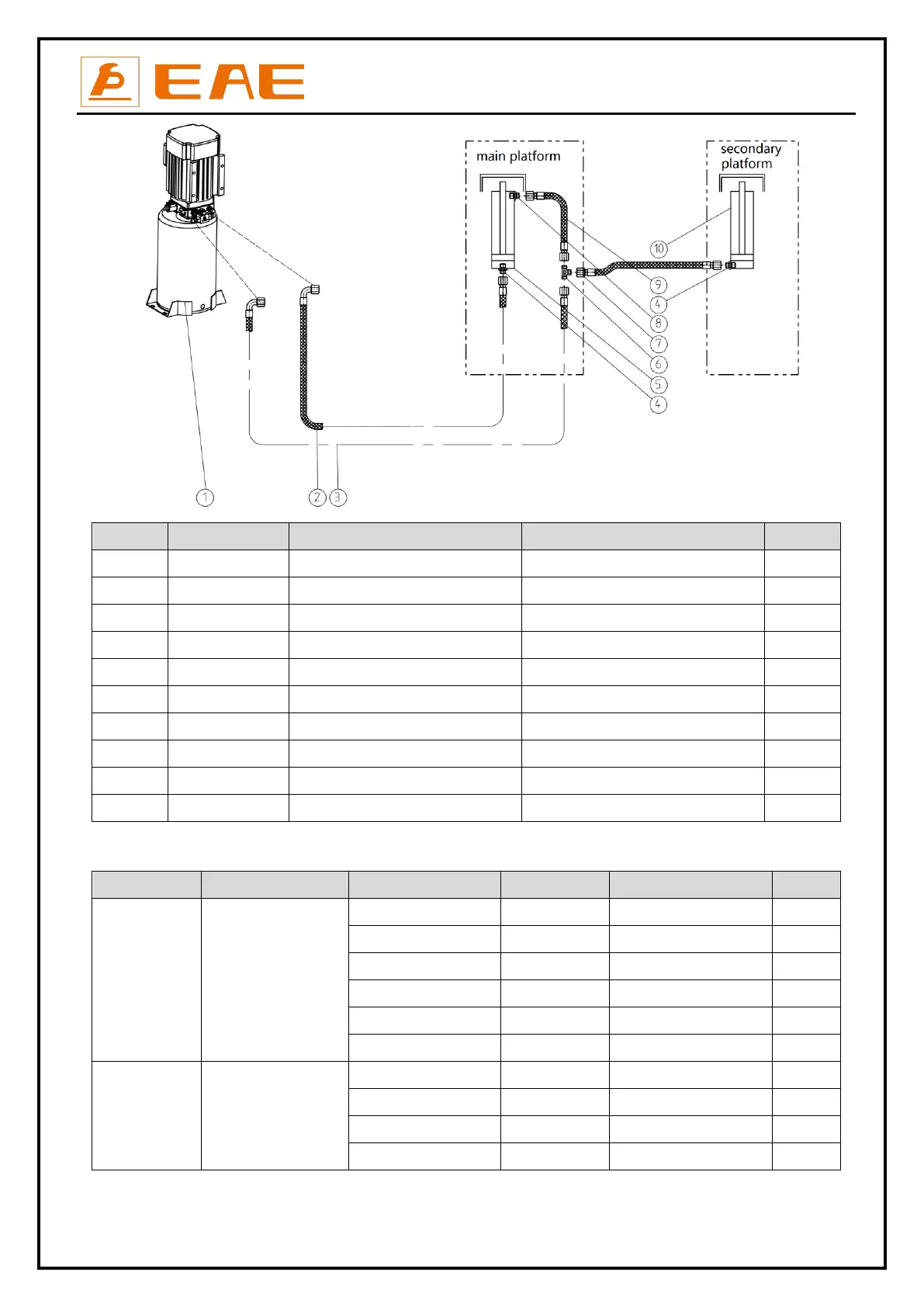

EAE EE-6603S - Page 30

Installation, Operation and Parts Manual
EE-6603S/EE-6603B
30
POS.
CODE
Description
Specification
Qty
1
Power unit
1
2
624001053B
Oil hose
L=6000
1
3
624001113
Oil hose
L=4500
1
4
615019006
Straight throttle valve
6501-A4-B15
2
5
615021012
Main cylinder
6603B-A6-B1
1
6
410210181
Three way fitting
6603B-A9-B7
2
7
624001055
Oil hose
L=2000
1
8
615019005
Tube connector B
6501-A4-B16
1
9
624001056
Oil hose
L=350
1
10
615021013
Secondary oil cylinder
6603B-A6-B2
1
Seal rings for cylinders
Cylinder code
Cylinder description
Seal ring
Seal ring code
Spefication
Qty
615021012
Main cylinder
Composite seal ring
207103009
KGD120*95*22.4*6.35
1
Type O seal ring
207101005
53*3.55
1
Type O seal ring
207101010
109*5.3
1
Type O seal ring
207101011
118*3.55
1
Type Y seal ring
207102004
SD67*77*6
1
Dust proof ring
207105018
DH67
1
615021013
Secondary cylinder
Composite seal ring
207103010
KGD100*75*22.4*6.35
1
Type O seal ring
207101012
38.7*3.55
1
Type O seal ring
207101013
92.5*3.55
1
Dust proof ring
207105007
DH50
1
