Installation, Operation and Parts Manual
EE-6603S/EE-6603B
29
POS.
CODE
Description
QTY
320601011
Relay holder
3
320601018
Relay feet fixer
6
KT
320602009
Integrated time relay
1
C
321001004
Capacitor
1
VD
321002001
Bridge rectifier
1
HL
321201001
Power indicator
1
FA
321202001
Alarm buzzer
1
SA
320305002
Rocker switch
4
321201021C
LED lamp
4
NOTE: For power supply of other voltages, the transformer is different.
Please check with our customers service people when order spare parts.

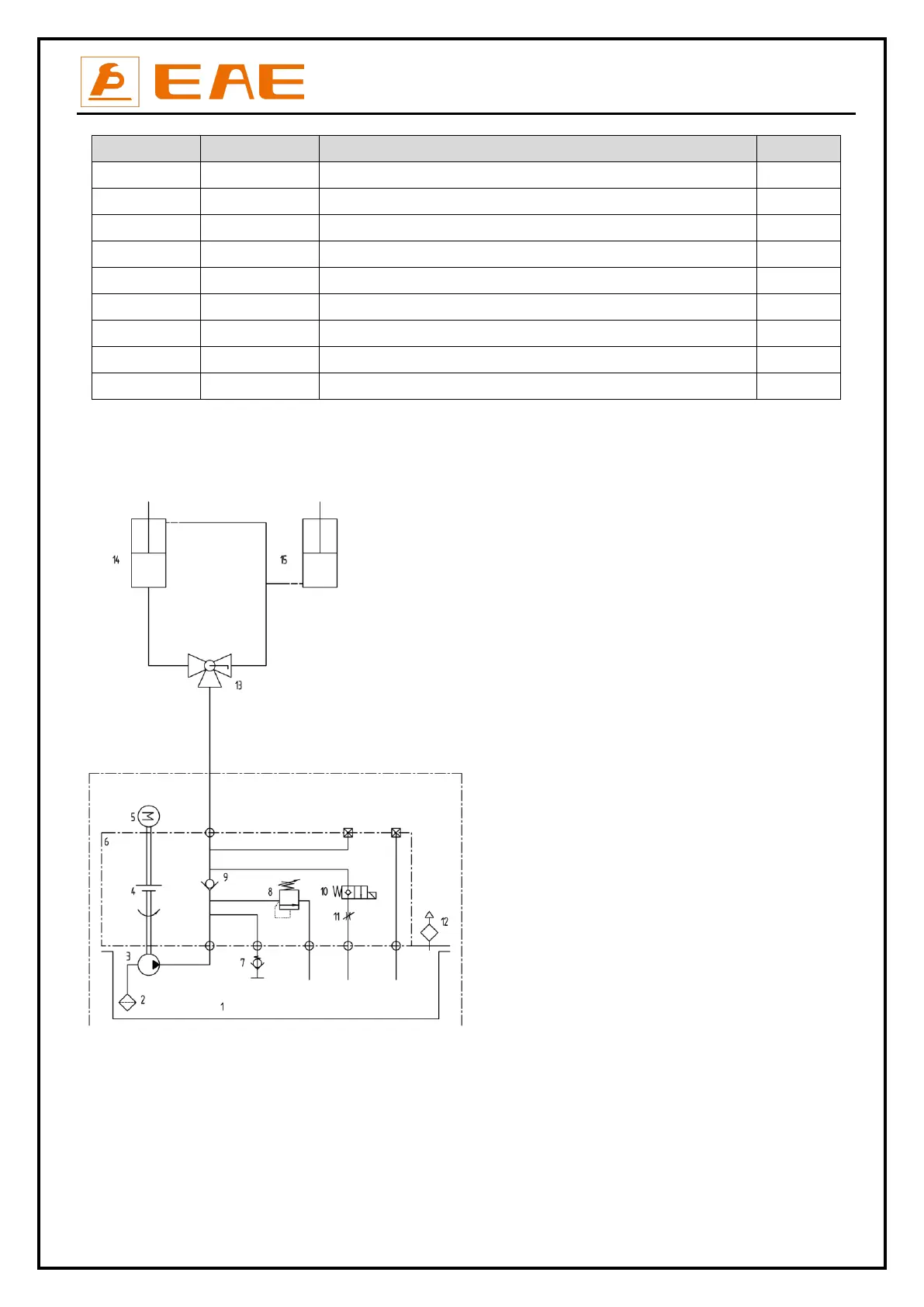

Annex 3, Hydraulic diagrams and parts list
1.Oil reservoir
2.Oil filter
3.Gear pump
4.Coupling
5.Motor
6.Hydraulic block
7.Cushion valve
8.Overflow valve
9.Single way valve
10.Unloading solenoid valve
11.Flow control valve
12.Breather
13.Manually operating three way valve
14.Main oil cylinder
15.Secondary oil cylinder
