Installation, Operation and Parts Manual
EE-6603S/EE-6603B
9
PRODUCT DESCRIPTIONS
3.1 General descriptions
This is wheel support vehicle lift. It is preferably for recessed mounting and is mainly composed by two lifting platforms and a set of
power unit. The gear pump works making oil in the pump push upwards the cylinder plunger and thus scissor brackets of the lift rise
accordingly. The safety valve in the hydraulic line together with the mechanical safety locking device reduce maximally the hazard of
sudden decline of the wheel supporting platform in case of hydraulic leakage. In addition, there safe designs like 24V control voltage,
switch for maximum rising height and low-height alarming buzzer which make the lift be safer to work with.

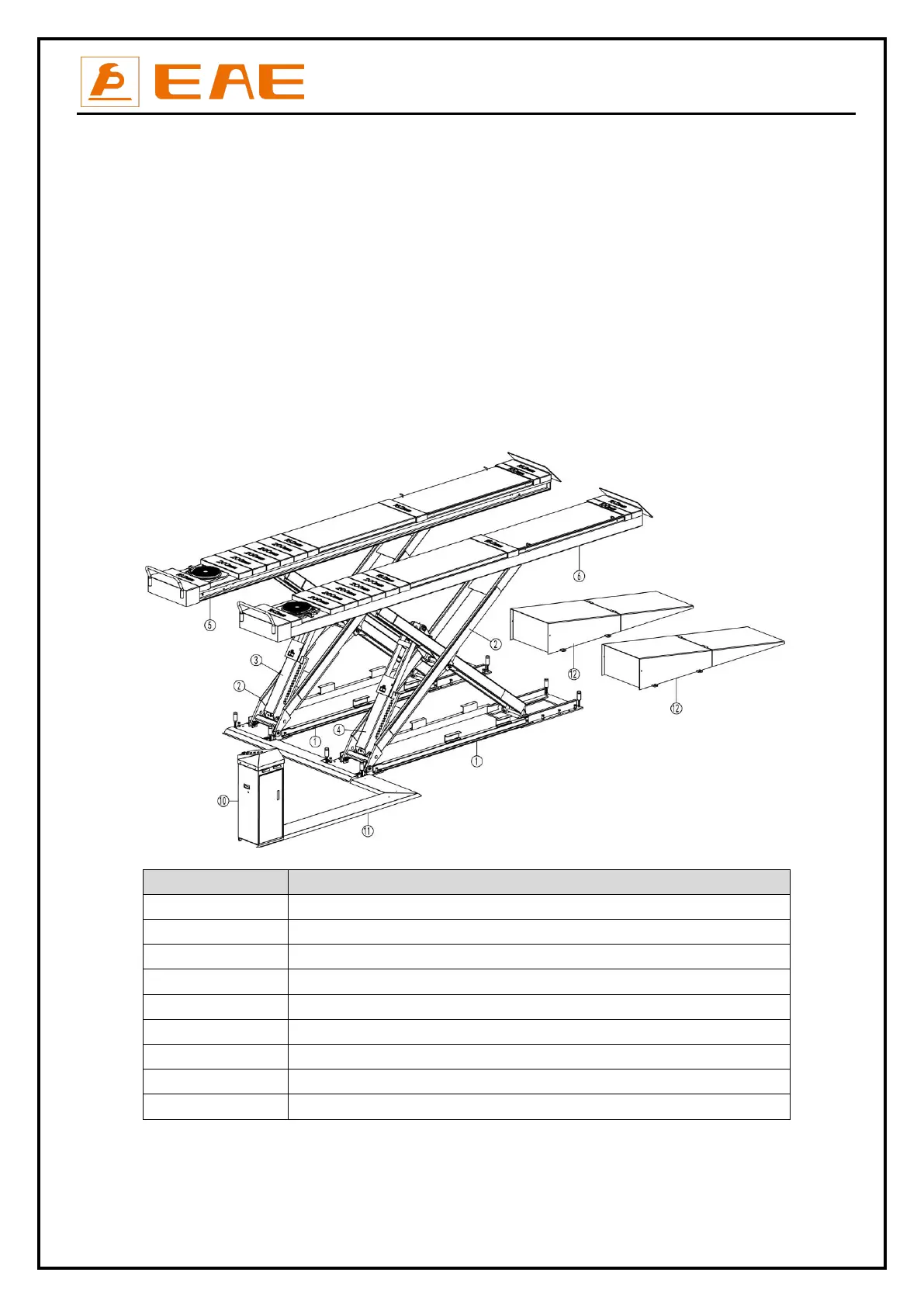

3.2 Construction of the lift
Model S, smooth platform.
Model B, platform with flexible turntable positions and side slip plates.
Pos.
Descriptions
1
Base frame assembly
2
Support arm assembly
3
Drive cylinder and mechanical lock assembly
4
Slave cylinder and mechanical lock assembly
5
Main platform assembly (left)
6
Secondary platform assembly (right)
10
Control cabinet
11
Oil hose covers (optional, for surface mount)
12
Drive-on ramp (optional, for surface mount)
