Installation, Operation and Parts Manual
EE-MR30
Step 5: Connect electrical system.
The electrical system shall only be fixed by qualified electricians.
Read and refer to Annex 2.
Open the control box and respectively connect electric wires with the terminals in the box.
Pay attention to the number tubes attached with each wire. Wires and terminals with the same number marking are going to be connected
together.
Read the name plate on the motor and understand the wiring diagram before connecting the power supply.

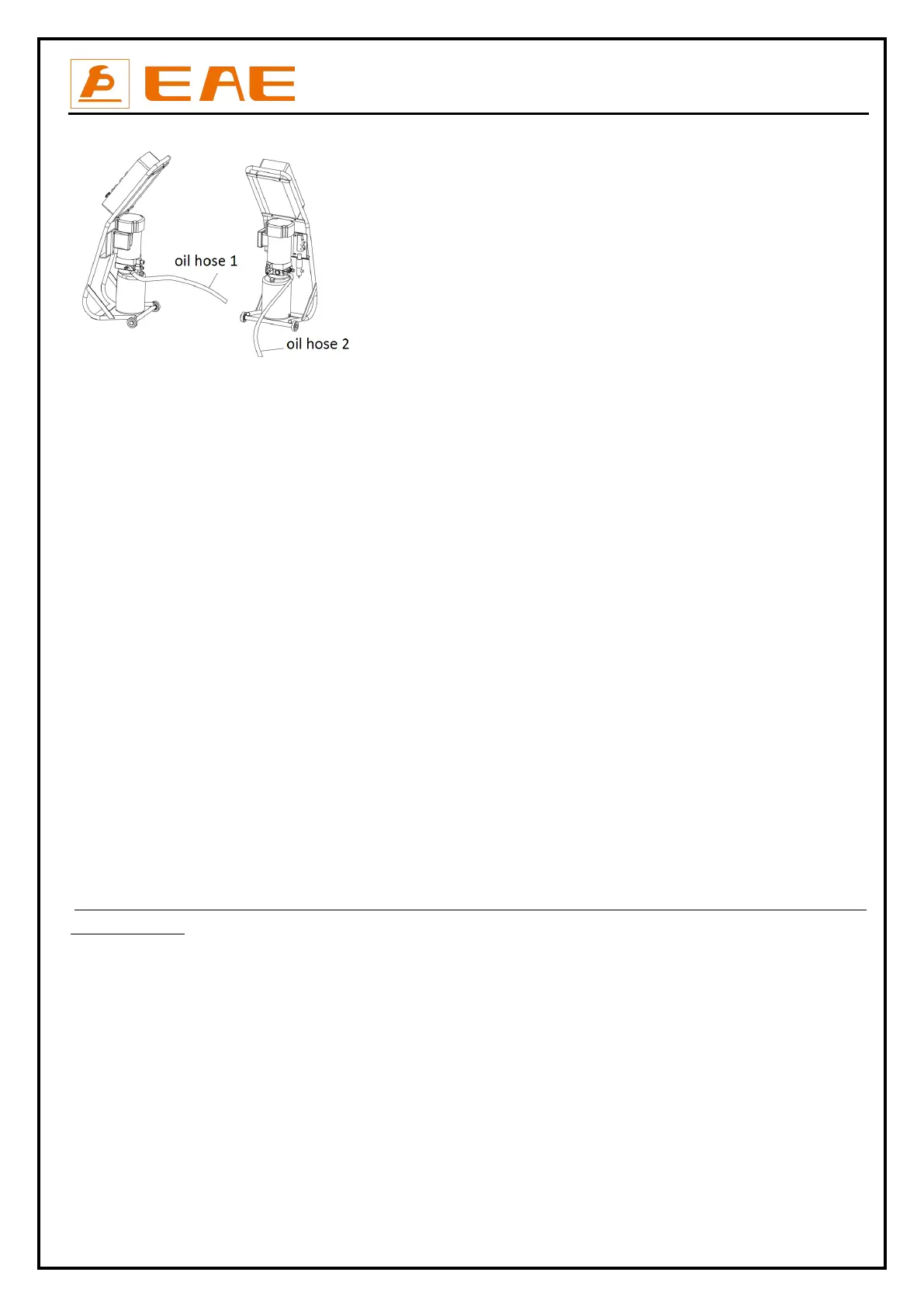

Step 6: Fill with hydraulic oil
CLEAN AND FRESH OIL ONLY. DON’T FILL THE TANK COMPLETELY FULL.
Lift must be fully lowered before changing or adding hydraulic oil
Pour 5 liters of hydraulic oil into the oil tank. The level of oil shall reach the tippets volume mark of the tank.
Add more oil after running the lift for several cycles until the lift can rise to the maximum lifting height.
Note：It is suggested to use HM NO.46 hydraulic oil. Use HM NO.32 hydraulic oil when average temperature is below 10 degree Celsius.
Change the oil 6 months after initial use and change once per year thereafter.
Step 7: Trial running.
Get familiar with lift controls before loading vehicle onto the lift.
No abnormal sound or leakage before loading.
Run the lift for 5-6 cycles without load. The cylinder is self-bleeding. After bleeding system, fluid level in power unit reservoir may be down.
Add more oil if necessary to raise lift to full height. It is only necessary to add oil to raise lift to full height.
(For three phase power supply, if the lift doesn't raise and the motor may turn in the wrong direction, in such event, interchange wires U, V in
the control cabinet).
Note: Refer to ANNEX 1 for fixed installation.
