EAE EE-MR30 - Annex 4, Mechanically Exploded Drawings and Parts List

Installation, Operation and Parts Manual
EE-MR30
31

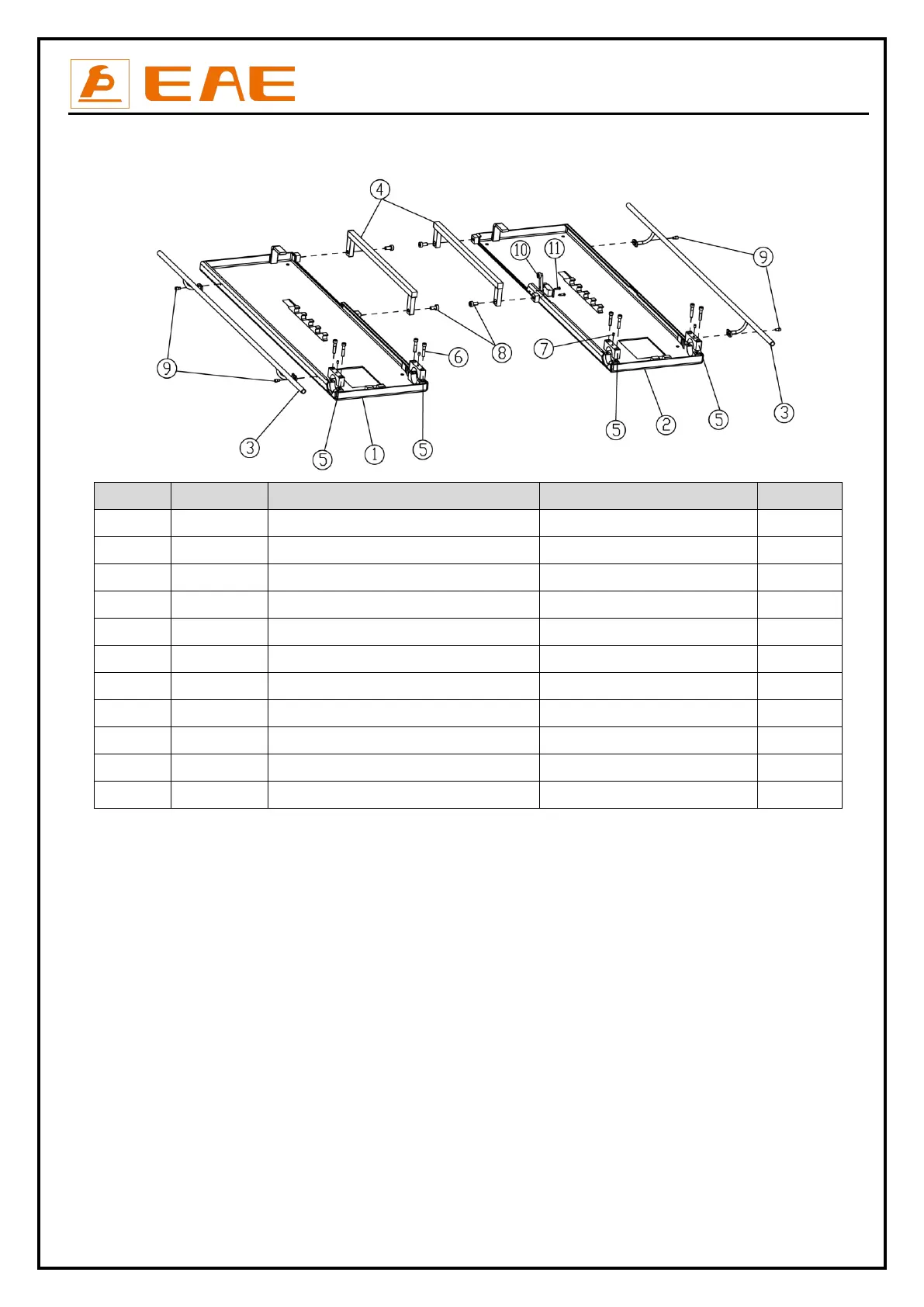

Annex 4, Mechanically exploded drawings and parts list
Pos.
CODE
Description
Specification
Qty
1
614901311
Welded base frame assembly (left)
MR30V2-A1
1
2
614901312
Welded base frame assembly (right)
MR30V2-A2
1
3
614018002
Feet protection fender
MR30-A1-B7
2
4
614018018B
Connection bar
MR30-A26
2
5
410180013
U block
MR30-A4
4
6
202109046
Hex socket cylinder head screw
M10*50
8
7
208106002
Oil cup
M8
4
8
202109046
Hex socket cylinder head screw
M10X50-GB70_1
4
9
202109027
Hex socket cylinder head screw
M8*12
4
10
320301009
Limit switch
TZ-8104
3
11
202101021
Cross socket cap head screw
M5*10
2
