EAE EE-MR30 - Annex 3, Hydraulic Diagrams and Parts List

Installation, Operation and Parts Manual
EE-MR30
27

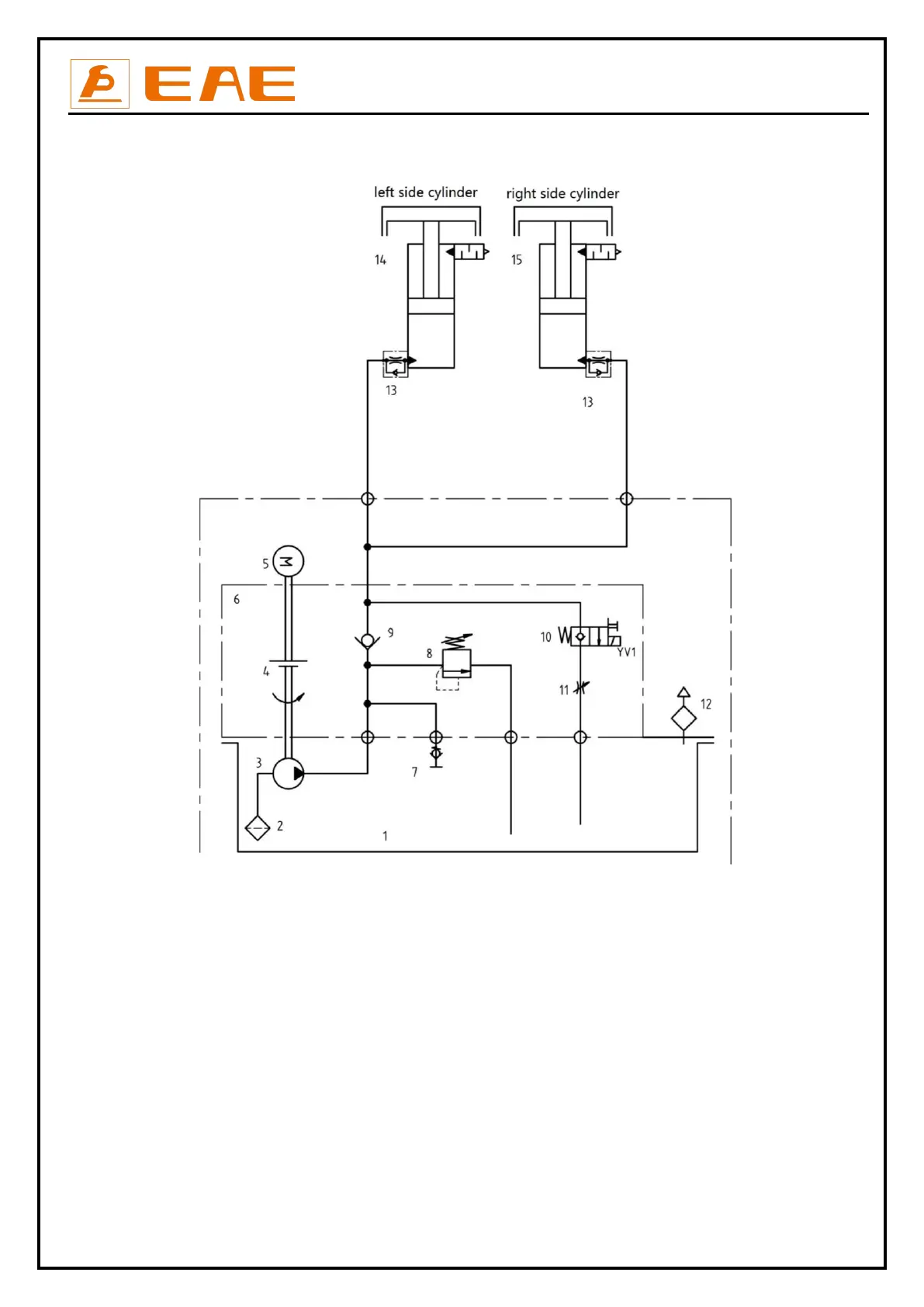

Annex 3, Hydraulic diagrams and parts list
1.oil tank
9.single way valve
2.oil sucking filter
10.solenoid unloading valve
3.gear pump
11.throttle valve
4.coupling
12.oil tank cover
5.motor
13.hose connector (single way throttle valve included )
6.hydraulic block
14.cylinder
7.cushion valve
15.cylinder
8.overflow valve
