Installation, Operation and Parts Manual
EE-MR30
Special attentions:

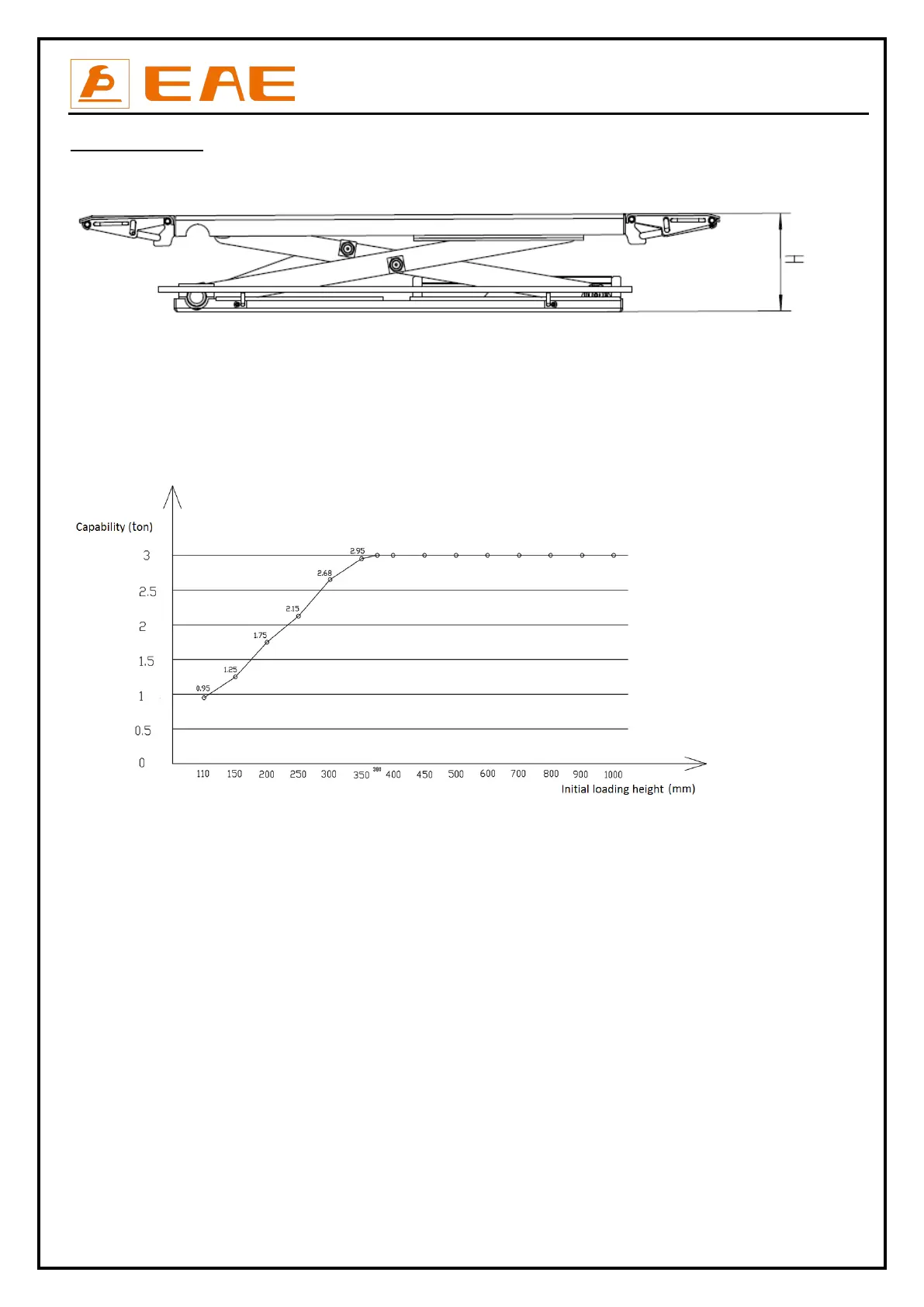

As the lift is chassis supporting, it is originally designed to lift the max load after a short rise of the supporting platform.
For instance, the supporting platform shall at least be raised to a height of 210mm (H≥210mm) in order to lift vehicle with a self-weight of
1800kg. To lift vehicle with a self-weight of 2200kg, the platform shall at least be raised to a height of 270mm(H≥270mm); To lift vehicle with
a self-weight of 2700kg, the platform shall at least be raised to a height of 310mm(H≥310mm).
As a result, the user has to park the supporting platform at a suitable height which ensures the vehicle can be raised again after tires or other
accessories that may affect the initial loading height are removed by consulting to the following chart and self-weight of the lifted vehicle.
The above data in the chart was obtained under static load test and due to the real factors such as the suspension system and tire sizes of
the vehicle, the weight of vehicles which can be lifted could be larger than the capability data shown in the chart.
