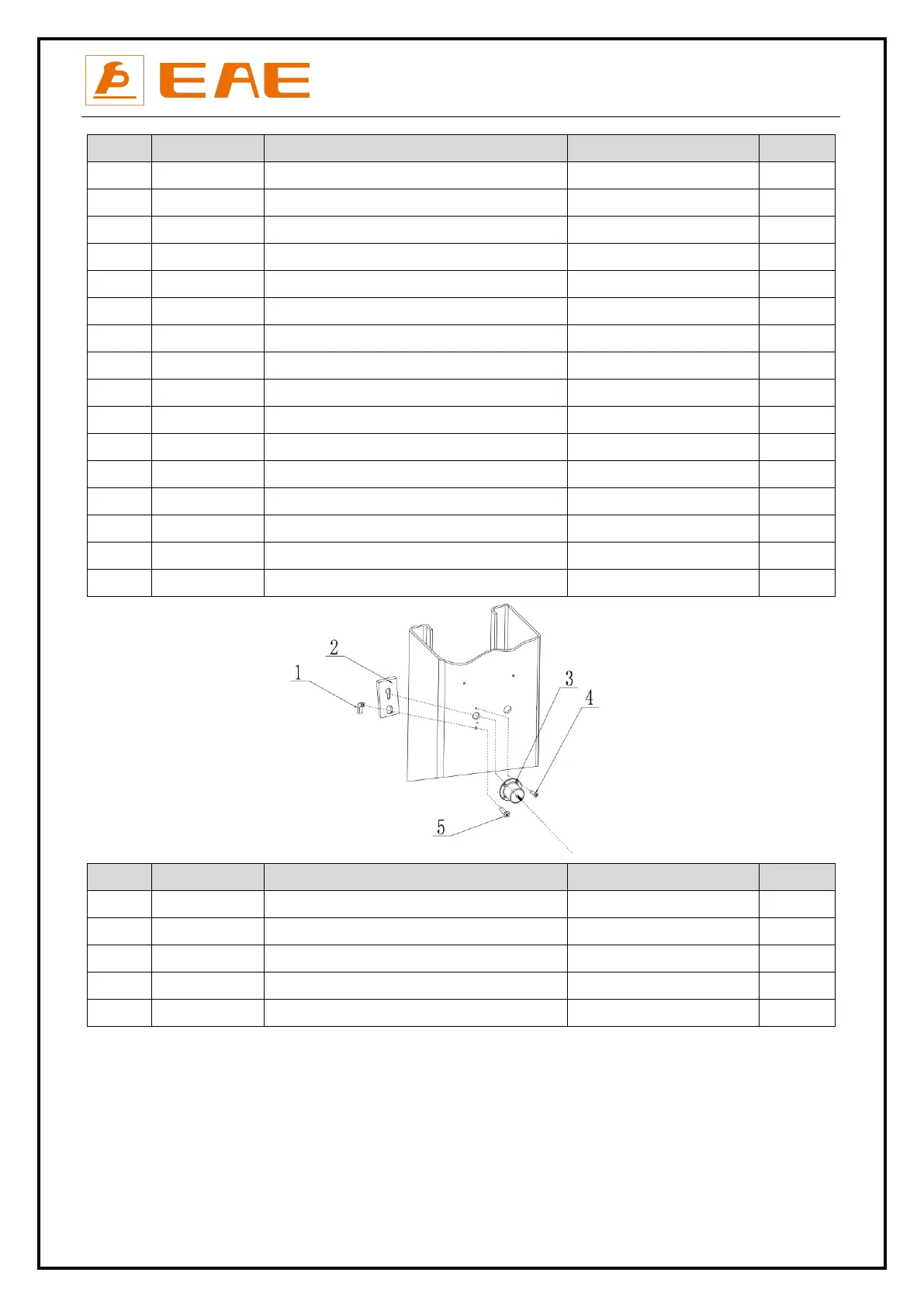

EAE EE62C-35T-E - Page 42

Installation, Operation and Parts Manual
EE62C-35T-E / EE62C-42T-E
42
Pos.
CODE
Description
Specification
Qty
4
205101007
Bearing
2512
2
5
420010010
Slider
6254E-A2-B5
16
6
410044401B
Pulling rod
6254E-A2-B1
4
7
410150121
Pressure spring
6254E-A2-B4
4
8
410901075
Teeth block
6254E-A2-B9
4
9
206102013
Elastic post pin
D6X40-GB879
4
10
204301009
Circlip
D25-GB894_2
4
11
410049031B
Shaft
6254E-A12
4
12
202109040
Hex socket cylinder head screw
M10*16
4
13
420010020B
Protection rubber pad
6254E-A2-B6
2
14
614004898
Carriage
62C-A3-B1
2
15
410047111
Retain plate for sliders
62B-A3-B2
8
16
204101006
Flat washer
M10
16
17
204201005
Spring washer
M10
16
18
202109041
Hex socket cylinder head screw
M10*20
16
19
203204011
Knob
50*M10
4
Pos.
CODE
Description
Specification
Qty
1
410040071
Orientation block
6254E-A17
4
2
410040061
Safety locking plate
6254E-A13
4
3
330310005
Electromagnet
6254E-A14
4
4
202109017
Hex socket cylinder head screw
M6*8
8
5
202109020
Hex socket cylinder head screw
M6*15
4
