Installation, Operation and Parts Manual
EE62C-35T-E / EE62C-42T-E

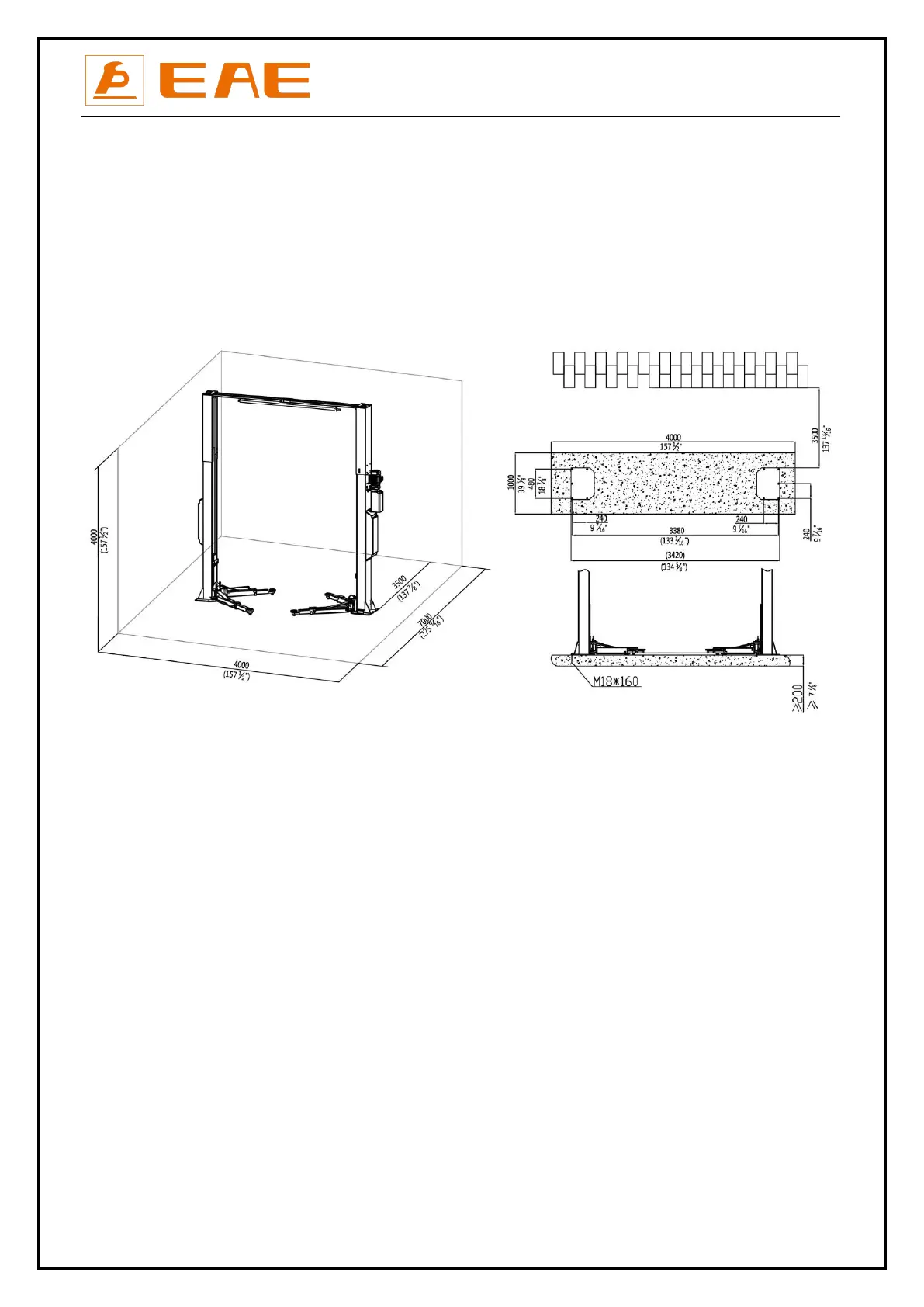

Annex 1, Floor plan
Indoor installation only. There must also be a clearance of at least 1 meter between the lifting platform and fixed elements (e.g.
wall) in all lifting positions. There must be sufficient space for driving vehicles on and off.
C25 concrete foundation with a minimum thickness of 200mm.
Surface: Horizontal and even (Gradients max. 0.5 %)
Newly built concrete ground must be older than 20days.
In mm.
