mounting positions. Installation instructions for the in-dash and swivel
mounting kits are supplied with the adapter kits.
Bracket Installation
Mount the unit in any convenient location, provided there is clearance
when it’s tilted for the best viewing angle. Holes in the bracket’s base
allow wood screw or through-bolt mounting.

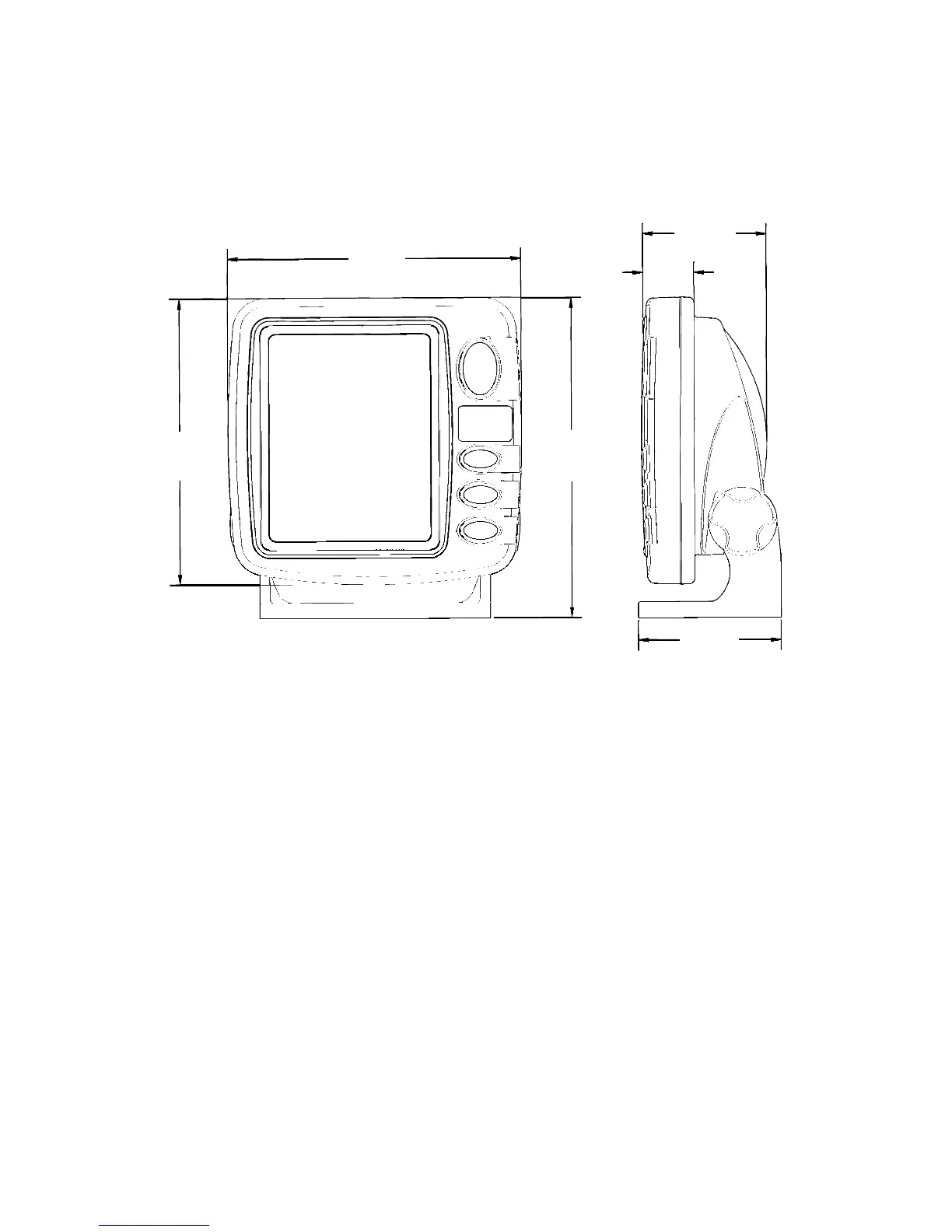

Front view (left) and side view (right) showing dimensions of FishEasy
2 family sonar units when mounted on gimbal bracket.
It may be necessary to place a piece of plywood on the back side of thin
panels to reinforce the panel. Make sure there is enough room behind
the unit to attach the power and transducer cables.
Drill a 1-inch (25.4 mm) hole in the dash for the power and transducer
cables. The best location for this hole is immediately under the gimbal
bracket location. This way, the bracket can be installed so that it covers
the hole, holds the cables in position and results in a neat installation.
Some customers, however, prefer to mount the bracket to the side of the
cable hole — it's a matter of personal preference.
After drilling the hole, pass the transducer connector up through the
hole from under the dash. Drop the power cable's bare-wire end down
though the hole from the top.
If you wish, you can fill in the hole around the cables with a good ma-
rine caulking compound. (Some marine dealers stock cable hole covers
to conceal the opening.) No matter what type of installation you prefer,
Millimeter
[Inch]
57.2
[2.25]
23.8
[0.94]
136
[5.35]
147.4
[5.80]
132
[5.20]
66
