Earlex HV5500 - Page 4

4
28
29
3
0
27
31
No. Description Part No
1. Air Cap Ring L0151
2. Air Cap L0152
3. Air Distributor Plate L0162
4. Fluid Tip, 0.08” L0157
5. Fluid Tip Seal L0159
6. Pivot Screw L0179
7. Washer L0195
8. Main Body L0180
9. Fluid Needle 0.08” L0166
10. Adaptor L0174
11. Spring L0175
12. Fluid Adjusting Screw L0176
13. Pivot L0178
14. Air Feed Tube L0182
15. Gland Nut L0173
16. Gland Washer (3 pcs) L0168
No. Description Part No
17. Paint Container L0190
18. Centre Bolt Nut L0189
19. Gasket L0188
20. Lid L0187
21. Shim L0186
22. Clamp Lever L0185
23. Yoke L0184
24. Centre Bolt & Pick-Up Tube Assy L0183
25. Operating Lever L0177
26. Spanner L0191
27. Filter (not visible) L0058
28. Air Hose 4m L1107
29. Air Hose clip L1289
30. Handle Set-Up and Removal Point L1535
31. Paint Stirrer L1565
Needles and fluid tips of different sizes can be obtained as sets under the following accessory numbers. Please call our toll free helpline to order these
on +33 (0)4 76 67 18 46.
1.0mm dia Fluid Tip, Needle & Seal HVACC10AFDO
1.5mm dia Fluid Tip, Needle & Seal HVACC15AFDO
2.0mm dia Fluid Tip, Needle & Seal HVACC20AFDO
2.5mm dia Fluid Tip, Needle & Seal HVACC25AFDO
The following parts are available from Earlex. Please call our helpline:
+44 (0)1483 454666

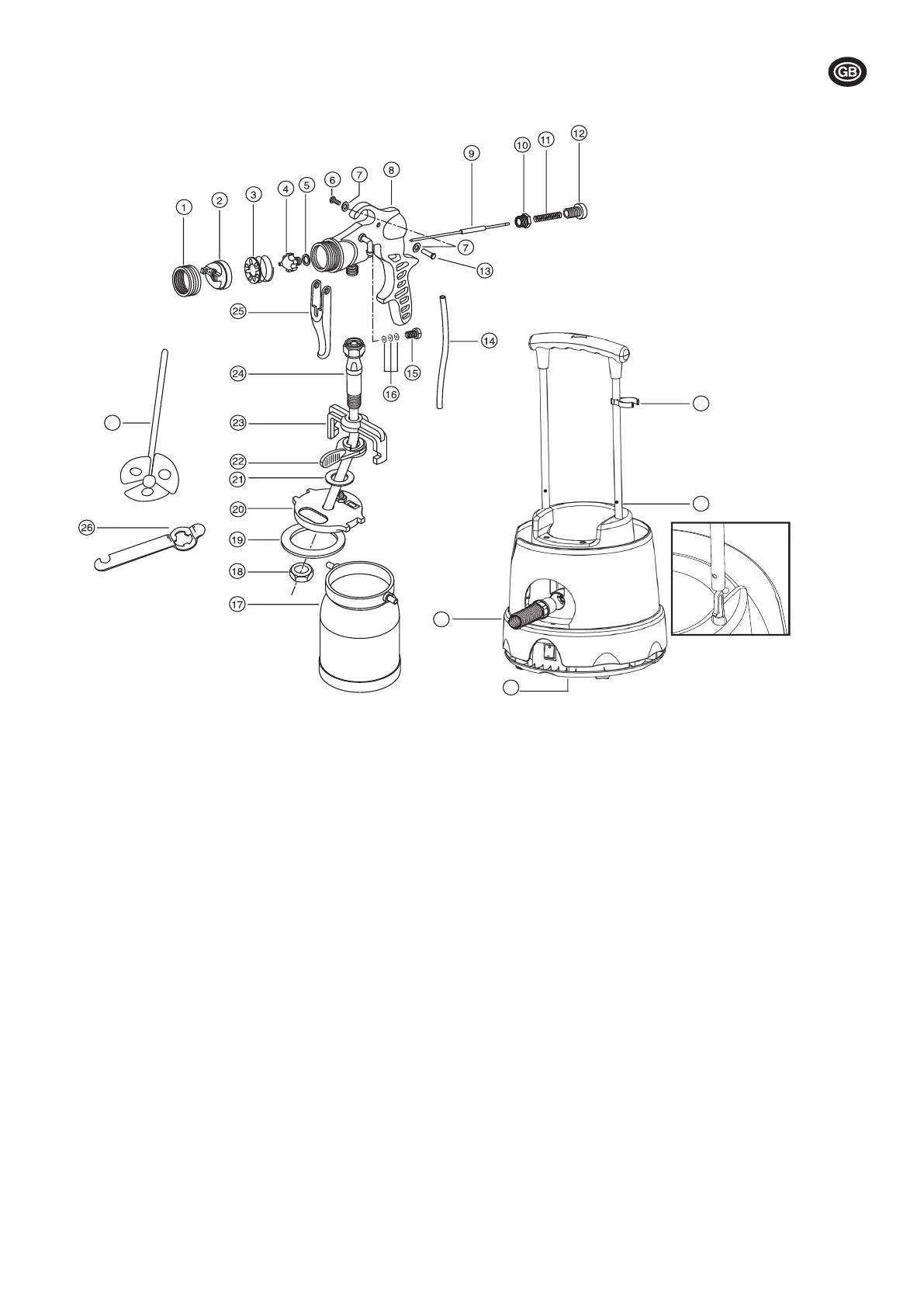

EXPLODEDPARTSVIEW
PARTSLIST
OPTIONALEXTRAS
