Earlex HVLP - Spare Parts Drawing; Spare Parts List; Optional Extras

3
Key Description Part No.
1. Air Cap Ring L0151
2. Air Cap L0152
3. Air Distributor Plate Assy L0162
4. Fluid Tip, 2.0mm L0157
5. Fluid Tip Seal L0159
6. Pivot Screw L0179
7. Washer L0195
8. Main Body Assy L0180
9. Fluid Needle 2.0mm L0166
10. Adaptor L0174
11. Spring L0175
12. Adjusting Screw L0176
13. Pivot L0178
14. Air Feed Tube L0182
Key Description Part No.
15. Gland Nut L0173
16. Gland Washer (2 pcs) L0168
17. Paint Container L0190
18. Centre Bolt Nut L0189
19. Gasket L0188
20. Lid Assy L0187
21. Shim L0186
22. Clamp Lever L0185
23. Yoke L0184
24. Centre Bolt & Pick Up Tube Assy L0183
25. Operating Lever L0177
26. Viscosity Cup SG243
27. Spanner L0191
The following parts are available from Earlex. Please phone our Helpline on 01483 454666.

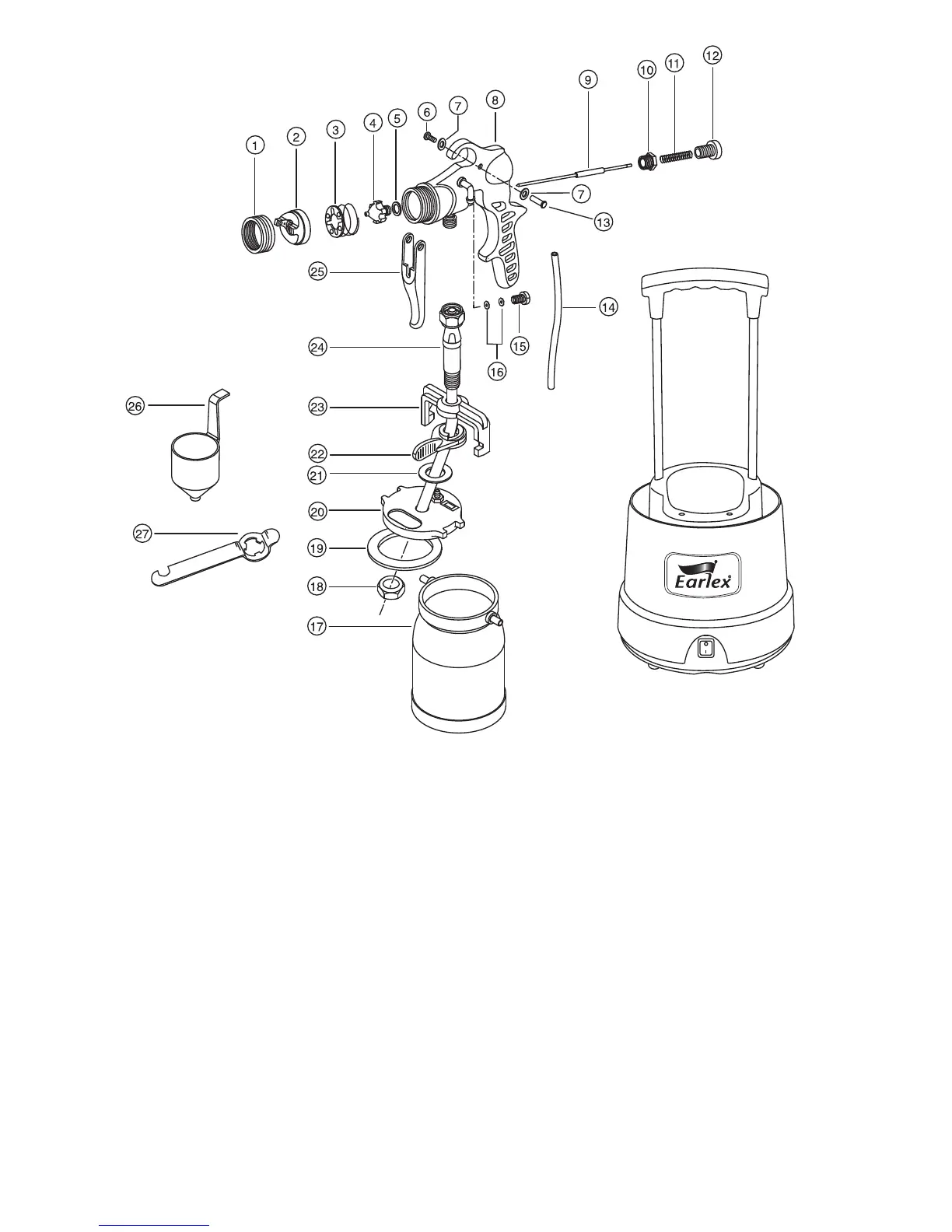

SPARE PARTS DRAWING
SPARE PARTS LIST
OPTIONAL EXTRAS
Needles & Fluid Tips of different sizes can be obtained as sets under the following accessory numbers.
Please call our helpline to order these on 01483 454666.
1.0mm dia Fluid Tip, needle & seal HV5ACC10R
1.5mm dia Fluid Tip, needle & seal HV5ACC15R
2.0mm dia Fluid Tip, needle & seal HV5ACC20R
2.5mm dia Fluid Tip, needle & seal HV5ACC25R
