Earlex SPRAY STATION - Exploded Parts View; Parts List

3

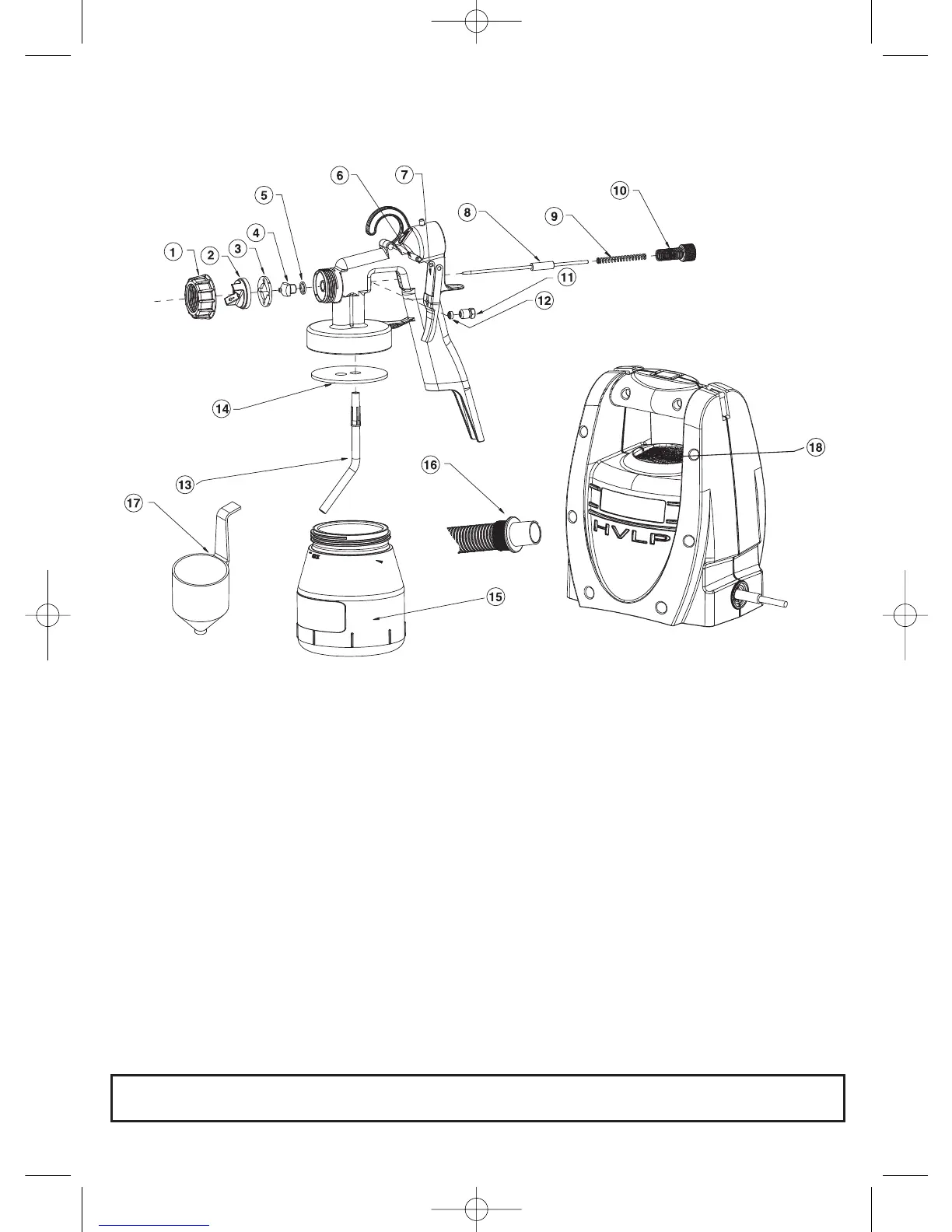

EXPLODED PARTS VIEW
PARTS LIST
Key Description Part No.
01. Air Cap Ring L0215
02. Air Cap L0205
03. Spray Direction Plate L0206
04. Fluid Tip (2.0mm) L0237
05. Fluid Tip Seal L0211
06. Trigger Pin L0209
07. Trigger L0202
08. Fluid Needle (2.0mm) L0236
6120LgnirpS .90
Key Description Part No.
10. Fluid Adjusting Screw L0210
11. Gland Nut L0208
12. Gland Seal L0272
13. Paint Feed Tube L0214
14. Paint Container Seal L0335
15. Paint Container L0201
16. Hose Assembly L0291
17. Viscosity Cup SG243
0920LretliF .81
IF YOU HAVE ANY PROBLEMS WITH YOUR SPRAY GUN OR IF YOU BELIEVE A PART IS MISSING, DO
NOT RETURN TO STORE. PLEASE CONTACT EARLEX LTD ON 01483 454666.
