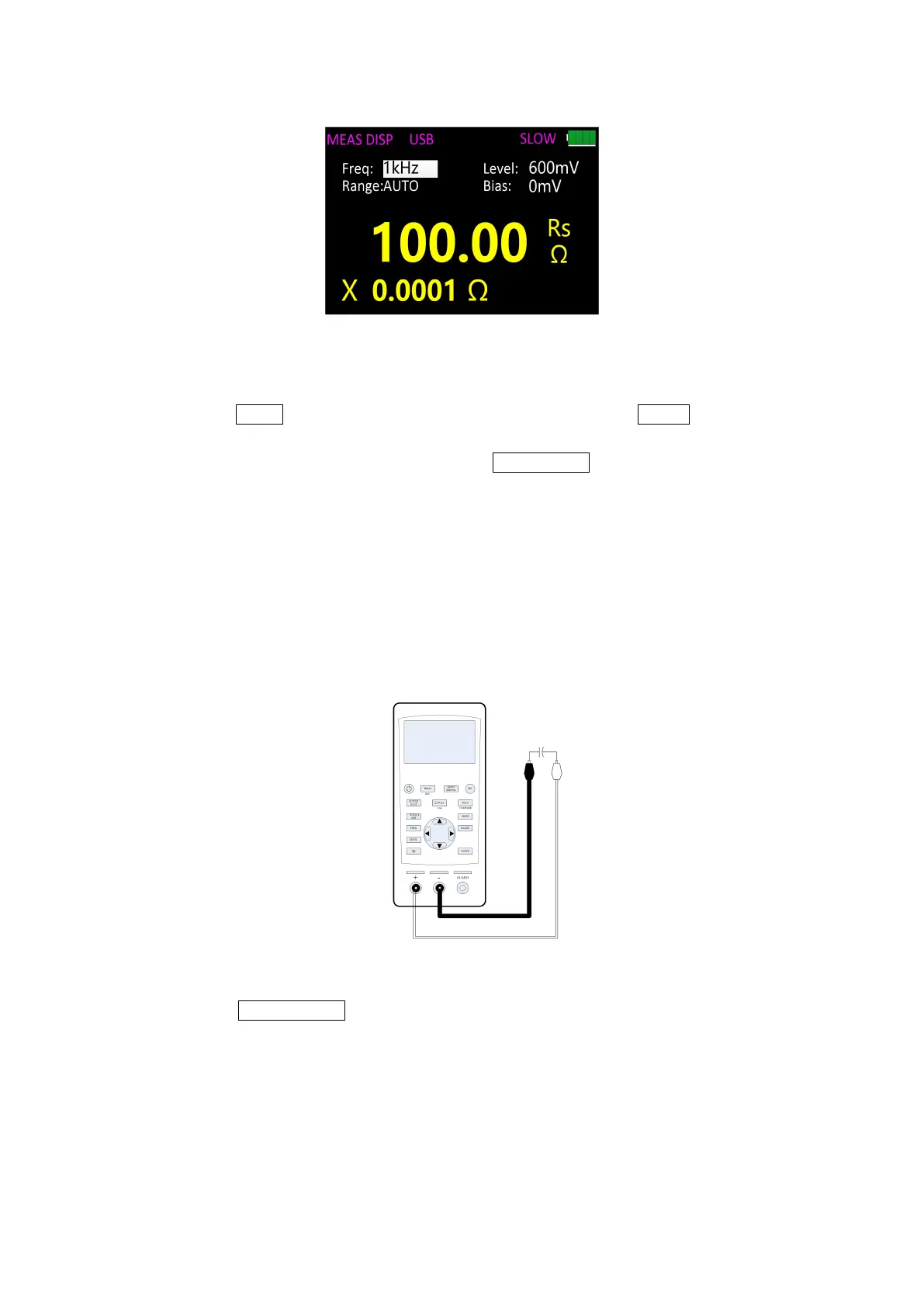

Figure 16
3. Insert the resistor into the test notch, or choose the appropriate test accessories (rubber
plug - alligator clip, Kelvin test fixture, etc.) and connect it with the measured resistance;
4. Press the FREQ key to select the desired test frequency, press LEVEL to select the
desired level;
5. To select another secondary parameter, press X/D/Q/θ/ESR
6. Read the measurement results from the screen.
Reminder: the AC signal is used by the instrument to measure the resistance, so the
test result reflects the AC resistance characteristics of the instrument instead of its DC
resistance.
6.2 Capacitance measurement
Warning: Make sure that the capacitor has been fully discharged before measuring.
See figure 17 for the connection test.
Figure 17
1. Long press the power key to start the instrument;
2. Press the AUTO/R/C/L/Z key until Cs is displayed on the interface which means to
select capacitance measurement, shown in figure 18;
