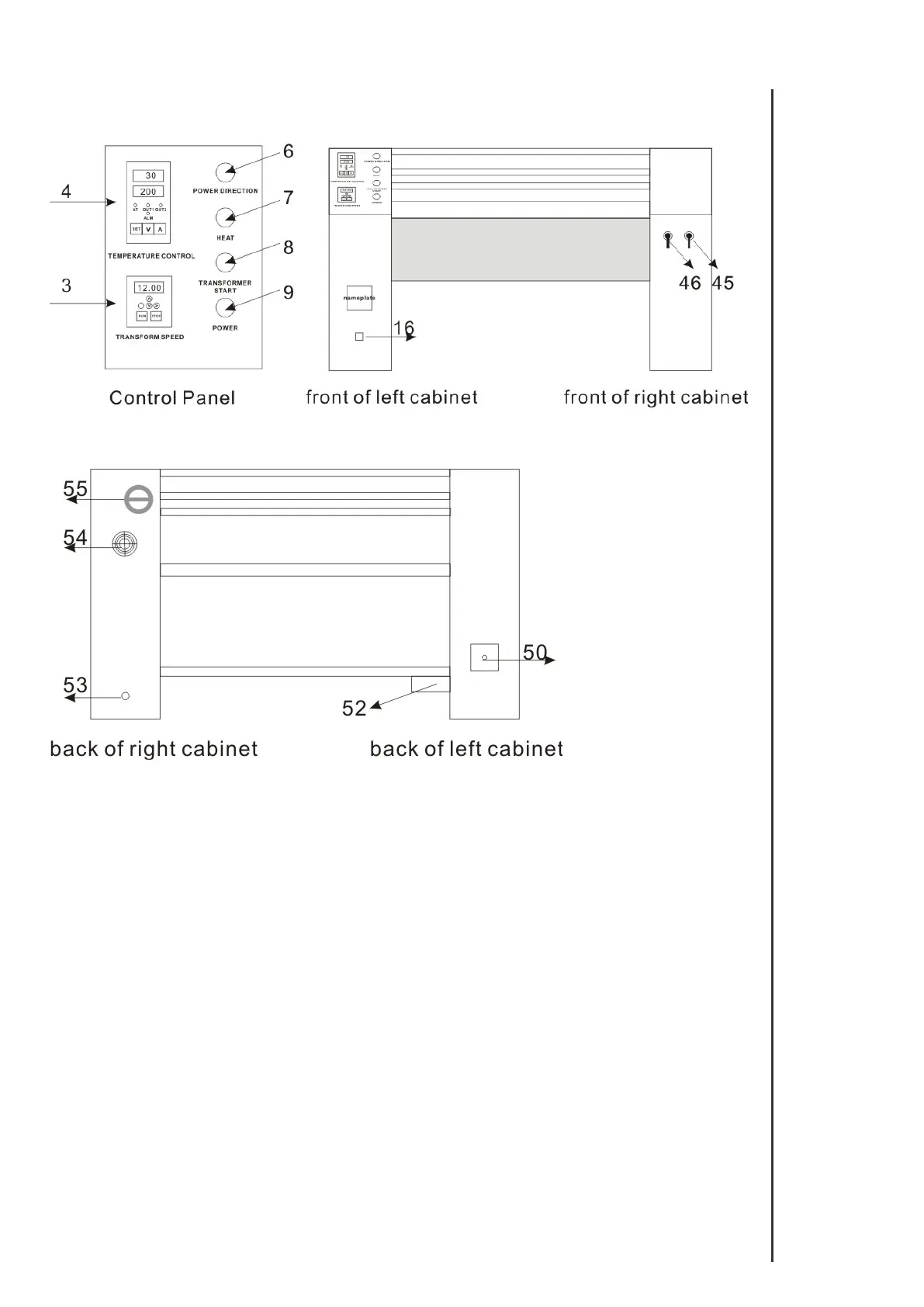

6. Function
3. Transform Speed - -Control direction of rotation and speed of motor.
4. Temperature Control - -Setting temperature and controlling temperature range.
6. Power Direction - - Indicator of power
7. Heat - -Switch on/off circuit of heating.
8. Transform Start - -Switch on/off circuit of frequency converter.
9. Power - - Main Power Switch
16. Socket - -Electric Socket for Worktable
45. Air pressure switch - -Controller for upper cylinder
46. Air pressure switch - -Controller for lower cylinder
50. Speed adjustor - -It is for adjusting the speed of the Motor (52).
52. Motor- - It drives rotary of the roll collector on backside of the machine.
53. Air inlet port- -The port where input the compressed air
54. Fan- - Cool down the temperature of right cabinet
55. Separate hand wheel - -Control wrapping tension of blanket. (Press or loosen the
blanket)
Note: Please learn the details of frequency converter referring to the manual
