Eastsign MOT-M - Machine Structure and Components; Appearance and Parts Explanation

Eastsign
ROTARY HEAT PRESS MOT
-M USER MANUAL
7
4. Structure

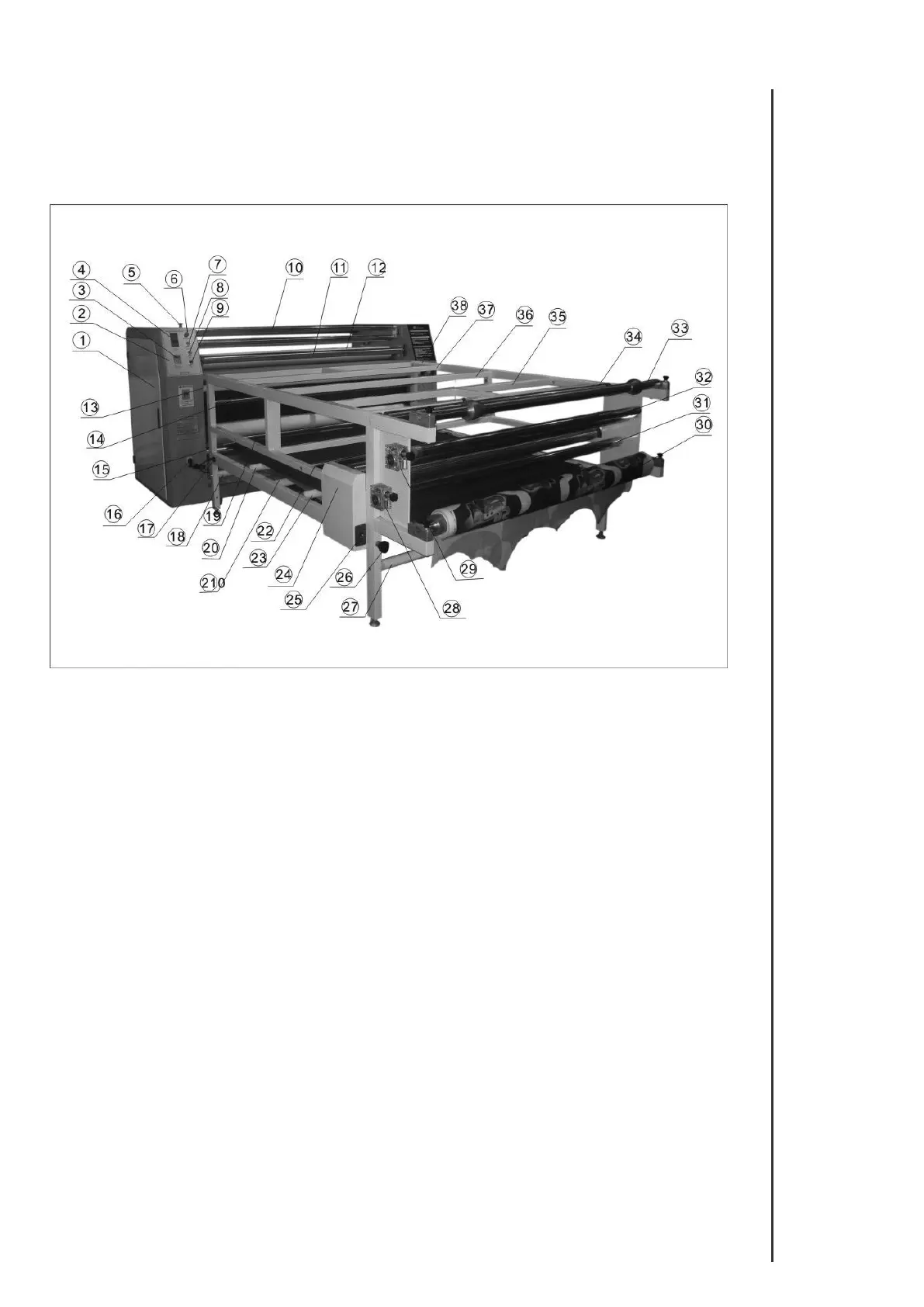

4.1 Explanation of appearance and all parts
(1) left box
(11) supporting shaft
(tissue paper)
(27) left screw rod
(2) control panel
(12) blanket
(28) speed retarder
(pic paper)
(3) speed adjustor
(13)(14)(18)(19)(22)(27)
structural bar
(29) Speed retarder
(fabric)
(4) temperature control device
(15) left stand
(30) pic paper lading bar
(5) tension knob
(16) socket (17) electric
(31) tension adjusting bar
(pic paper)
(6) power indicator
socket for worktable
(32) tension adjusting bar
(fabric)
(7) heating button
(20) (21) (23) balance shaft
(33) fabric lading bar
(8) converter startup button
(24) Wheel box
(34) supporting shaft
(9) general power supply button
(25) speed adjustor
(35) (36) (37)
worktable connector
(10) tension adjusting bar
(tissue paper)
(26) screw rod
(38) right stand
