EasyIO FS20 – Installation Guide v1.0
9

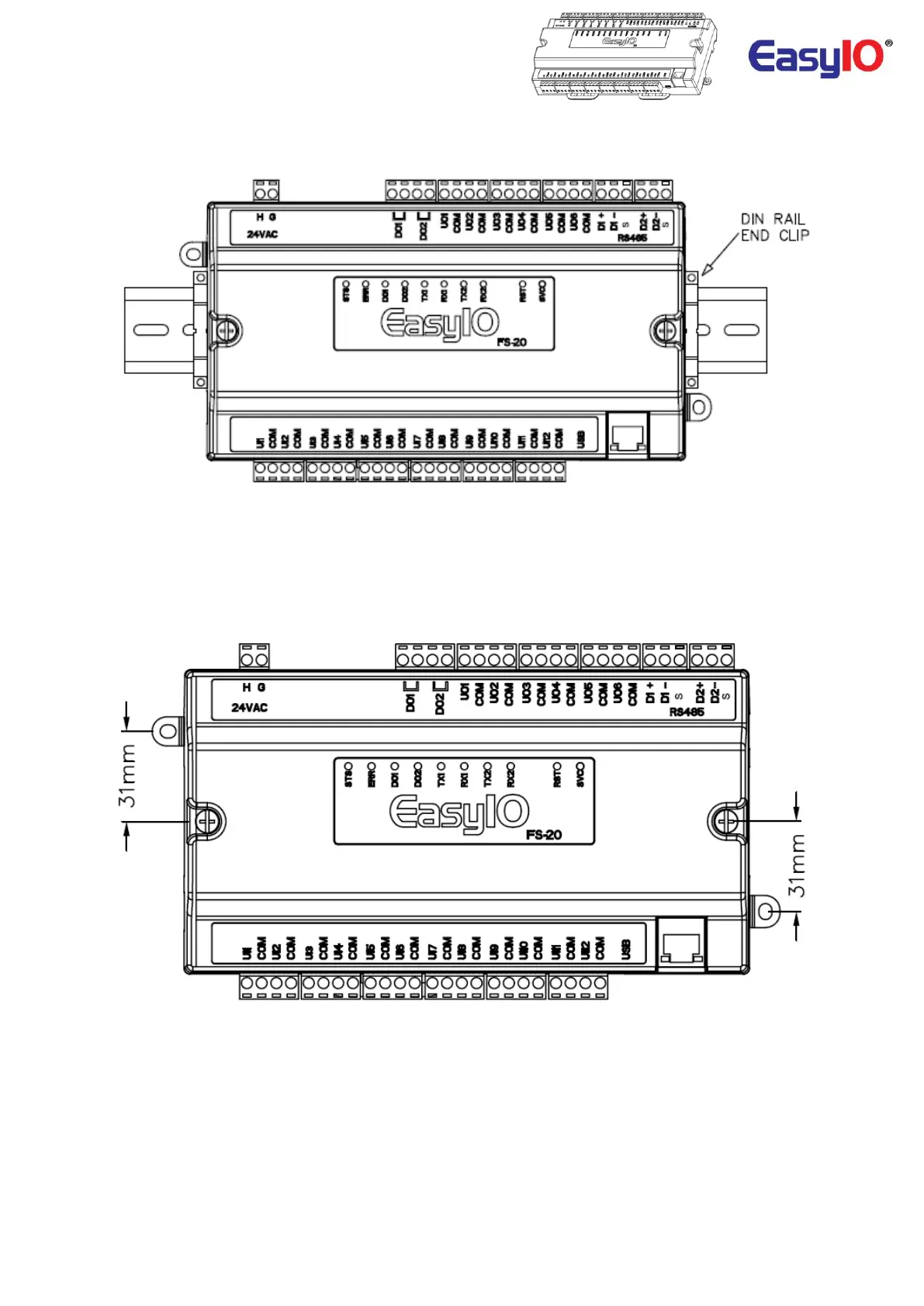

Step 6
To keep the assembly secures a DIN rail end clip can be use.
Image shows a typical “DIN rail end clip(end stopper)”
The EasyIO FS-20 comes with 2 mounting holes as optional mounting. Occasionally if DIN rail mounting is
not practical, you can use screws to mount the EasyIO FS-20 to an enclosure base plate.
