EasyIO FW-14– Installation Guide v2.0
15
Step 6

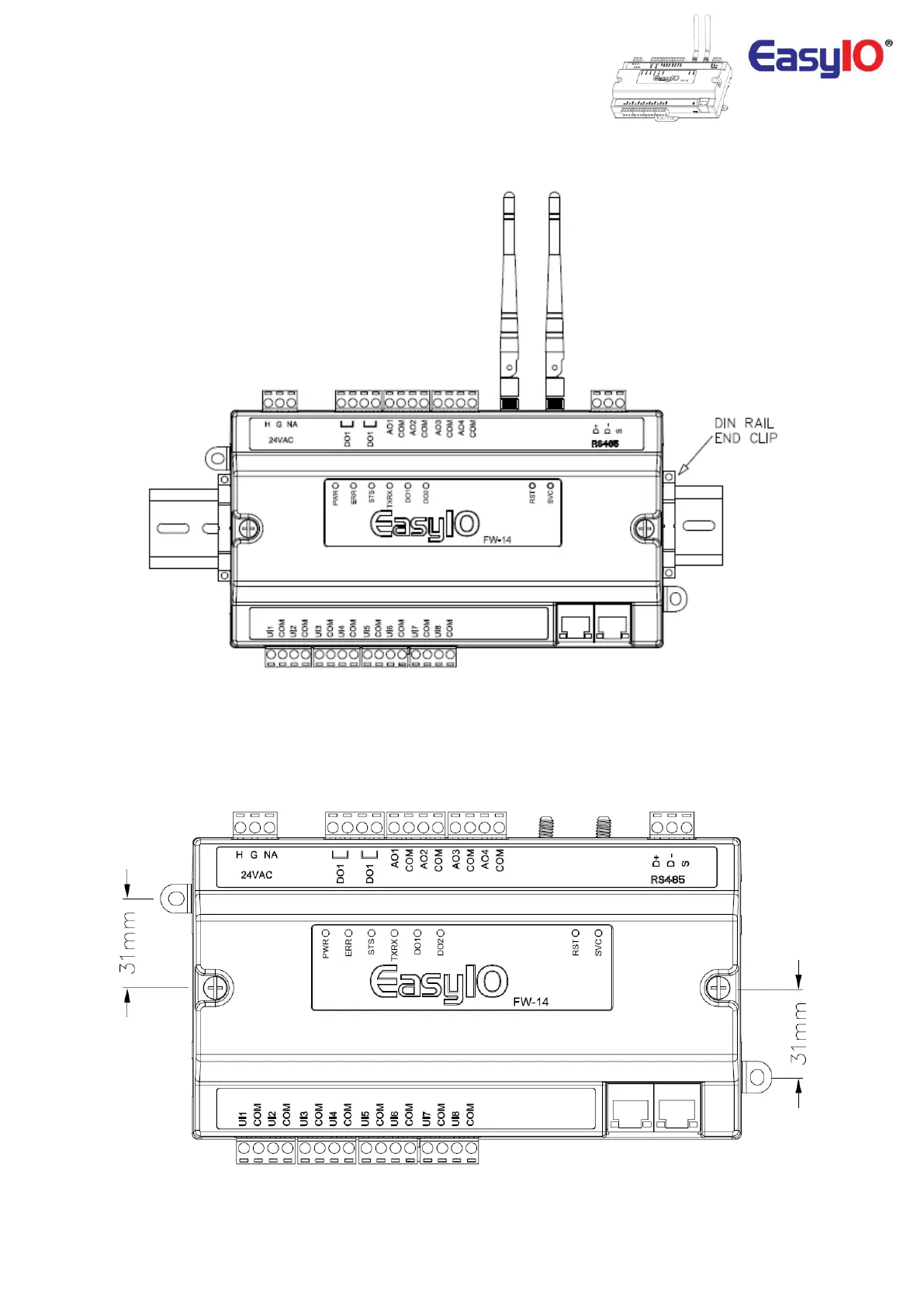

To keep the assembly secure a DIN rail end clip can be use.
Image shows a typical “DIN rail end clip(end stopper)”
The EasyIO FW Series comes with 2 mounting holes as optional mounting. Occasionally if DIN rail
mounting is not practical, you can use screws to mount the EasyIO FW Series to an enclosure base plate.
