EasyIO FW-14– Installation Guide v1.0
11
FW-08 , FW-08V

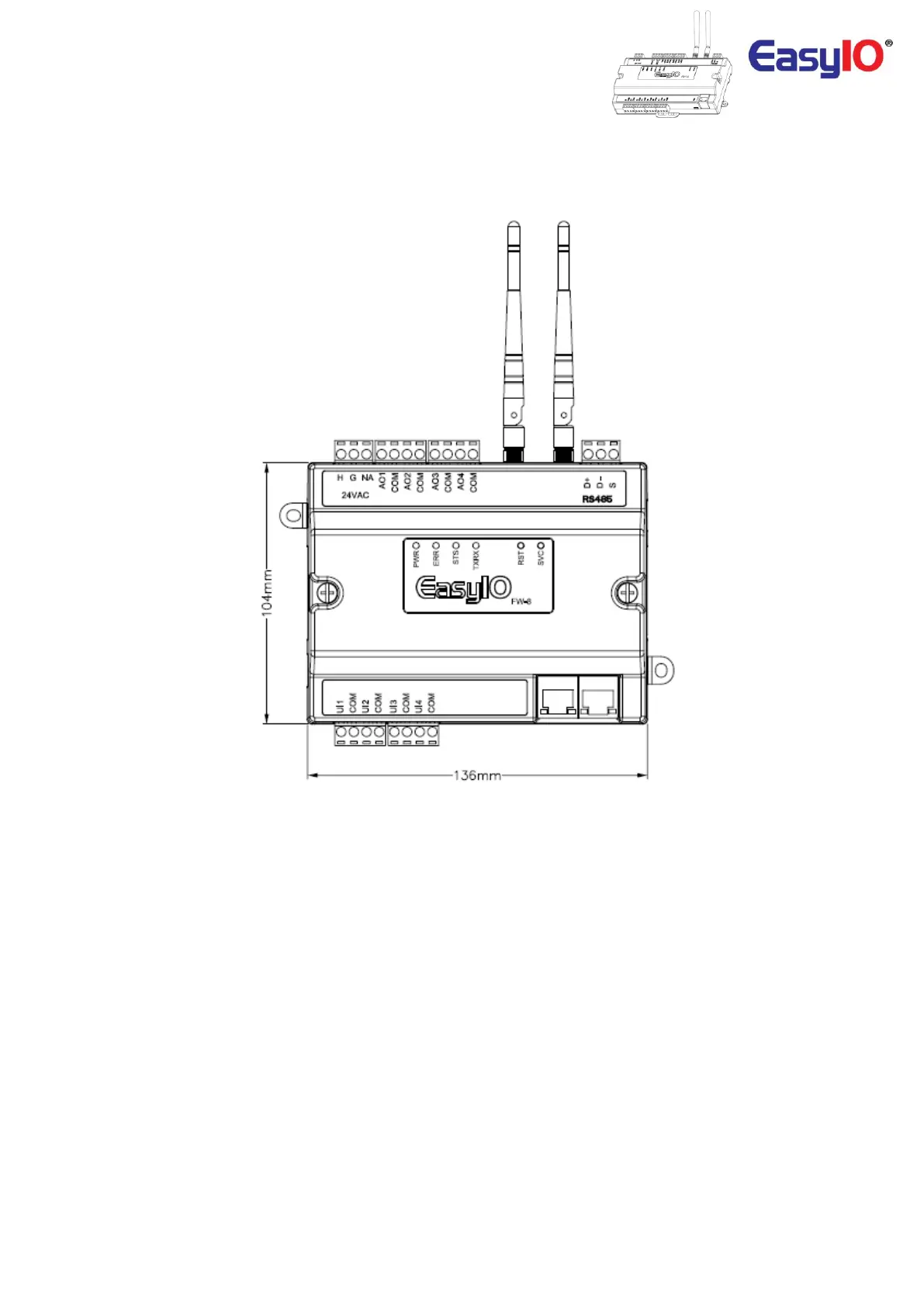

Below are the dimensions FW-08 and FW-08V.
Both models dimension are identical.
Top View. Width including terminal block connectors is approx 124mm
