EasyIO FW Series Installation Guide

EasyIO FW-14– Installation Guide v2.0
13
Physical Installation Instructions
The procedure below is for FW-14 model.
The procedure is same for FW-08,FW-08V and FW-28.

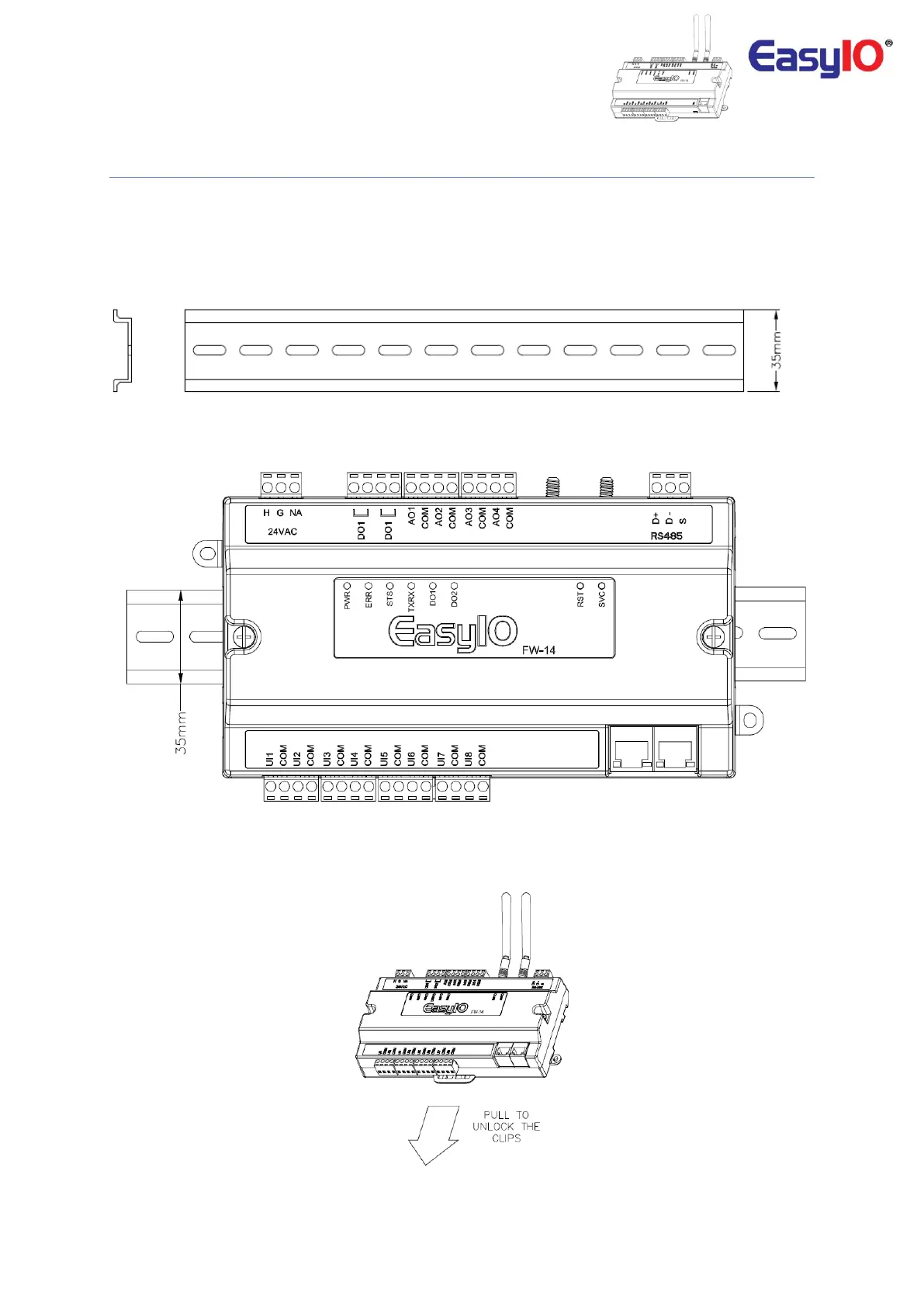

Step 1
Securely fasten the DIN rail to the enclosure base plate.
Typical industrial DIN rail, 35mm
Step 2
Use a screwdriver to unlock the 2 numbers of locking clips.
