EasyIO FW-14– Installation Guide v2.0
14
Step 3

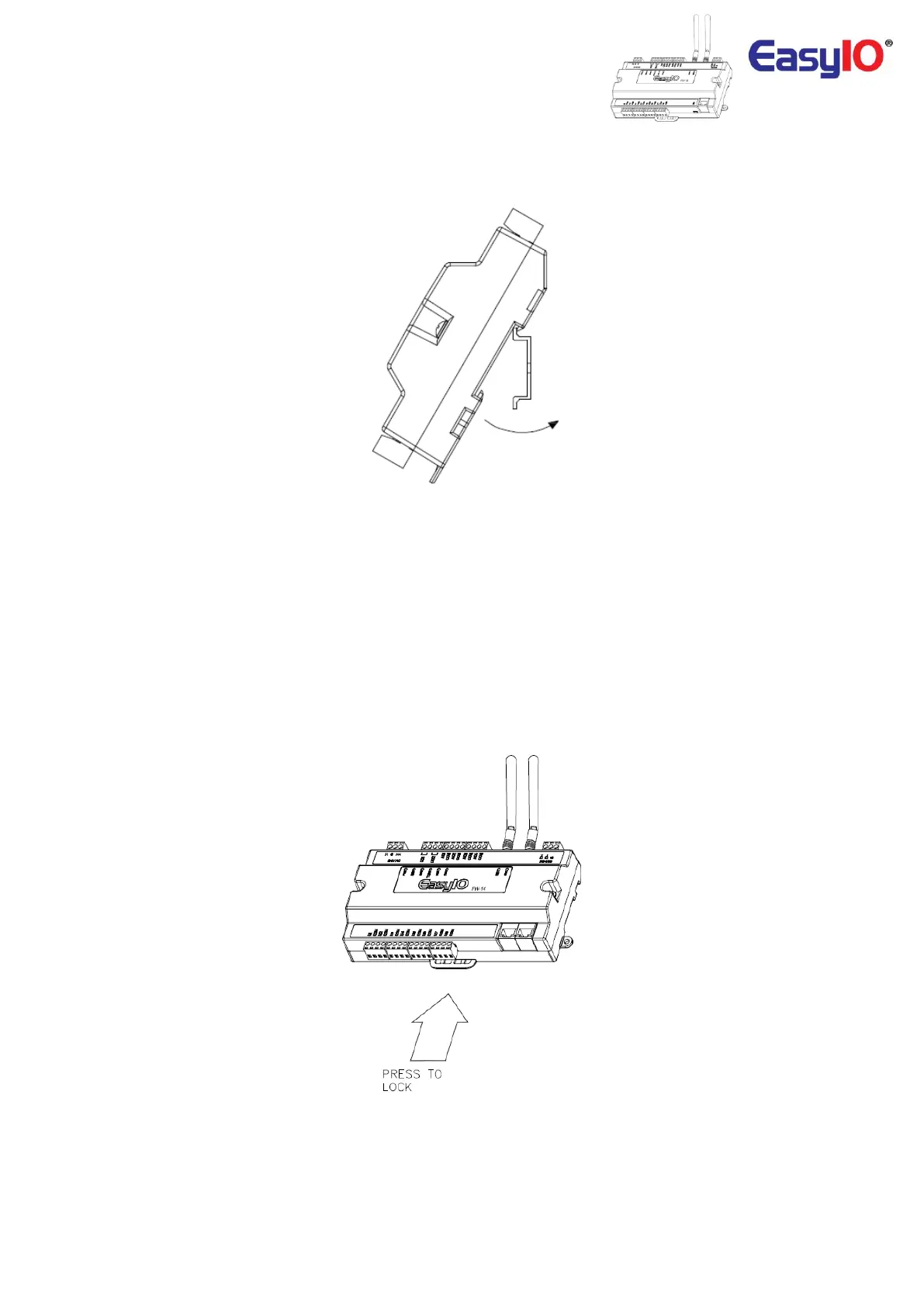

Position the EasyIO FW Series on the DIN rail mount till it hooks over the top edge of the DIN rail.
Push the controller towards the bottom part of the DIN rail
Step 4
Press/flatten the EasyIO FW Series to make sure the bottom of the base cover touches the enclosure base
plate.
Step 5
Use a screwdriver to lock the locking clips to secure the EasyIO FW Series to the DIN rail.
