Eaton 380 VCP-W 16 - Drawout Circuit Breaker (Bottom View)

I.B. 3A74792H08 Page 21
Effective 09/2014

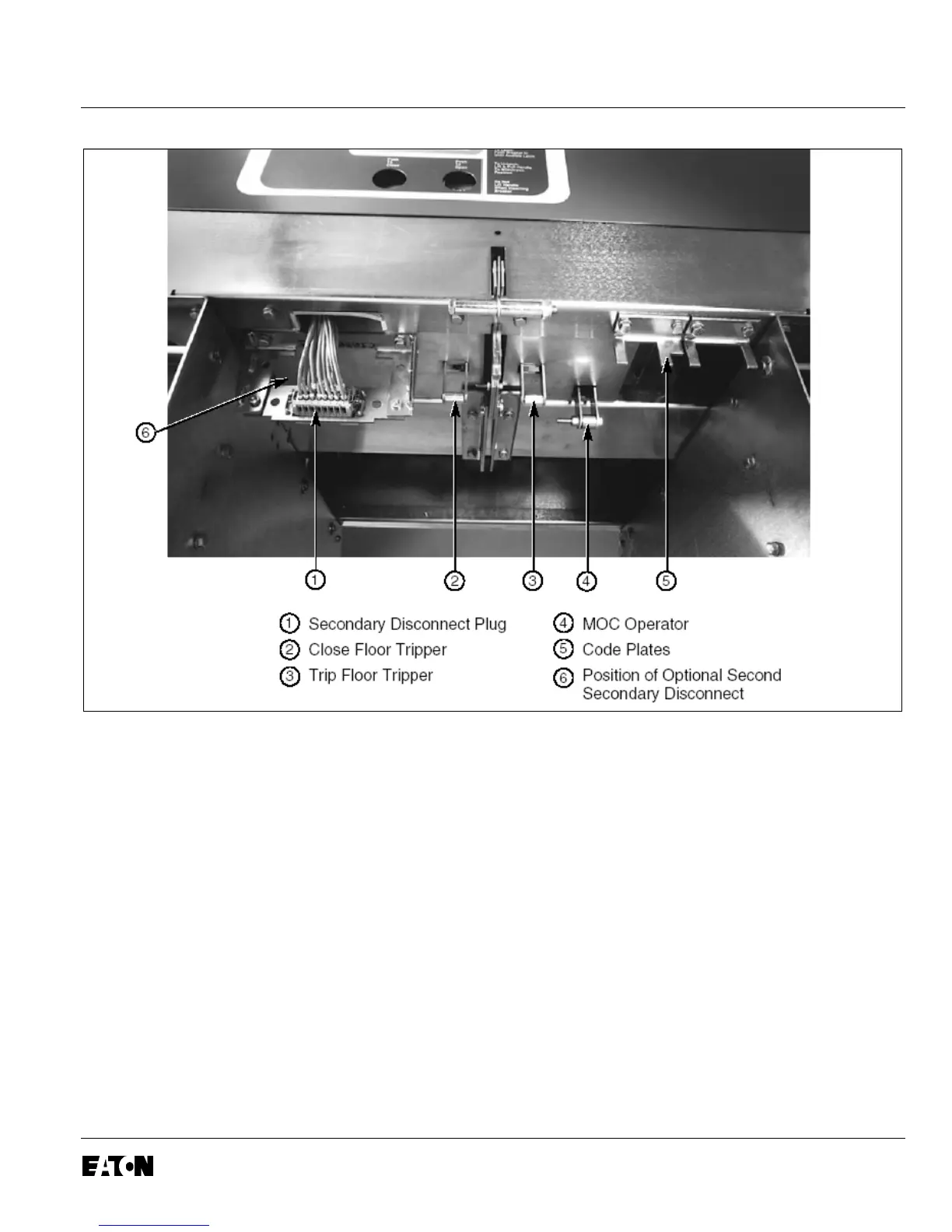

Figure 4-2 Drawout Circuit Breaker (Bottom View)
Manually engage the secondary contacts and the motor
will charge the closing springs. Close the circuit breaker
and begin to remove the circuit breaker to the WITH-
DRAWN position by lifting and pulling on the Lift/Pull
handle. The circuit breaker will trip, close and trip as it
moves from the TEST position.
The suggested combination of interface checks outlined in
the circuit breaker manual and structural assembly manual
are intended to verify sage and proper operation. If
observed conditions are not as described, contact Eaton
for assistance.
