Eaton 380 VCP-W 16 - Typical VCP-WR DC and AC Control Schematics (Fixed)

Eaton 380 VCP-W 16
62 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
I.B. 3A74792H08 Page 29
Effective 09/2014

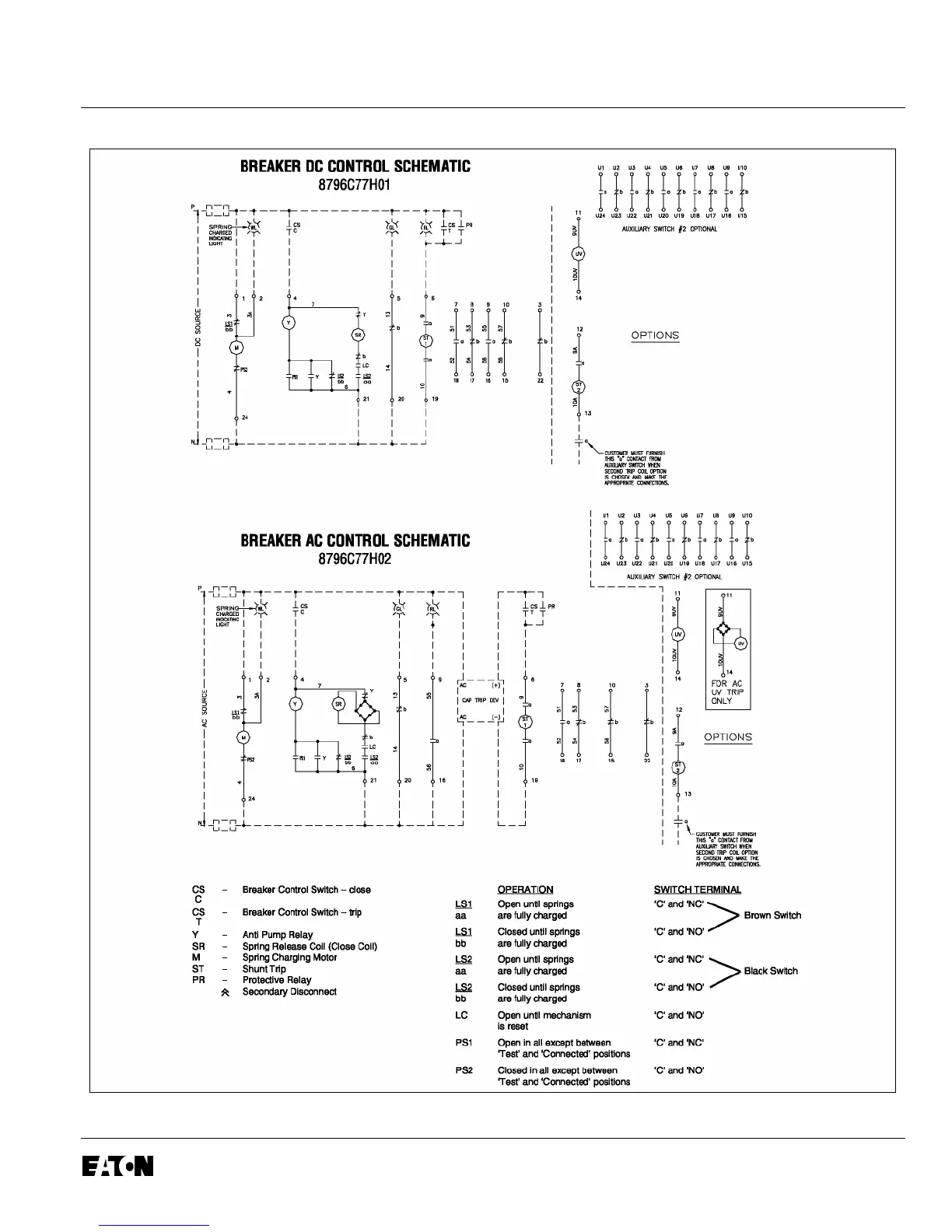

Figure 5-7 Typical VCP-WR “DC” and “AC” Control Schematics (Fixed)
