26.1 ISA Sequences
To dene a sequence the user can simply select any of the listed ISA sequences on a per channel
basis using the dropdown menu as shown below.
The additional features shown i.e. Basic Sequence, First-Up Sequence and Sequence Options
are only visible when the user selects view-“Advanced” and these options are used for custom
sequences.
To implement changes the user must select the “Conrm” icon and download the
conguration to the SmartAlarm using the “Tools” menu – “Send Settings” as required
27 PB GROUPS
The following settings are available under the “PB Groups” tab.
27.1 Global Pushbutton Group

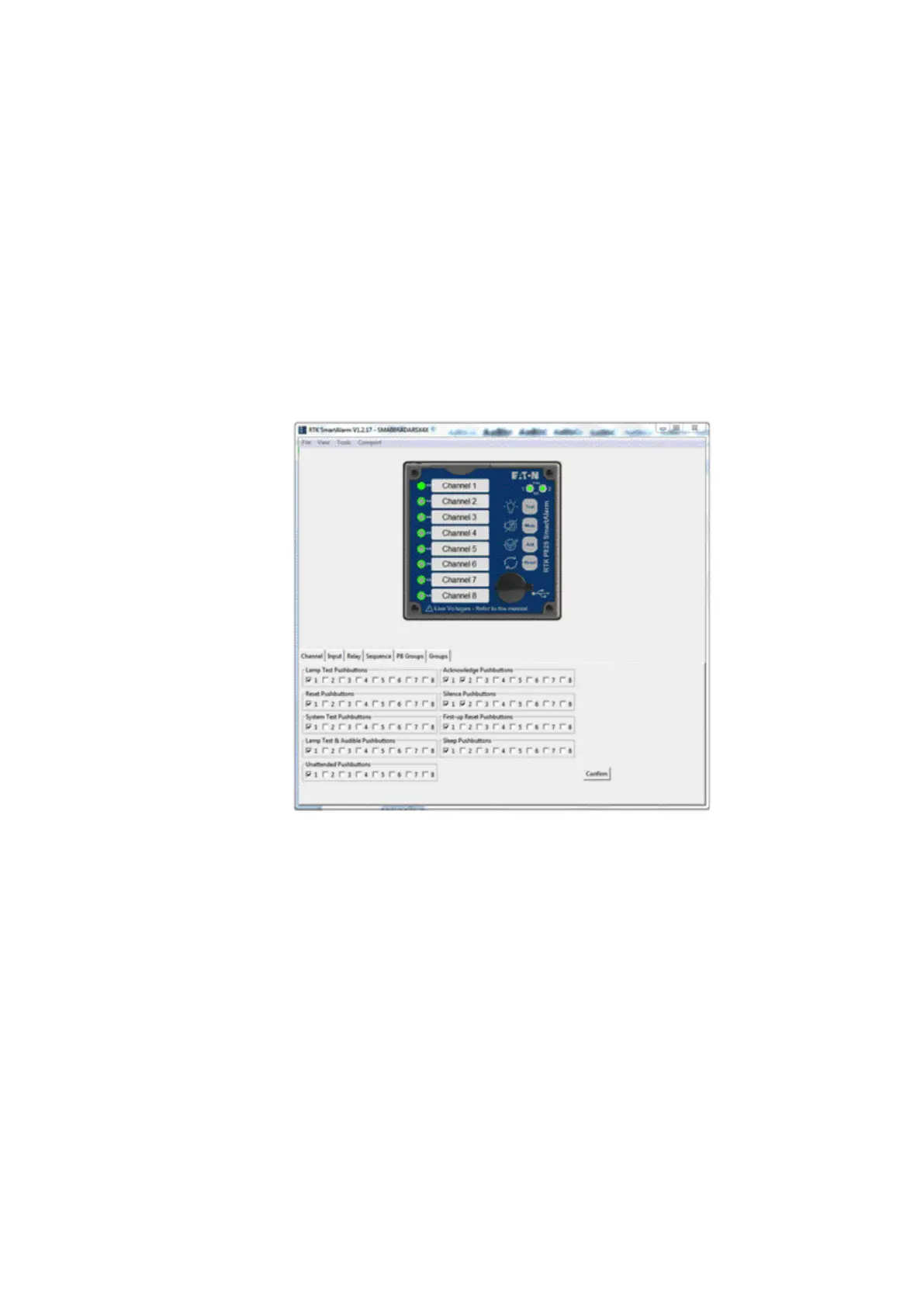

Pushbutton functions are available within the SmartAlarm to test or control the alarms in
accordance ISA-S18.1 Alarm Sequences.
In standard applications all channels are assigned to pushbutton group-1 however, the user can
enable or disable any of the functions on a per channel basis as required.
27.2 Multiple Pushbutton Groups
In more complex applications each channel can be assigned to any one of 8 pushbutton groups. To
access the additional groups the user must select “View” followed by “Advanced” view.
As a default Pushbutton Group-1 is assigned to the internal pushbuttons and any additional
pushbutton groups would require the use of external pushbuttons.
To implement changes the user must select the “Conrm” icon and download the
conguration to the SmartAlarm using the “Tools” menu – “Send Settings” as required
