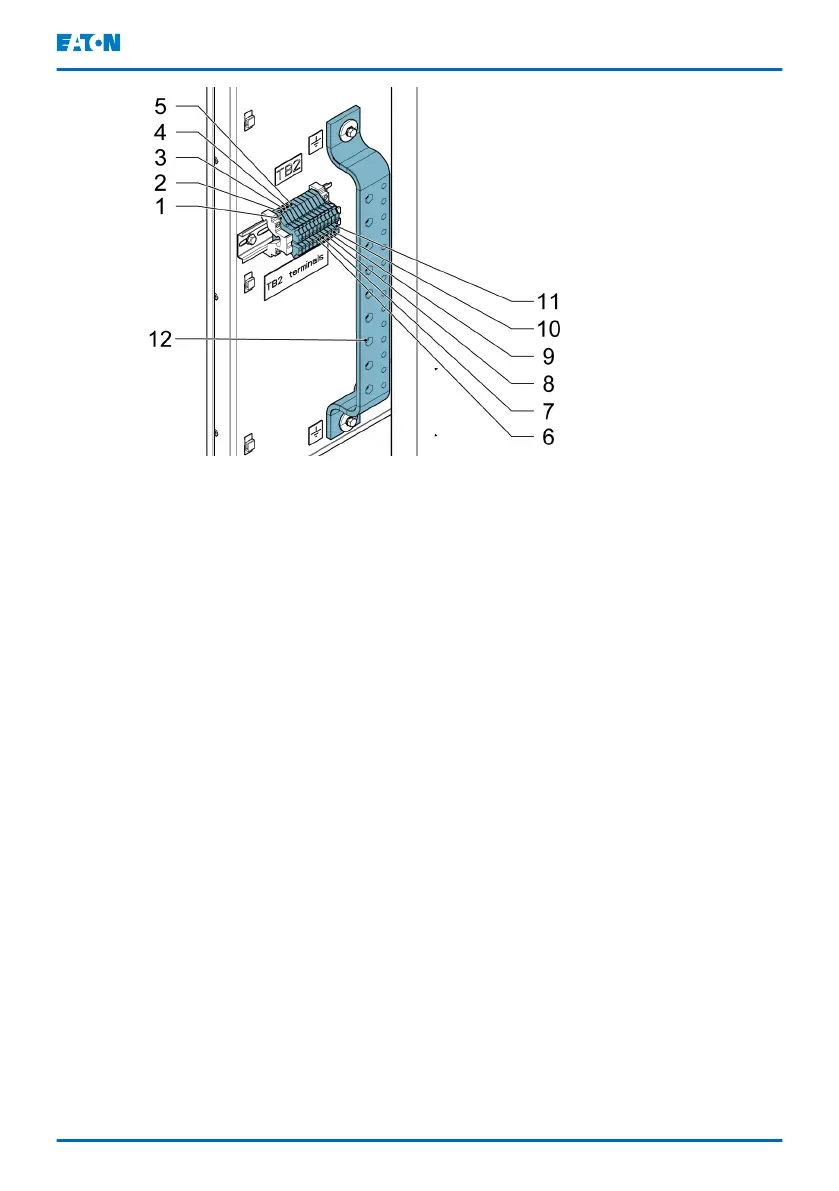

Figure 11. EBC-G terminal block TB2
1
+24V, battery shunt trip cable from UPS 7 DET, from another EBC if daisy-chained
2 TRIP, battery shunt trip cable from UPS 8 GND, from another EBC if daisy-chained
3 DET, battery shunt trip cable from UPS 9 No functions
4 GND, battery shunt trip cable from UPS 10 Temperature monitor 1
5 +24V, battery shunt trip cable from another
EBC if daisy-chained
11 Temperature monitor 2
6 TRIP, battery shunt trip cable from another
EBC if daisy-chained
12 Protective bonding
