Eaton Cutler-Hammer Quick Start Instructions

Step 3: The Voltage Selector Plug is shipped in the
600Vac position. Move the Selector Plug to the appro-
priate position prior to energizing the switch. Make sure
the selector switch, on the Device Panel, is in the
“Source 1” position. Apply Utility (Source 1) Power. If
the switch is properly applied for the system voltage
selected, the “Source 1” Available Light, and “Source 1”
Connected Light should illuminate (Figure 5). Using a
voltmeter, check for proper system voltage on the nor-
mal and load terminals. Check all phases on a three-
phase switch. Voltage measurements should be taken
phase to phase and phase to neutral.
IM01602002E
For more information visit: www.cutler-hammer.eaton.com
Instruction Leaflet
Page 3
Effective: June 2003
Non-Automatic
Transfer Switch
Quick Start Instructions

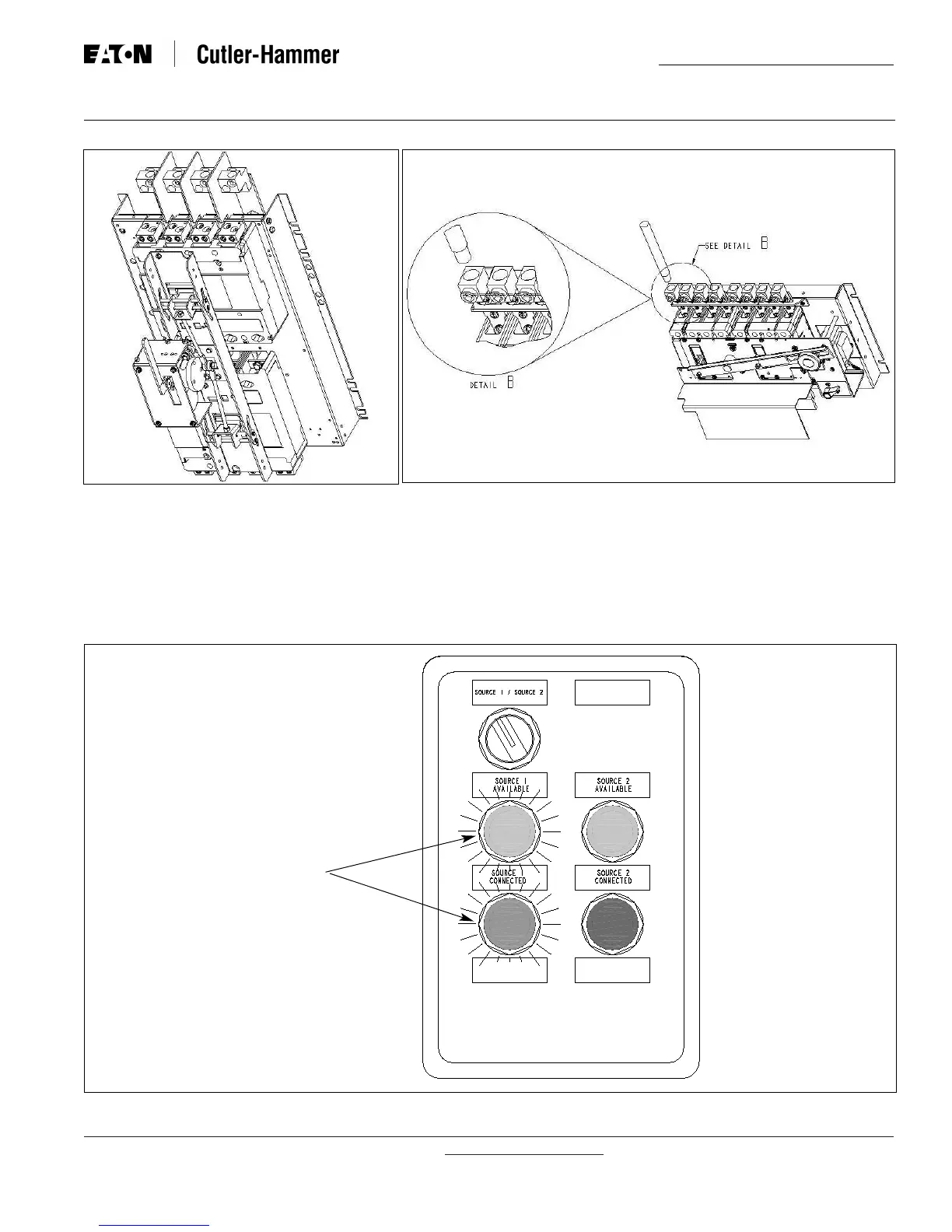

Figure 3 Vertical Power Panel Figure 4 Horizontal Power Panel
Figure 5 Non-Automatic Device Panel
The following lights must be ON:
● Source 1 Available
● Source 1 Connected
