Eaton DS-632 series - Left Side of Breaker with Levering Device Arm in REMOVE Position; DS 416 Breaker with Front Panel Removed; Right Side Showing Levering Device Arm in TEST Position; Rear View Showing Levering Device Arm in CONNECT Position

11
Instruction Booklet IB 33-790-1J
Effective November 2010
Instructions for Low Voltage Power
Circuit Breakers Types DS and DSL
EATON CORPORATION www.eaton.com

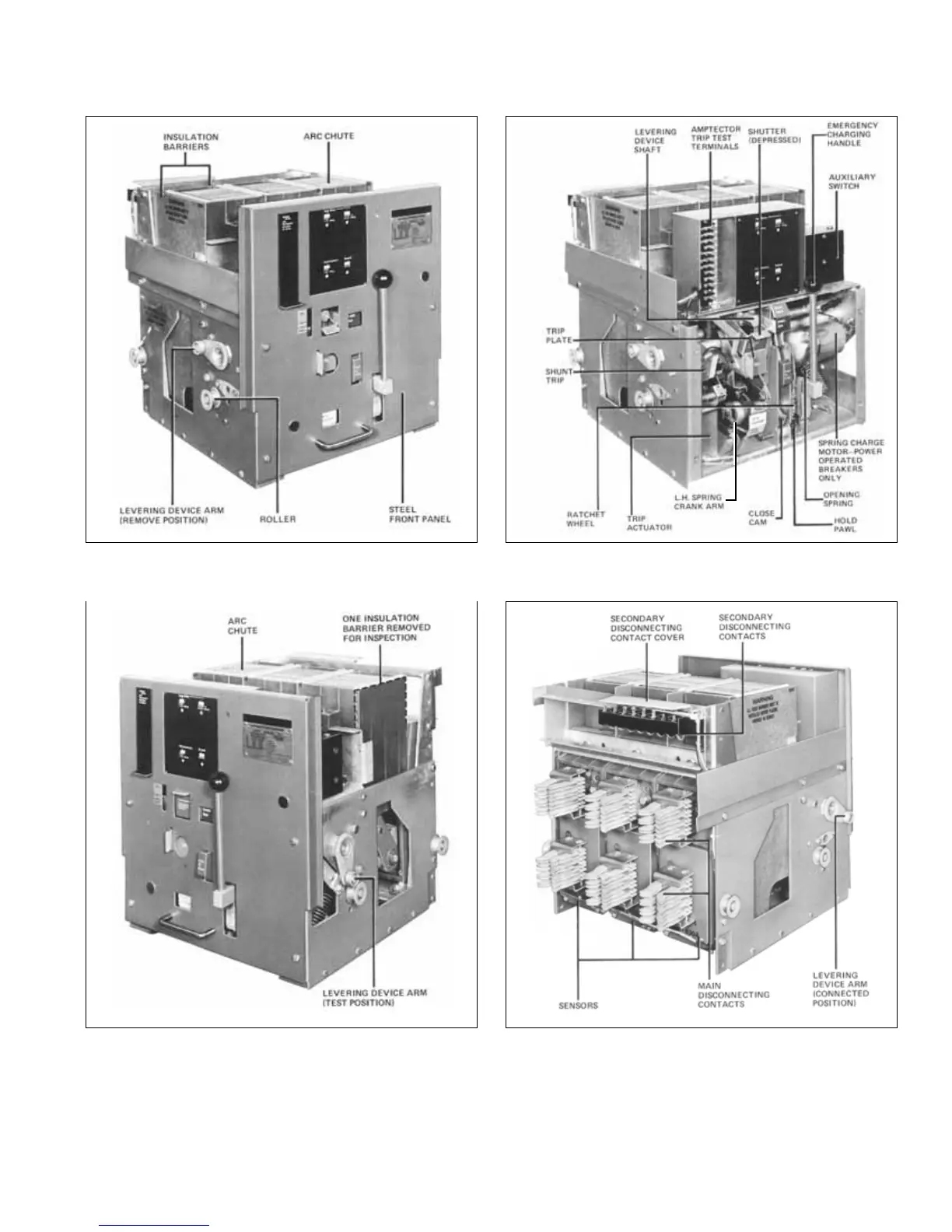

Fig. 6a Left Side of Breaker with Levering Device Arm in
REMOVE Position.
Fig. 6b DS 416 Breaker with Front Panel Removed.
Fig. 7 Right Side Showing Levering Device Arm in TEST
Position.
Fig. 8 Rear View Showing Levering Device Arm in
CONNECT Position.
