Eaton DSII Series - DSII-632 Contacts and Adjustments

are made of material that are affected to the minimum by
repeated operations and normally encountered atmospheric
temperature and contaminant conditions.
There are a few adjustments made at the factory and are
subjected to quality control inspection and test. These fac-
tory settings can normally be expected to hold for the life of
the breaker.
Factory settings adjustments should only be necessary
when parts are reassembled after dismantling, as described
in Paragraphs 5-5.1 and 5-5.2.
Maintenance adjustments should be made as indicated on
maintenance inspections and are described in Paragraph
5-5.3.

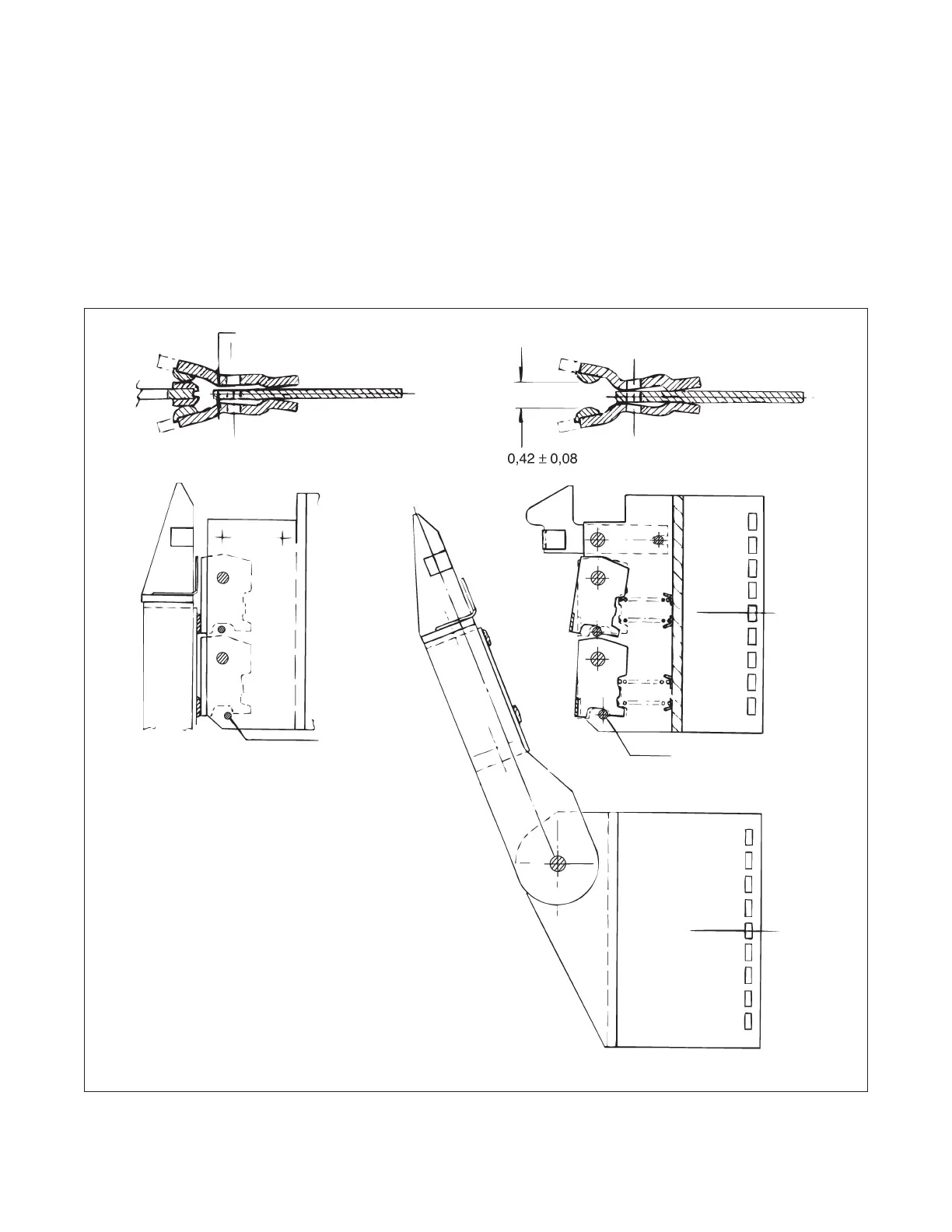

Dimension A
.020 Minimum Both Sides
Dimension C
Breaker Closed
Breaker Open
Pin X
Breaker Closed
Breaker Open
Figure 5-3 DSII-632 Contacts and Adjustments
Effective July 2010
Instructional Book IB694C694-03
55
EATON CORPORATION www.eaton.com
Pin X
