Eaton EASY-E4 E1(P) Series User Manual

08/21 IL050021ZU
2/8

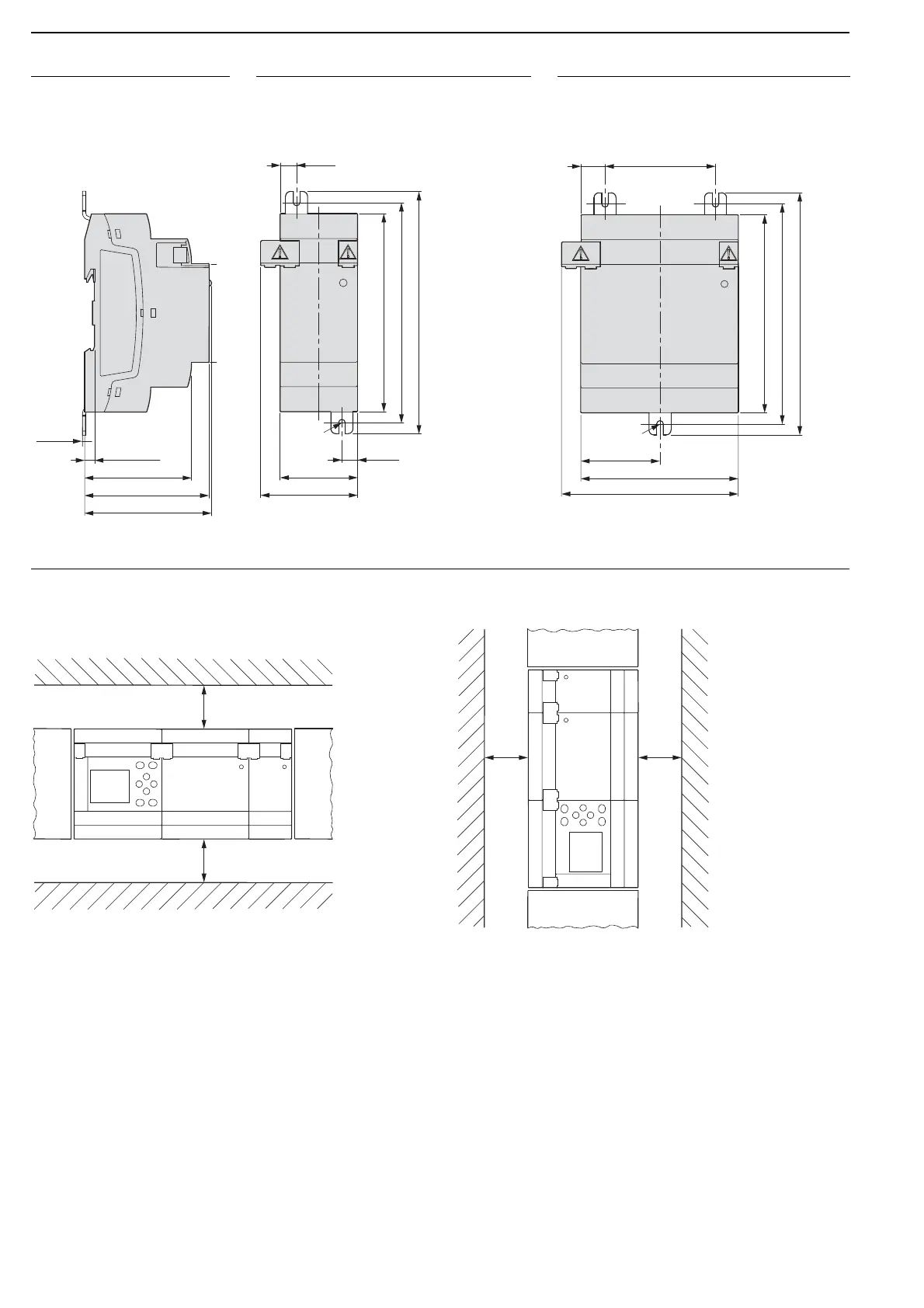

Dimensions
Mounting position
EASY-E4-..-…E1(P)
+
ZB4-101-GF1
EASY-E4-…-8…E1(P)
EASY-E4-DC-6AE1(P)
EASY-E4-DC-4PE1(P)
+
ZB4-101-GF1
EASY-E4-…16…E1(P)
+
ZB4-101-GF1
4.5 mm (0.18")
48.5 mm (1 .91")
56.5 mm (2.22")
57.6 mm (2.27")
1 mm (0.04")
7.5 mm
(0.3")
7.5 mm
(0.3")
90 mm (3.54")
101 mm (3.97")
111 mm (4.37")
M 4,5
35.0 mm (1.38")
43.8 mm (1.72")
71.5 mm (2.81")
10.75 mm
(0.42")
35.75 mm (1.41")
80.3 mm (3.16")
90 mm (3.54")
M 4,5
50 mm (1.97")
101 mm (3.97")
111 mm (4.37")
> 30 mm
(> 1.2")
> 30 mm
(> 1.2")
> 30 mm
(> 1.2")
> 30 mm
(> 1.2")

Eaton EASY-E4 E1(P) Series Specifications

General

Protection class	IP20
Mounting	DIN rail
Display	Yes, LCD
Operating temperature	-25°C to +55°C
Terminal type	Screw terminal
Storage temperature	-40°C to +70°C
