Eaton EASY-E4 E1(P) Series User Manual

08/21 IL050021ZU
5/8

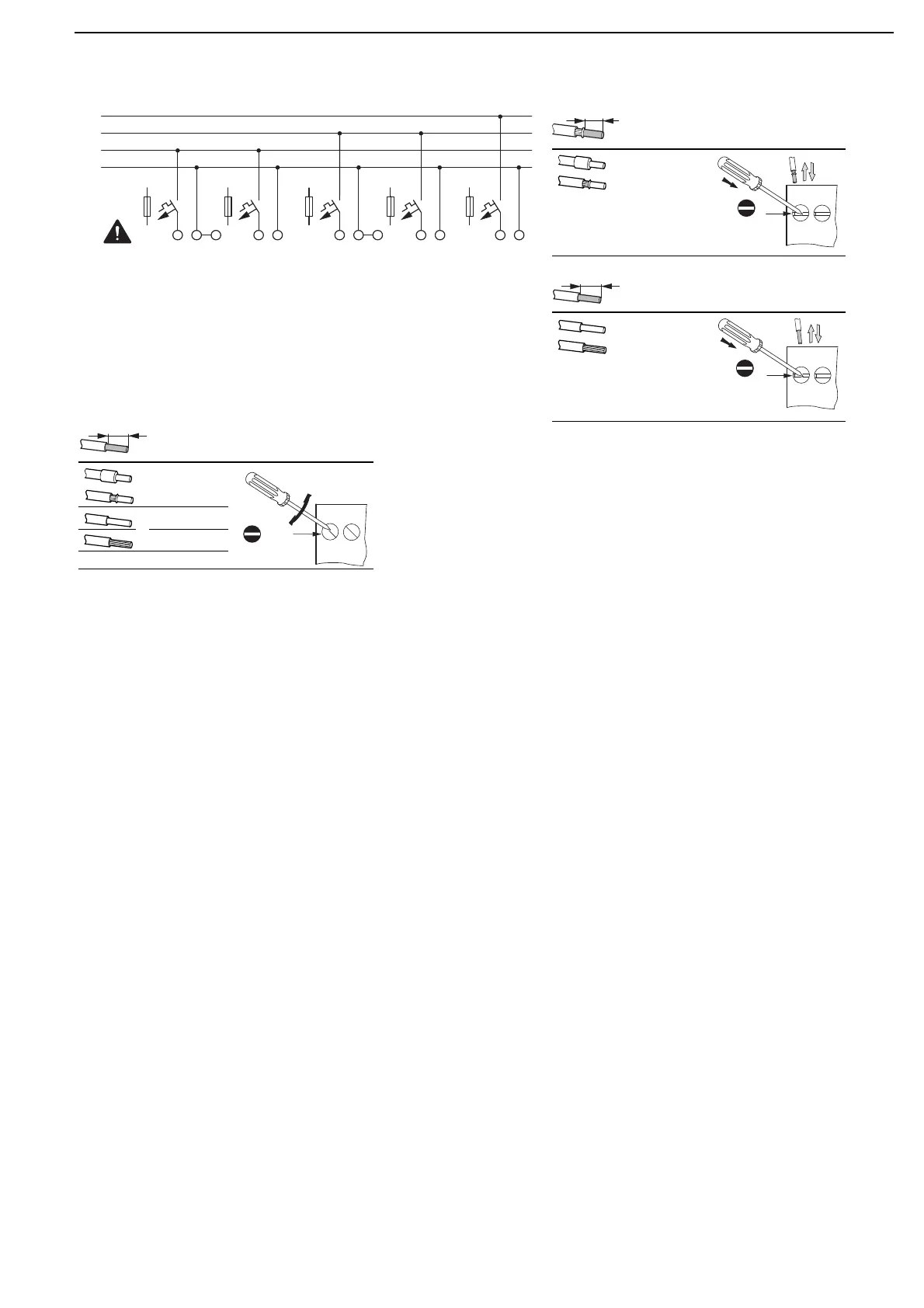

Power supply
EASY-E4-...-..E1P
EASY-E4-...-..E1
12, 24 V DC/24 V AC
24 V DC
UC:
DC:
0 V/ N
F1 > 1 A
+24 V 0 V +24 V 0 V + UC 0 V + UC 0 V
EASY-E4-DC-8TE1(P) EASY-E4-DC-6AE1(P) EASY-E4-UC-8RE1(P) EASY-E4-DC-16-TE1(P) EASY-E4-UC-16RE1(P)
LN
EASY-E4-AC-8RE1(P) EASY-E4-AC-16RE1(P) EASY-E4-DC-4PE1(P)
AC:
100 - 240 V AC/DC (cULus 100 - 110 V DC)
L
Ue
8 mm (0.31“)
0.25 - 1.5 mm
2
0.4 x 2.5 mm
8 mm (0.31“)
0.2 - 2.5 mm
2
AWG 24 - 14
0.4 x 2.5 mm
6.5 mm (0.26“)
0.2 - 2.5 mm
2
0.2 - 4 mm
2
0.2 - 2.5 mm
2
AWG 22 - 12
0.5 - 0.7 Nm
3.5 mm

Eaton EASY-E4 E1(P) Series Specifications

General

Protection class	IP20
Mounting	DIN rail
Display	Yes, LCD
Operating temperature	-25°C to +55°C
Terminal type	Screw terminal
Storage temperature	-40°C to +70°C
