Eaton EASY-E4 E1(P) Series User Manual

08/21 IL050021ZU
7/8

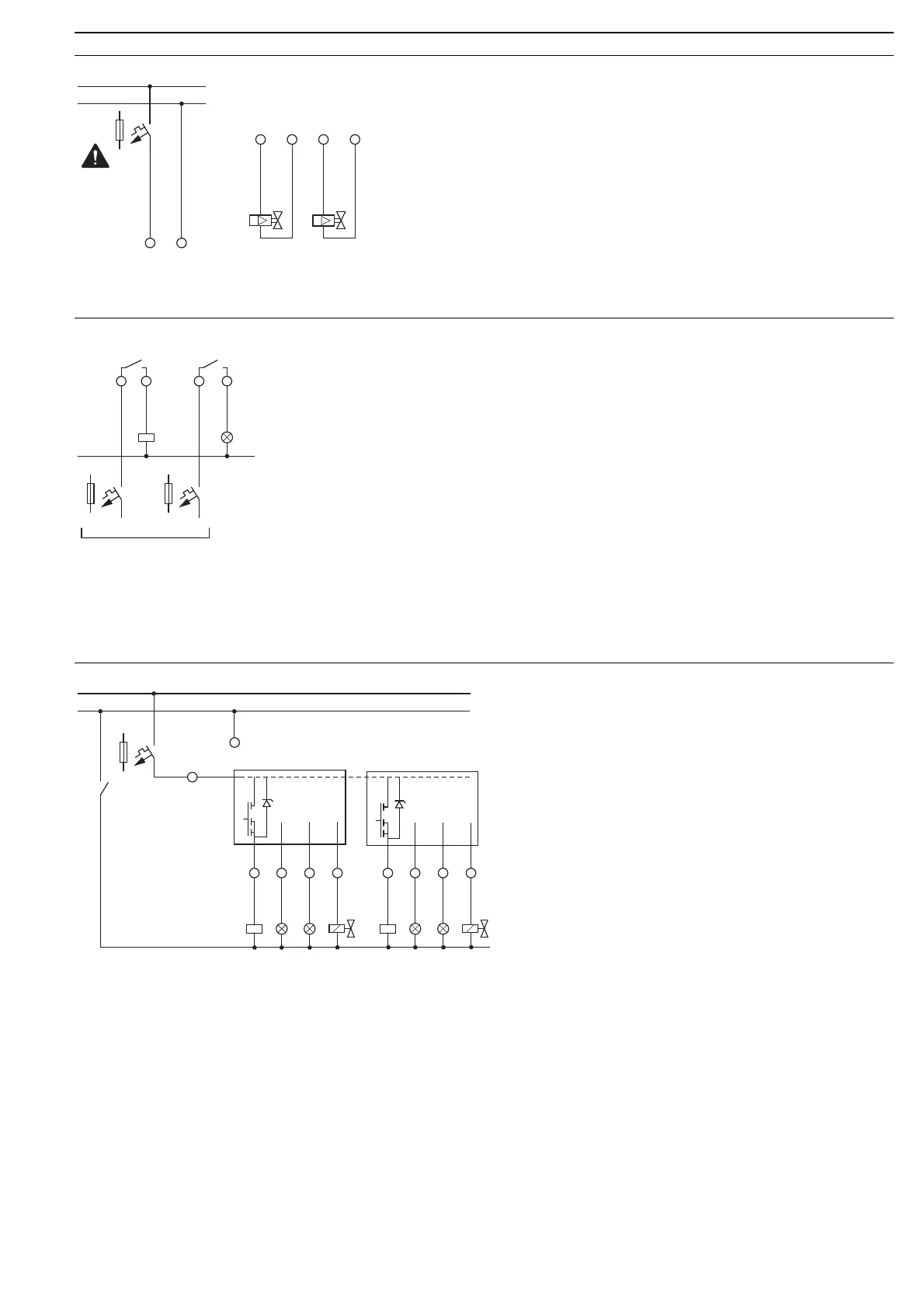

Outputs
Analog outputs
Relay outputs
EASY-E4-UC-16RE1(P)
EASY-E4-UC-8RE1(P)
EASY-E4-AC-16RE1(P)
EASY-E4-AC-8RE1(P)
Transistor outputs
0 V+ 24 V
QA1
QA2
EASY-E4-DC-6AE1(P)
GND
GND
0 - 10 V
4 - 20 mA
0 - 20 mA
0 - 10 V
4 - 20 mA
0 - 20 mA
+24 V DC
0 V
F1 > 1 A
Q1 Qn
1
2
0 V/N
L1, L2, L3/24 - 250 V AC
12 - 220 V DC
12
Q4Q3Q2Q1 Q8Q7Q6Q5
+24 V
EASY-E4-DC-8TE1(P) EASY-E4-DC-16TE1(P)
EASY-E4-DC-16TE1(P)
F2 ≧ 2.5 A
+24 V DC
0 V
EASY-E4-DC-8TE1
F2 ≧ 5 A
EASY-E4-DC-16TE1
0 V

Eaton EASY-E4 E1(P) Series Specifications

General

Protection class	IP20
Mounting	DIN rail
Display	Yes, LCD
Operating temperature	-25°C to +55°C
Terminal type	Screw terminal
Storage temperature	-40°C to +70°C
